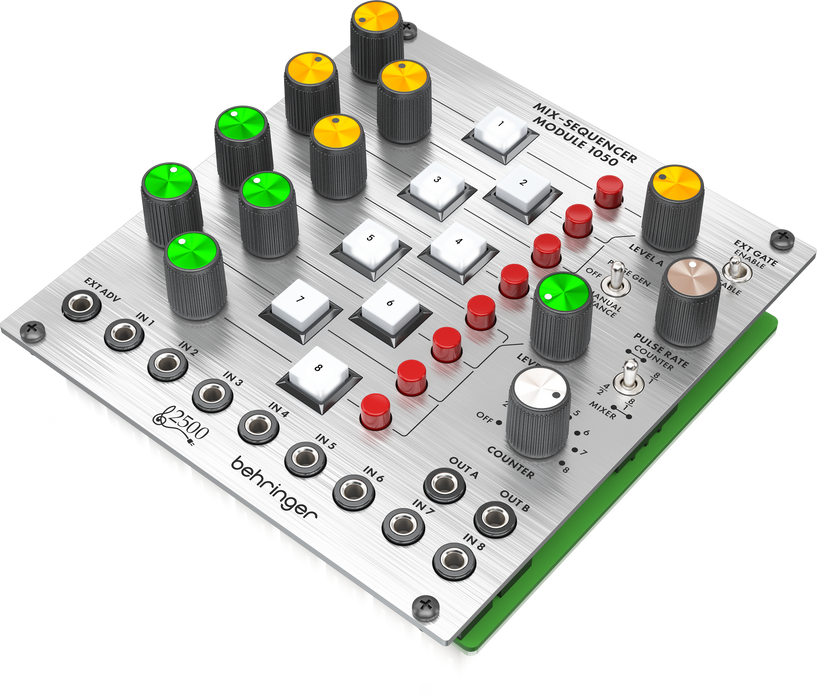

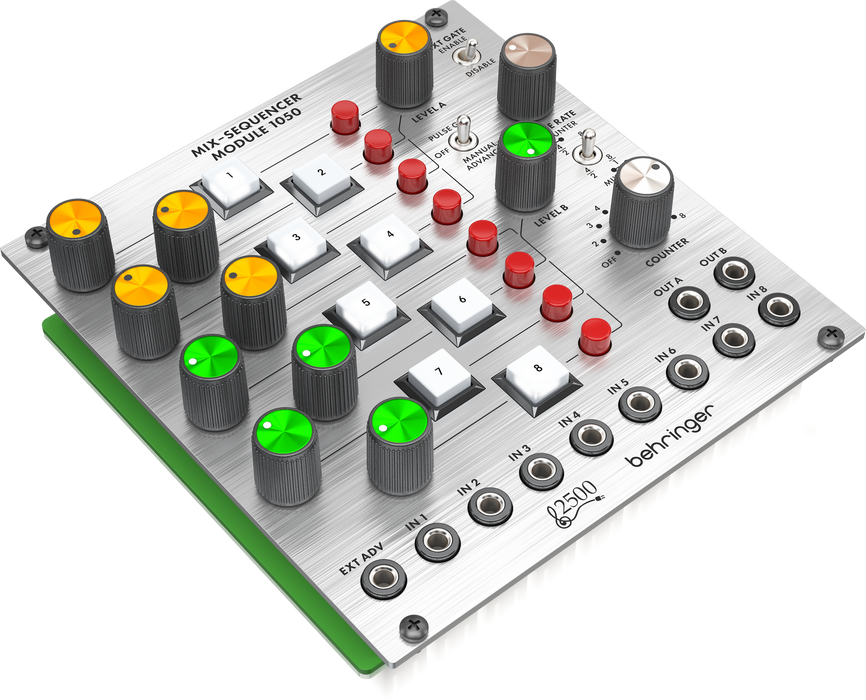

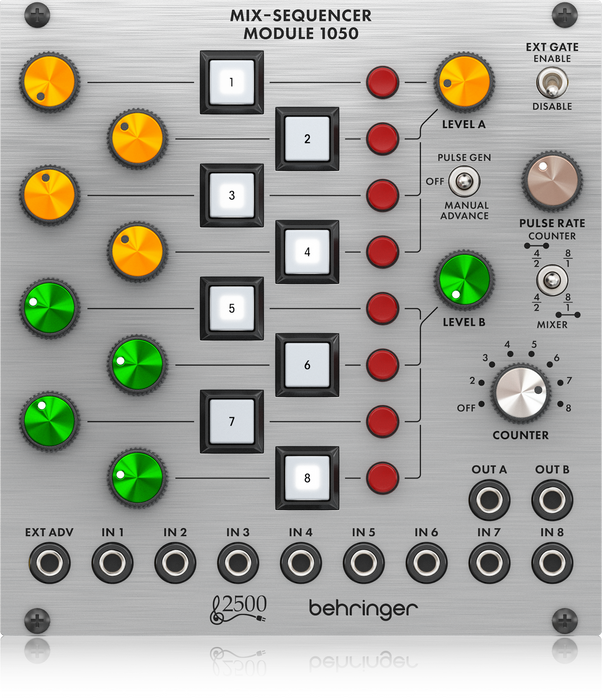

Behringer 1050 Mix Sequencer Module

A faithful re-creation of a unit from a legendary 1970s modular synthesizer, the Behringer 1050 Mix-Sequencer brings on-the-fly mixing and sequencing to your Eurorack rig. Featuring eight inputs and dual outputs, the Behringer 1050 lets you quickly select and mix audio sources and offers a dedicated attenuator knob for each channel and an Exclusive-On button for soloing channels. When used as a sequencer, the 1050 allows you to choose between a single 8-step sequencer or a dual 4-step sequencer operation, and you can control the sequence tempo via the pulse rate knob. Synthesists at Music Bliss also enjoy pairing the 1050 with the Behringer 1027 Clocked Sequential Control Module for generating more complex sequences. Whether you’re new to Eurorack or a seasoned modular wizard, the Behringer 2500 series, including the 1050 Mix-Sequencer, presents an affordable way to conjure up classic synths sounds with the convenience and flexibility of Eurorack.

FEATURES

• Authentic reproduction of a legendary modular synth unit
• Dual-use as an audio mixer and sequencer
• Each channel equipped with an attenuator knob and Exclusive-On solo button
• Choose between single 8-step sequencer or dual 4-step sequencer operation
• Control the sequence tempo via the pulse rate knob; select the number of steps with counter control
• Pairs well with the Behringer 1027 Clocked Sequential Control Module (sold separately)
• Size: 24HP wide; 42mm deep
• Power usage: 110mA (+12V), 20mA (-12V)

SPECIFICATIONS

• Type: Sequencer and Mixer Module
• Analog/Digital: Analog
• Sequencer: 8-step/Dual 4-step
• Analog Inputs: 8 x 1/8" TS
• Analog Outputs: 2 x 1/8" TS
• Other I/O: 1 x 1/8" TS (gate/clock in)
• Depth: 1.65" (42mm)
• HP Size: 24HP
• Power Usage: 110mA (+12V), 20mA (-12V)
• Power Supply: Requires Eurorack case and power supply
