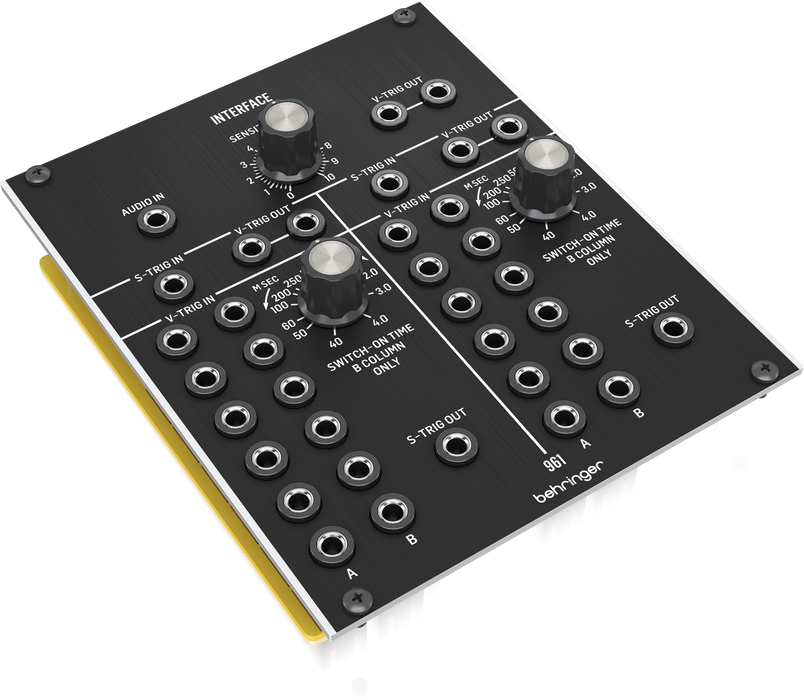

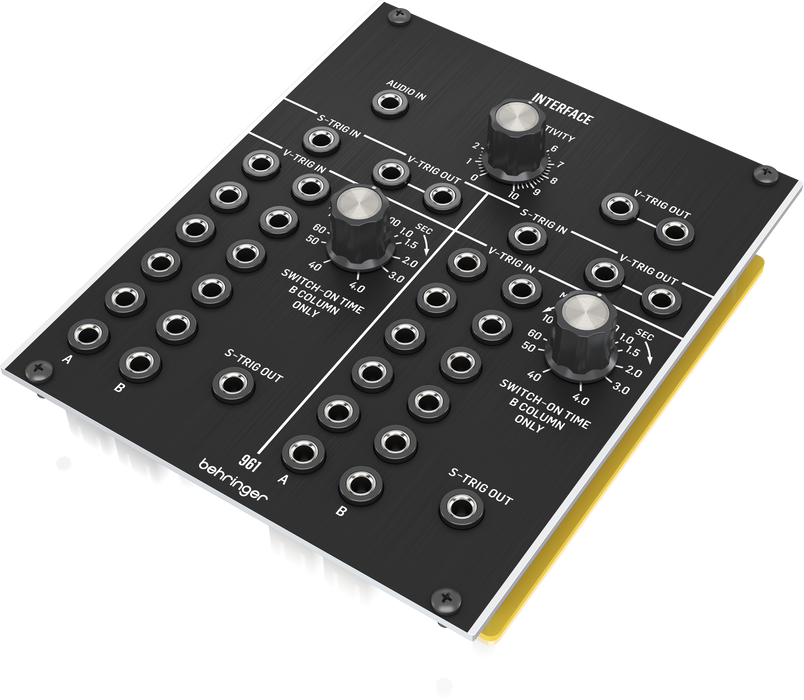

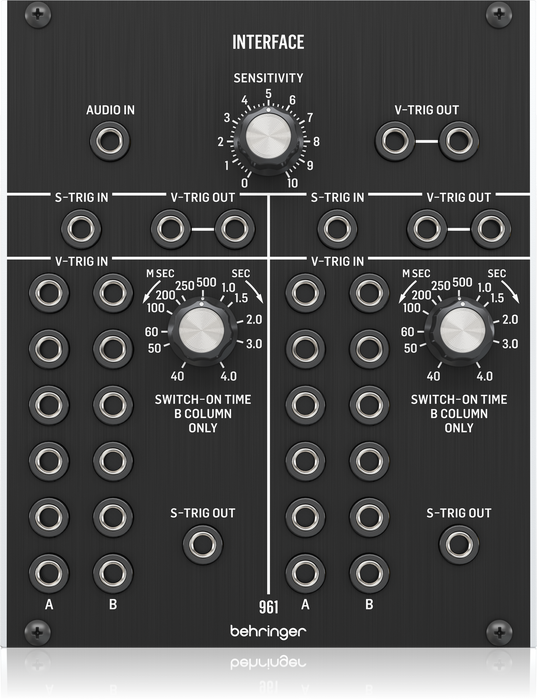

Behringer 961 Interface Analog Multi-channel Trigger Converter Eurorack Module

the Behringer 961 analog multi-channel trigger converter Eurorack module features all-analog discrete circuitry to deliver the authentic tone and behavior of the original unit. The 961 is a utility device that converts the vintage V-trigs to S-trigs for compatibility with other Behringer System 55 devices and third-party Eurorack modules. The 961 has 24 V-trig inputs split into two banks of two columns, marked A and B. It offers flexible control over input signal gain and the ability to manually set the length of time for a trigger’s “ON” duration on column B inputs. With the 961 installed in your Eurorack, you get to enjoy the historically accurate character of the original unit, with easy integration into your larger Eurorack ecosystem. Synthesists at Music Bliss have gone all-in on Eurorack, but we understand that it can seem like a costly venture. The Behringer System 55 modules, including the Behringer 961, are a great entry point to the world of Eurorack and an excellent way to expand your existing system, offering stellar synth tones at a comfortable price.

FEATURES

• Authentic reproduction of the circuitry from the "Modular 55" Series
• Artist roster includes world's most famous pop, rock and jazz musicians
• Dual multi-channel V-trig to S-trig converter
• Dual S-trig to V-trig converter
• Audio to V-trig converter
• Variable switch on delay controls for Column B V-trig inputs
• Control for setting audio sensitivity for V-trig conversion
• Eurorack specs: 21 HP, 50 mA +12 V

SPECIFICATIONS

• Type : Trigger Converter Eurorack Module
• Depth : 1.4" (35mm)
• HP Size : 21HP
• Power Usage : ±12V/50mA
• Power Supply : Requires Eurorack case and power supply
