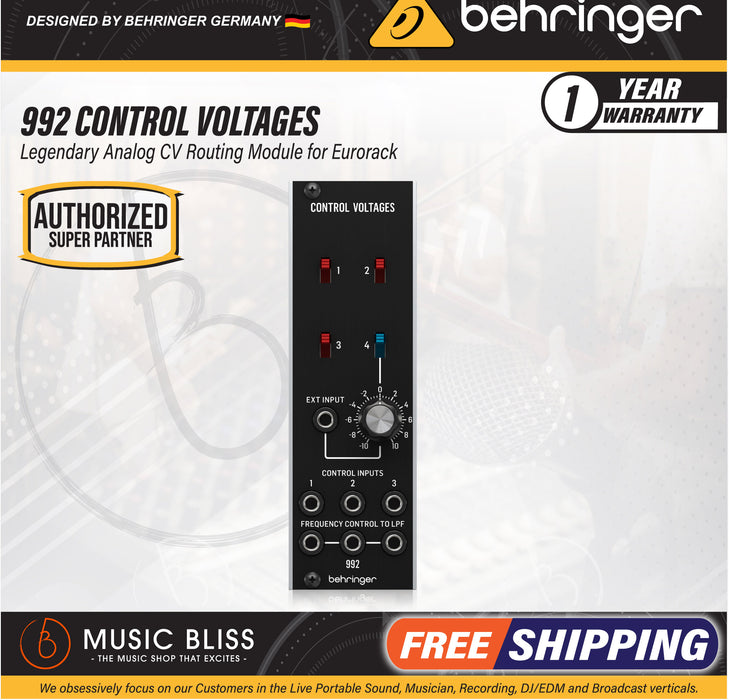

Behringer 992 Control Voltages Analog CV Routing Eurorack Module

The Behringer 992 is much more than a utilitarian module. At its most basic, it’s a CV router with three control inputs and three frequency control to lowpass filter outputs, selectable with front-panel switches. The control input signals are summed, and that’s where things get interesting. By combining CVs, you can start crafting incredibly complex waveshapes, from musical undulations to unpredictable modulated chaos. And, by routing the summed signals to multiple filters or other CV-controllable modules, the 992 gives you the power to develop synth tones with stunning depth and dimension. As a cherry on top, the 992 includes an attenuverter for scaling or inverting an external CV signal. Turning the knob clockwise adjusts the CV level from 0 to 10 (unity gain); turning counter-clockwise adjusts the CV level from 0 to -10 (also unity gain). Packed into a slim 8HP footprint, the 992 slots nicely into any Eurorack system, and, once you patch it in, you’ll wonder how you lived without it!

FEATURES

• Authentic reproduction of the circuitry from the "Modular 55 & 35" Series
• Artist roster includes world's most famous pop, rock and jazz musicians
• 4-channel CV signal routing to 904A LPF module
• Single external input with inverting attenuator control
• 3 switched and summed CV inputs for frequency control of VCF modules
• 3 parallel CV outputs can drive multiple 904A LPF and 904B HPF modules
• Eurorack specs: 8 HP, 10 mA +12 V, 10 mA -12 V

SPECIFICATIONS

• Type : CV Router Eurorack Module
• Depth : 1.6" (40mm)
• HP Size : 8HP
• Power Usage : ±12V/10mA
• Power Supply: Requires Eurorack case and power supply
