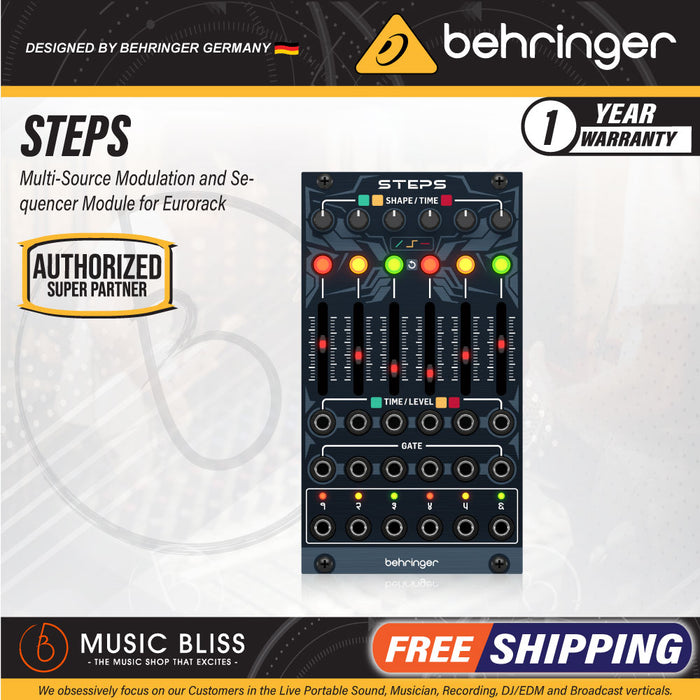

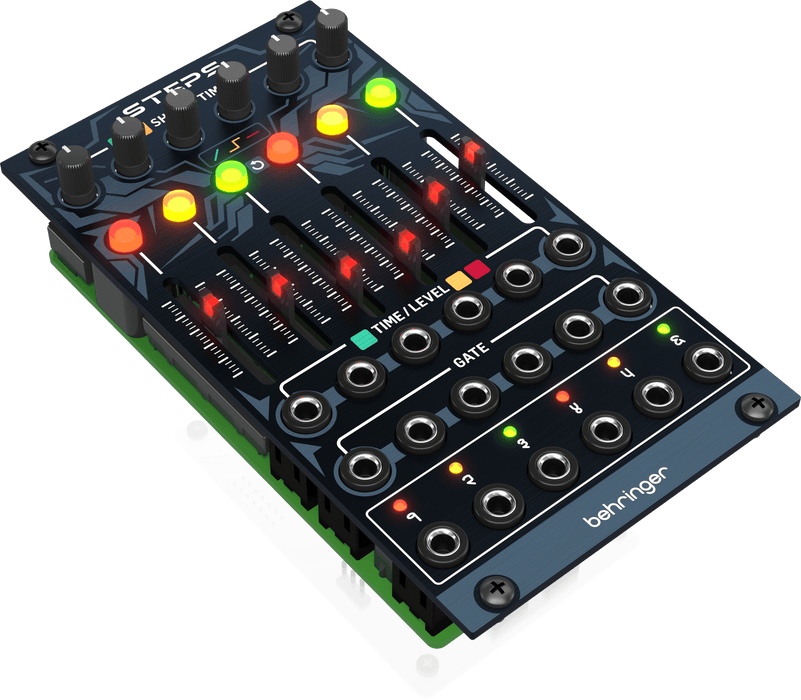

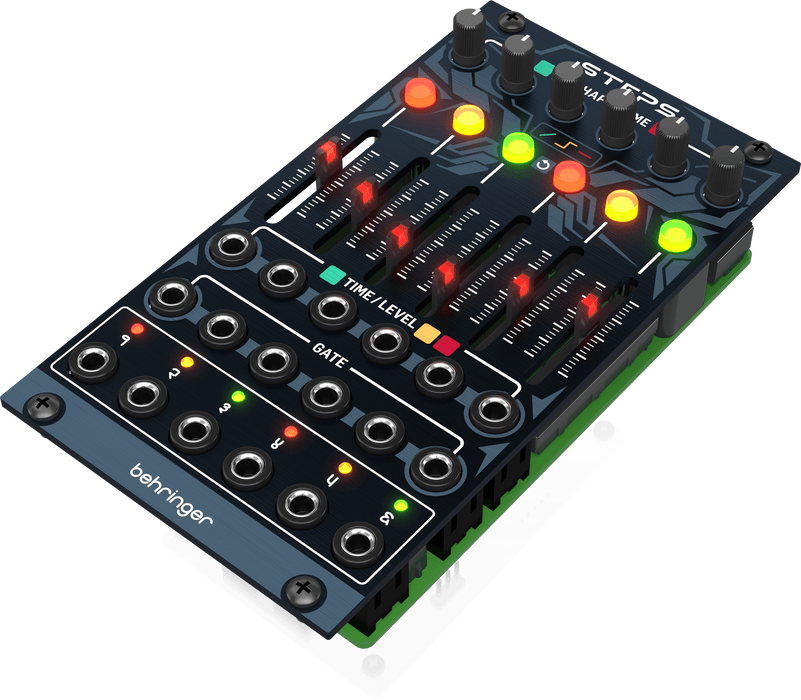

Behringer Steps 6-stage Multi-source Function Generator and Sequencer Eurorack Module

Across myriad forms of modulation, sequencing, and function-generating ferocity, Steps represents Behringer’s flexible, fiery foray into multimode modulation madness. Its 6-stage architecture hosts three distinct modes for every segment, color coded to provide immediate visual confirmation of your signal path and behavior, especially in low-light environments. Ramping, Step, and Hold modes determine how the output voltage reaches its target value; versatile options for Single or Grouped segments let you craft and weave wild waveshapes, LFOs, and 4-step sequencing capabilities into a tapestry of multimode modulation. Moreover, the expansive range of time available to each of the module’s six stages has Music Bliss sound designers seriously intrigued. With a 1ms minimum length and 16-second maximum length, your modulation, sequencing, and envelope-generating tools stand to build unwieldy progressions that are only multiplied in their aural ambitions when using the CV-controllable jacks for the Gate and Time parameters. Plus, Steps comes equipped with an ultra-high-resolution DSP system, supporting 24-bit/48kHz audio and ensuring every detail and nuance of your voracious voltage is captured, processed, and transported with integrity.

FEATURES

• 6-stage architecture supplies multitudes of function-generating capabilities with immense flexibility

• 14HP module size guarantees massive modulation that won’t sacrifice precious real estate

• 3 per-stage Segment Modes include Ramping, Hold, and Step options, allowing you to craft diverse waveshaping, LFO, step-sequencing, and envelope-generating forms of modulation
• Color-coded Segment Modes streamline workflow in studio and stage settings with easily identified visual feedback

• Flexible Single and Grouped operation supports dynamic looping and sound-shaping options

• Adjustable per-stage timing ranges from 1ms to 16s, expanding the temporal aperture of your sequencing and modulation possibilities
• Extensive CV control for Time, Level, and Gate values ensure seamless and inspiring interoperative integration with your case

SPECIFICATIONS

• Type: Multi-source Modulation/Sequencer Module

• Analog/Digital: Digital

• Controls: 6 x Shape/Time Knobs, 6 x Mode Buttons, 6 x Voltage Sliders

• Analog Inputs: 6 x 1/8" TS (time/level CV)

• Analog Outputs: 6 x 1/8" TS

• Depth: 1.85" (47.2mm)

• HP Size: 14HP

• Power Usage: +12V/100mA, -12V/30mA

• Power Supply: Requires Eurorack Case and Power Supply

• Weight: 6.41 oz
