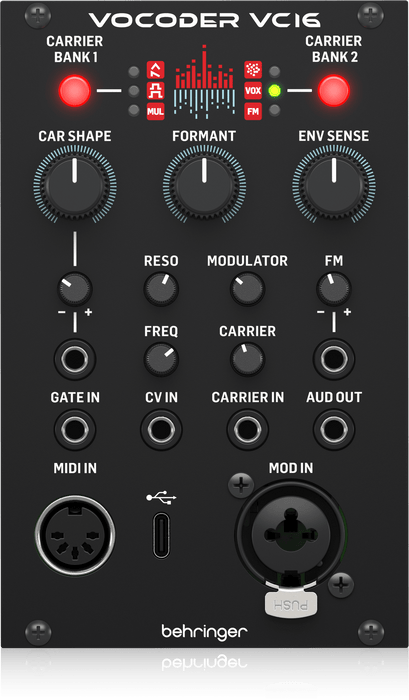

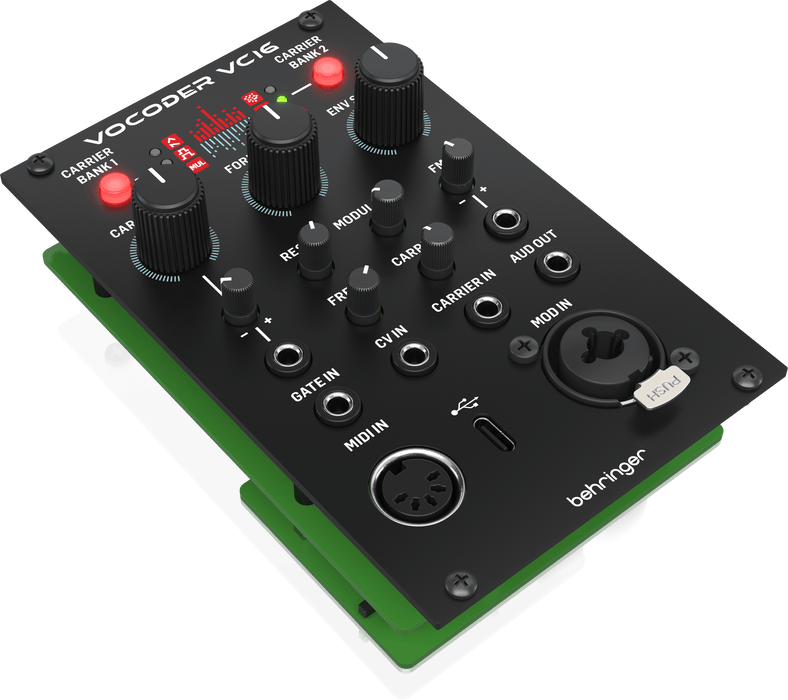

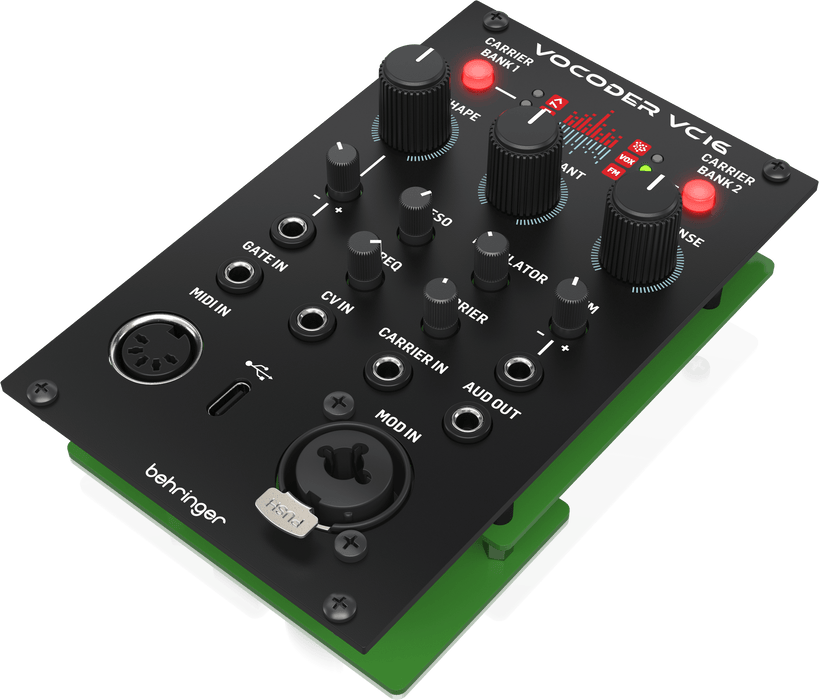

Behringer Vocoder VC16 Eurorack Module (VC-16)

Start warming up your voice and get ready to robot-rock! The Behringer VOCODER VC16 combines six powerful synthesis engines with amazing polyphony and versatile oscillators and is sure to bring something new and exciting to your synth setup. The heart of the VC16 is its six digital oscillators that include triangle/ramp, square/pulse, multiple wave, noise, vox and FM across two carrier banks. These can be tweaked with the Carrier Shape control along with the Shape CV Attenuverter.

FEATURES

• Amazing Vocoder with powerful oscillators and 3 voices of total polyphony
• 6 digital oscillators, encompassing analog modeling, noise, FM, and Vox
• 4 controls for precise vocoder response and sound modeling
• Specially crafted synthesis models tailored for Vocoder applications
• Carrier shape control facilitating complex synthesis
• External carrier input with adjustable level control
• Line/mic modulator input featuring level control
• MIDI input for effortless interfacing with other instruments
• USB connector for seamless firmware updates
• Eurorack specs: 16 HP, 100 mA +12 V, 20 mA -12 V

SPECIFICATIONS

• Type:    16-band Vocoder Module

• Analog/Digital:    Digital

• Controls:    Carrier Shape Knob, Formant Knob, Envelop Sensitivity Knob

• Analog Inputs:    1 x XLR-1/4" Combo (mod), 1 x 1/8" TS (carrier), 1 x 1/8" TS (FM)

• Analog Outputs:    1 x 1/8" TS

• MIDI I/O:    In (5-pin DIN)

• Other I/O:    USB-C, Shape CV In, Gate In, CV In

• Height:    5.06"

• Width:    3.19"

• Depth:    2.09" (52.8mm)

• HP Size:    16HP

• Power Usage:    +12V/100mA, -12V/20mA

• Power Supply:    Requires Eurorack Case and Power Supply
