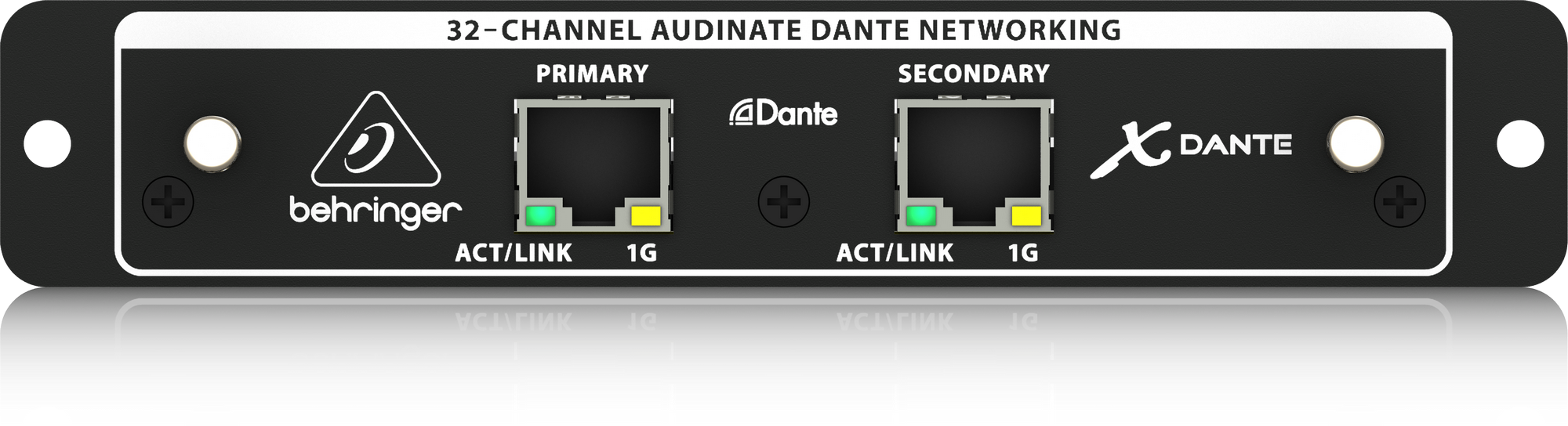

Behringer X-DANTE 32-channel Dante Expansion Card (X DANTE)

The X32's expansion slot provides flexible and expandable connectivity for many different applications. The X-DANTE Expansion Card can easily be installed in place of the X-USB card that is included with the X32. The 32-channel 48 kHz bi-directional audio interface brings even more I/O options to the X32 by making it ready for integration with Dante enabled IP networks. The X32 ships with the X-USB card in the expansion slot, but by installing the X-DANTE card in this slot, your mixer will interface with Dante networks using either standard 100Mbit/s or Gigabit Network infrastructure with DSCP-based QoS, with support for mixed sample and bit rates coexisting on the same network. The X-DANTE card utilizes 24-bit signal transmission with sample-accurate synchronization and low latency, ensuring the highest audio integrity. And a secondary input allows you to set up a seamless, redundant network.

FEATURES

• 32-channel 48 kHz, bi-directional audio interface for Dante* IP networks
• High-speed 24-bit signal transmission with sample-accurate synchronization and low latency
• Allows interfacing with standard 100 MBit/s or Gigabit network infrastructure with DSCP-based QoS
• Mixed sample and bit rates can coexist on the same network
• Full remote control of X32 possible using the integrated Ethernet switch
• Audinate* Dante Controller application?with full control over configuration and signal routing among all Dante-enabled devices
• Dante Virtual Soundcard allows employing your PC or Mac* for IP-based multitrack recording and playback of up to 64 channels (license optionally available at www.audinate.com)
• Secondary connection can be configured for seamless redundant audio networking
• 3-Year Warranty Program*
• Designed and engineered in Germany

SPECIFICATIONS

• Type : Dante Expansion Card
• Compatibility : Behringer X32, Midas M32
• Number of Channels : 32
• Data I/O : 2 x Ethernet (Primary, Secondary)
