Blackmagic Design ATEM 4 M/E Constellation 4K Plus Video Switcher

Are you in need of a powerful 4K video switcher for large-scale live productions? Look no further than the Blackmagic Design ATEM 4 M/E Constellation 4K Plus. This feature-laden Ultra HD video switcher gives you 80 12G-SDI inputs and 48 12G-SDI outputs, plus balanced audio and Ethernet control to the unit’s internal 156-channel Fairlight audio mixer. You also get four DVEs, 16 keyers, four media players, four independent multiviews, two SuperSource processors, and standards conversion on every SDI input. Additionally, it includes S-422 for serial control and MADI digital audio connections. You can take command using the ATEM Constellation 4K Plus’s front panel, which includes an easy-to-read LCD screen, or you can add an external hardware controller or deploy the free ATEM Software Control app. Built-in talkback is also included. To top it off, the ATEM Constellation 4K Plus runs quietly and economically, thanks to its high-efficiency thermal system and low-speed cooling fans.

FEATURES

• 80 independent 12G-SDI inputs and 48 independently routable, fully customizable 12G-SDI outputs

• Balanced audio and Ethernet control

• 4 DVEs, 16 keyers, 4 media players, 4 independent multiviews, 2 SuperSource processors

• Standards conversion on every SDI input upscales any format to 4K

• Route any external SDI input and all internal sources to any SDI outputs

• Outputs contain embedded program audio, mix minus support, RP‑188 time code, SDI camera -control, and more

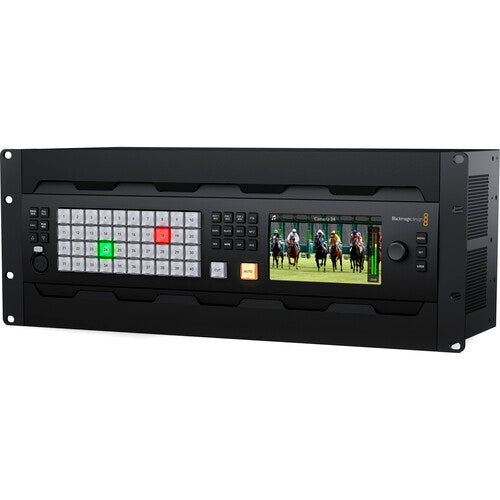

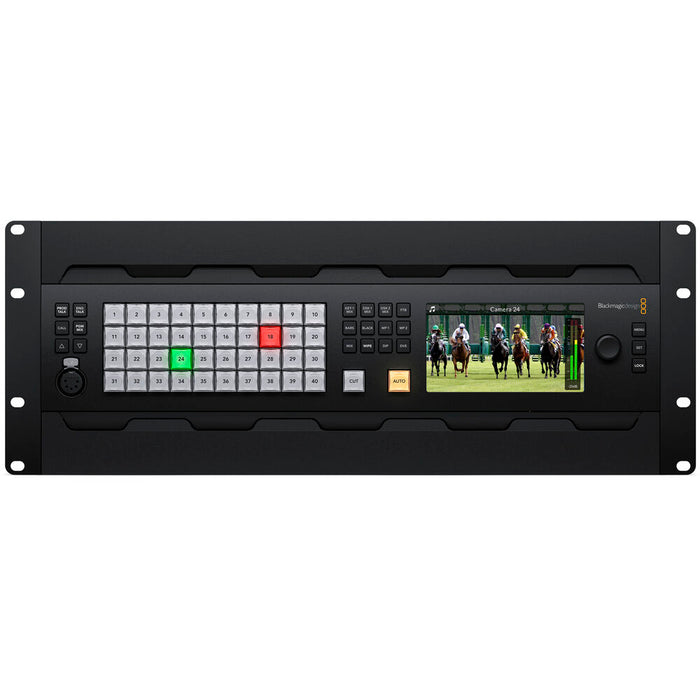

• Front panel gives you incredible power with PGM/PVW or cut-bus-style operation

• Front-panel command over transitions, upstream/downstream keyers, media players, and fade to black

• Built-in talkback right from the front panel
  Compatible with the full gamut of Blackmagic’s hardware control panels

SPECIFICATIONS

• Type : Rackmount UHD Live Production Switcher

• Channels : 80 x Video In, 52 x Video Out, 298 x Audio

• Video Format : Up to 4K (60fps)

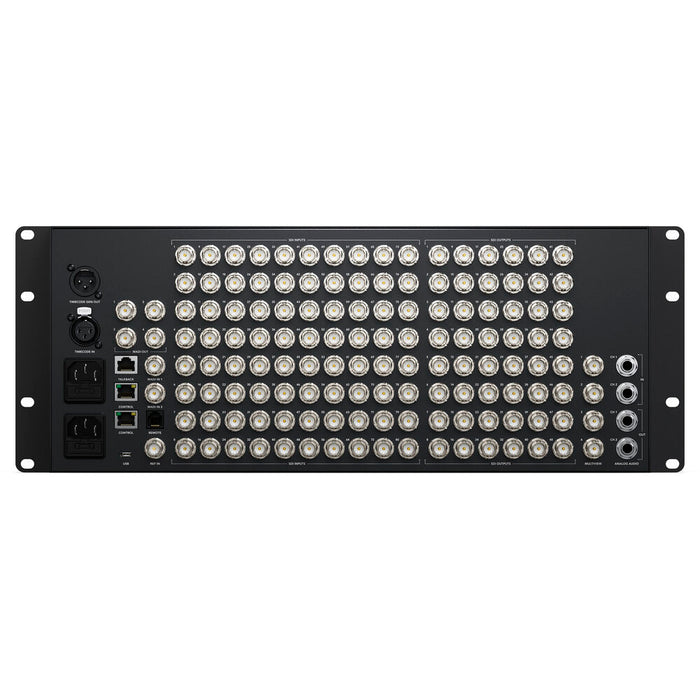

• Video Inputs : 80 x BNC (12G-SDI)

• Video Outputs : 48 x BNC (12G-SDI, assignable), 4 x BNC (multivew)

• Audio Inputs : 2 x BNC (MADI, 64-channel)

• Audio Outputs : 2 x 1/4" TRS (channel 1), 2 x 1/4" TRS (channel 2), 4 x BNC (MADI, 64-channel)

• Sync : 1 x 3-pin XLR (timecode in), 1 x 3-pin XLR (timecode gen out), 1 x BNC (ref in)

• Headphones : 1 x 5-pin XLR (front, talkback)

• USB : 1 x USB-C (rear, 1080 webcam)

• Other I/O : 2 x RJ45 (10/100/1000 base-t), 1 x RJ45 (talkback), 1 x RJ12 (remote, supports RS-422)

• Effects : 16 x Chroma Keyers, 21 x Pattern Generators, 2 x Color Generators

• Software : ATEM Software Control Panel

• Features : Internal Timecode Generator, 4 x Media Players, Built-in LCD Monitor

• Power Source : 2 x Standard IEC Power Inputs

• Height : 7" (4U)

• Width : 19"

• Depth : 8.9"

• Weight : 29.66 lbs
