Blackmagic Design ATEM 4 M/E Constellation IP Live Production Video Switcher

The extraordinarily powerful, SMPTE-2110-native ATEM 4 M/E Constellation IP live production switcher expands upon the creative switching power of Blackmagic Design’s ATEM Constellation series. Tame the complexities of modern live production with this switcher’s flawless quality, IP connection redundancy, precision synchronization, and Constellation-grade creative control, as well as its ability to accommodate a 12G-SDI and SMPTE-2110 IP video converter into the mix. The ATEM 4 M/E Constellation IP provides 32 video inputs and 28 video outputs, thanks to four pairs of expansive dual high-speed 100G Ethernet ports. Under the hood, it's outfitted with 16 ATEM Advanced Keyers, a quartet of multi-views, and a pair of SuperSource processors, putting a dozen DVEs at your disposal. Equipped with an effortlessly navigable LCD screen, a built-in speaker, 1/4-inch headphone audio support, and efficient ATEM Software control, the ATEM 4 M/E Constellation IP is a high-performance 2RU switcher that makes it an absolute breeze to organize, enhance, and keep tabs on production feeds from any location in the studio.

FEATURES

• High-performance live production video switcher with native SMPTE-2110 for mixing 12G-SDI and SMPTE-2110 IP video signals with ease

• Designed for integration with other Blackmagic Design units like SDI Expander 8x12G, StudioBridge 10G PWR, and Ethernet Switch 820

• 4 dal 100G Ethernet connections with 8 video channel inputs and outputs each, plus SMPTE-2110 redundancy for glitch-free quality

• Handling for multiple video standards at once, up to 4K/60 fps, with per-channel standards converters

• Quiet 4-fan front-to-back cooling provides optimal operational conditions at all times

• 4 customizable multi-views, routed to all SMPTE-2110 connections with 16 views each, create 64 total views over 4 monitors with tally

• Unique transitions, picture-in-pictures, DVEs, ATEM Advanced Keyers, and internal media allow for superior customization

• SuperSource processing for multi-view compositions and versatile talkback capabilities accommodate productions of all types

• ATEM Software Control Panel for Mac/Windows delivers television-grade switching over Ethernet or USB
• Software unveils camera control, switching, media uploading, audio leveling, macro programming, and HyperDeck disk recording control

• Free Fairlight Live software enables broadcast-grade surround sound mixing and audio routing directly to the switcher

SPECIFICATIONS

• Type : ATEM 4 M/E Contellation IP Advanced Live Production Switcher

• Channels : 32 x Video Inputs, 28 x Video Outputs, 68-channel Audio Mixer

• Video Format : Up to 4K/60fps

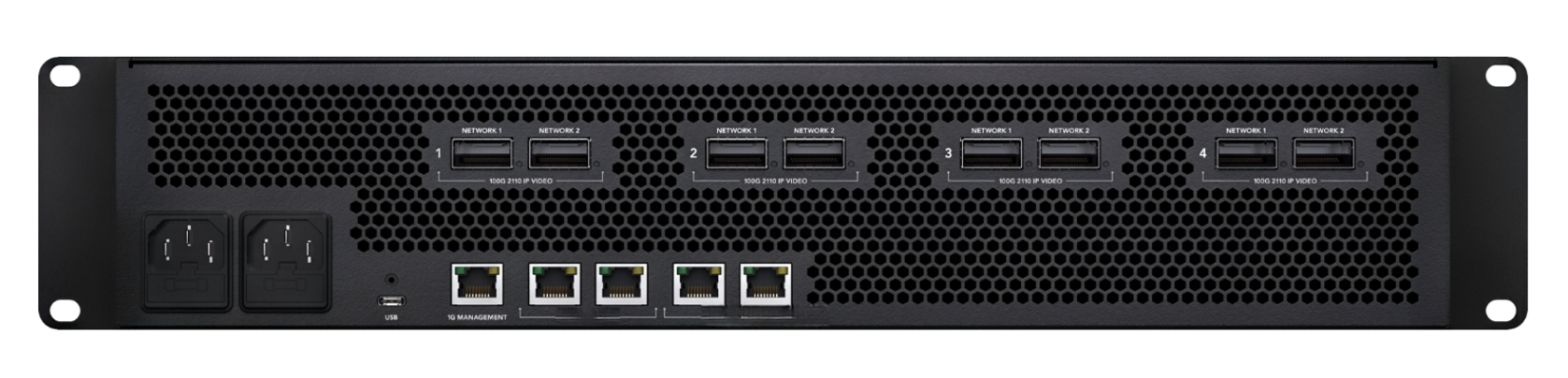

• Video Inputs : 8 x QSFP28 (100G 2110 IP video)

• Headphones : 1 x 1/4" TRS (front)

• USB : 1 x USB-C (front), 1 x USB-C (rear, webcam output)

• Other I/O : 1 x RJ45 (1G management), 2 x RJ45 (2110 PTP clock), 2 x RJ45 (10G control)

• Software : Blackmagic Design ATEM Software Control Panel (macOS/windows)

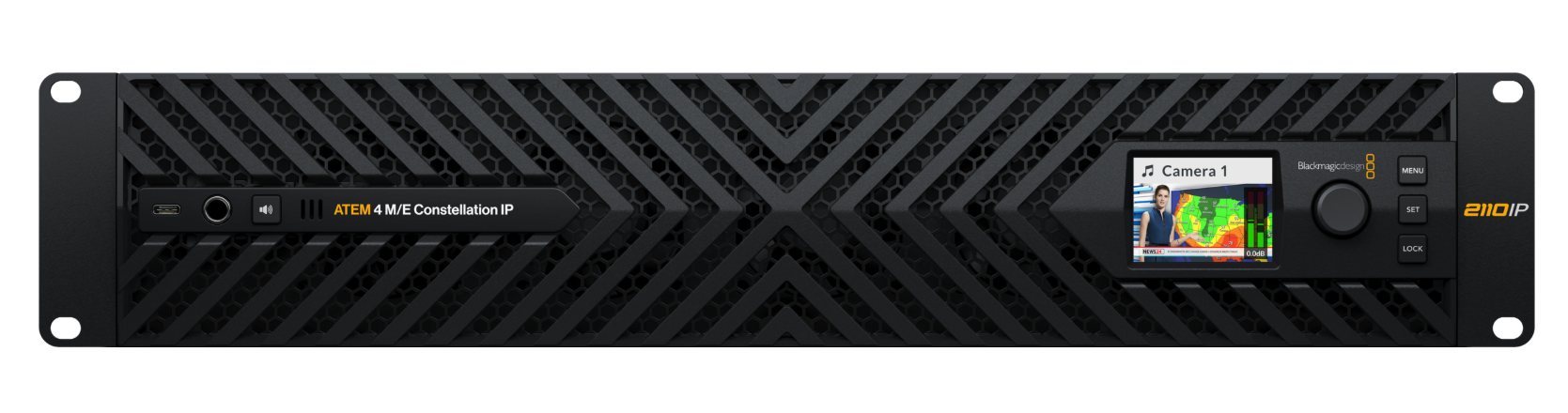

• Features : Built-in LCD Monitor & 4 x Media Players

• Power Source : 2 x Standard IEC (C14) AC Inputs (cable sold separately)

• Height : 3.48" (2U)

• Width : 19"

• Depth : 8.66"
