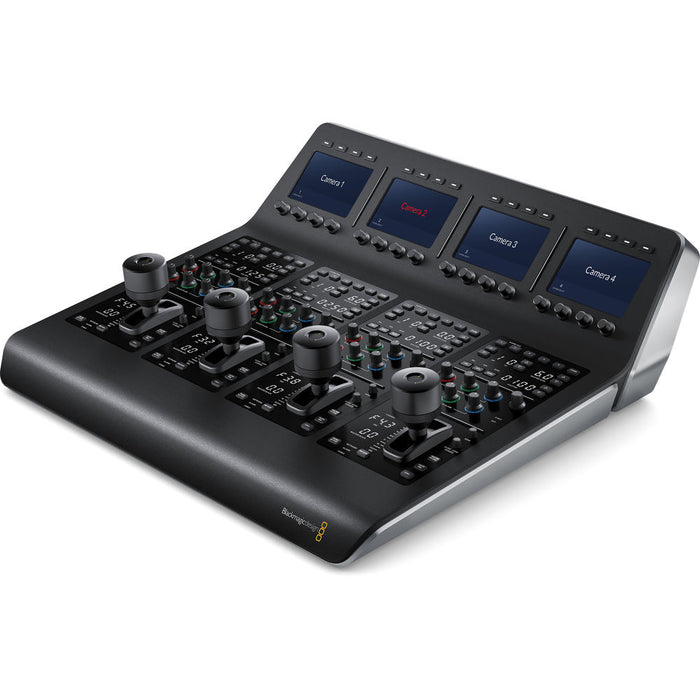

Blackmagic Design ATEM Camera Control Panel

With the Blackmagic ATEM Camera Control Panel, you can now outfit your production studio with an expert level of control for up to four camera sources. This devoted control board gives camera assistants the freedom to actively monitor and adjust the visual details of each feed, including color balance and shutter speed, while simultaneously allowing camera operators to focus more on the creative side of the shoot and less on the production specifics. Its portability favors both studio and mobile production scenarios, and it can be easily integrated into sliding rack shelves. Live production professionals here at Music Bliss also love the streamlined and intuitive interface. Working flawlessly in conjunction with Blackmagic's URSA Broadcast, URSA Mini, Studio, and Micro Studio video cameras, the ATEM Camera Control Panel is a must-have addition for professional Blackmagic-equipped studio crews.

FEATURES

• Effective and efficient for a variety of uses and locations including newsrooms, sporting events, mobile studios, and more

• Streamlined interface is designed for solo operation by crew members of all experience levels

• Per-camera LCD screens supply direct monitoring of each video source

• Color-coded and LED controls help make quick sense of the workstation on-the-fly

• Reliable usage in both stationary and mobile studios, with simple sliding rack shelf integration

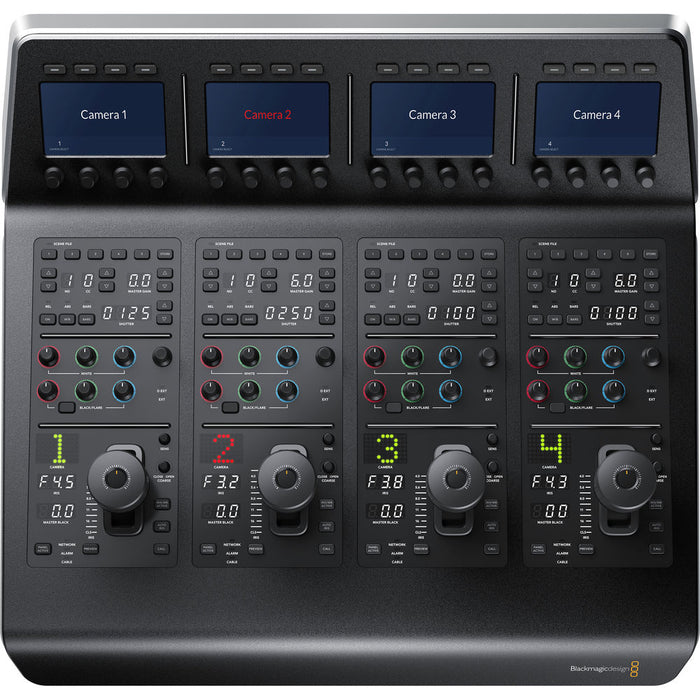

• Upper-section of each channel controls master gain, white balance, shutter speed, and setting save/recall

• Middle section houses color-coded RGB controls for counteracting unwanted presence in white/black feeds

• Lower section features LED indicators for camera number, on-air status, network and cable connections for each camera, and more
• Call button enables easy talkback with operators

• Joystick controls iris level with rotating knob for master black leveling

SPECIFICATIONS

• Type : ATEM Camera Control Panel

• Compatibility : 4 x Blackmagic Design URSA Broadcase or Studio cameras

• Display : 4 x LCDs

• Joystick : 4 x 3-axis Joysticks

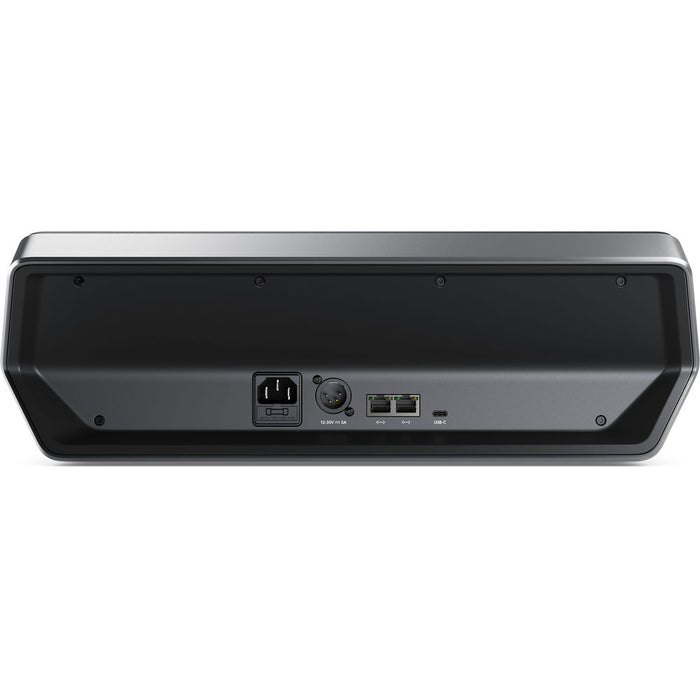

• USB : 1 x USB-C

• Data I/O : 2 x RJ45

• Power Source : 1 x Standard IEC input, 1 x 4-pin 12V input

• Height : 5.57"

• Width : 16.93"

• Depth : 15.31"

• Weight : 14.66 lbs.
