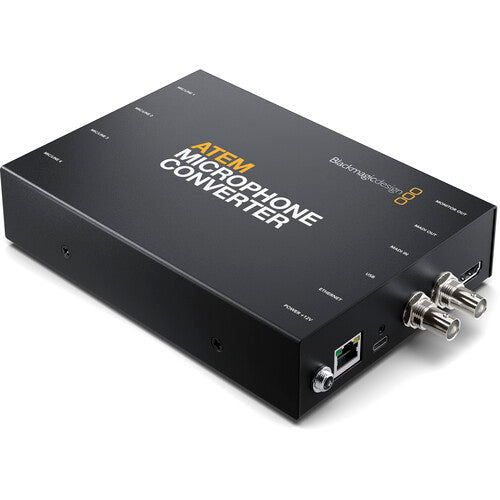

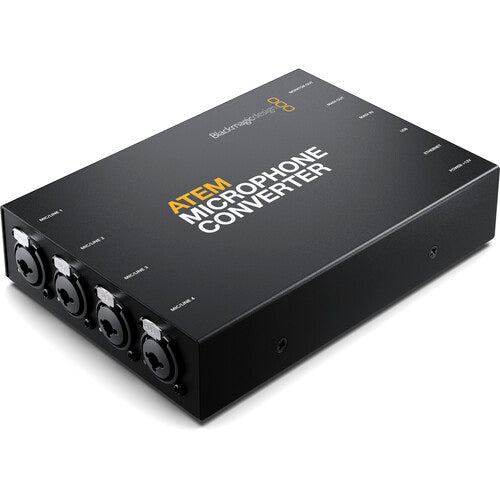

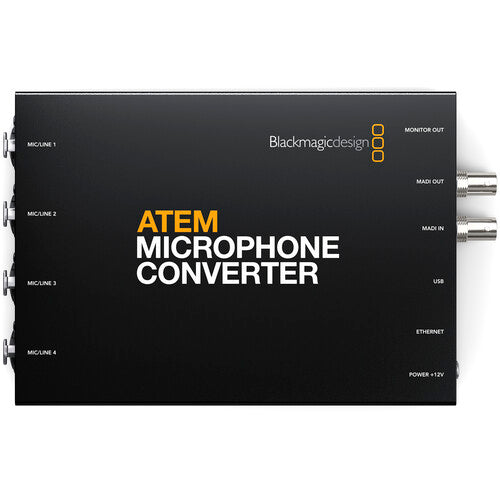

Blackmagic Design ATEM Microphone Converter

Extend the reach of your Blackmagic Television Studio switcher’s MADI capabilities with this ATEM Microphone Converter from Music Bliss! All it takes is one easy connection to your switcher’s MADI port, and you’ve instantly opened up your production setup to four more analog combination mic/line-selectable input sources, each with phantom power. And you can be sure that your signals are delivered in top quality! The ATEM Microphone Converter operates with a stunningly low noise floor and virtually non-existent distortion, boasting 8-ADC per-input engineering for a wide dynamic range that delivers your audio signals with the utmost clarity. Additionally, this converter houses HDMI monitor, Ethernet, and USB-C connections to accommodate the needs of your workstation. Included with the converter is a 12V DC power supply with a locking connector and international socket adapters for flawless functionality wherever you’re working.

FEATURES

• Extends the MADI microphone channel range of your Blackmagic Television Studio switcher

• 4 combination mic/line-selectable inputs with phantom power

• Super low noise floor absent of distortion for crystalline audio transfer
• HDMI monitor, Ethernet, and USB-C connections to meet the needs of your studio

SPECIFICATIONS

• Type : ATEM MIcrophone Converter

• Channels : 4

• A to D : Yes

• Sample Rate : 48kHz

• Bit Depth : 24-bit

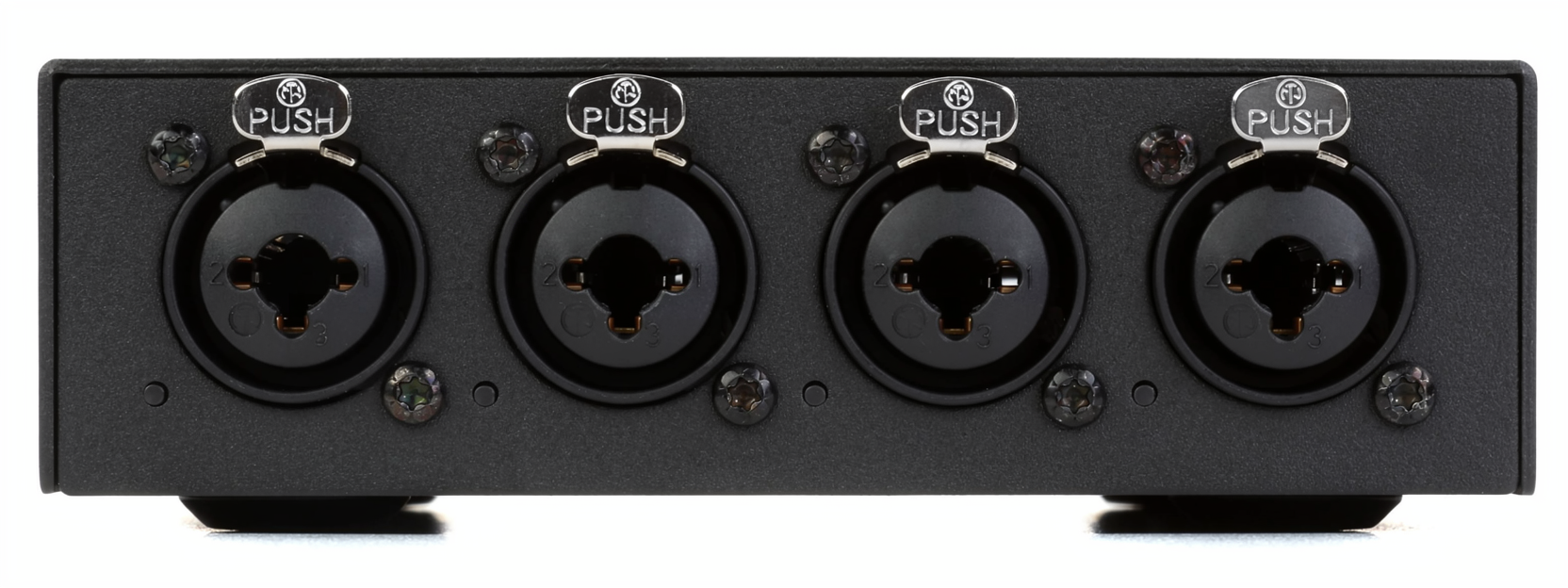

• Analog Inputs : 4 x XLR-1/4" combo (mic/line)

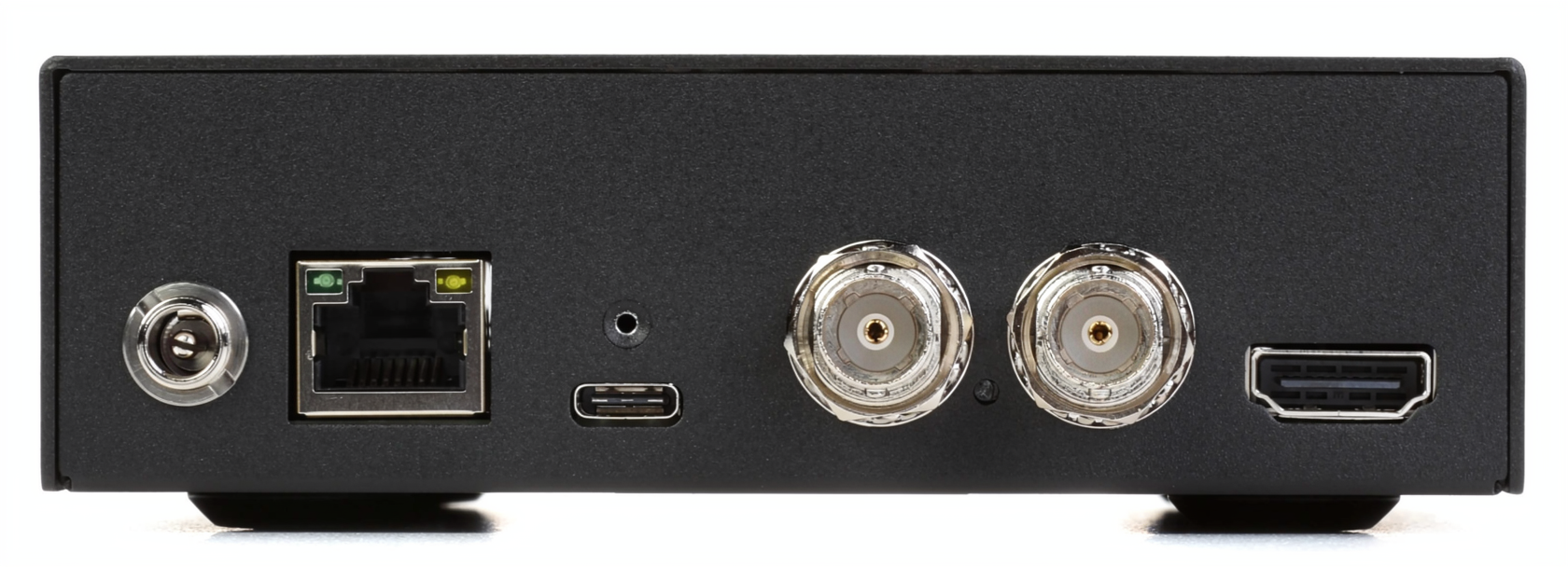

• Digital Inputs : 1 x BNC (MADI)

• Digital Outputs : 1 x BNC (MADI), 1 x HDMI (monitor)

• USB : 1 x USB-C

• Data I/O : 1 x Ethernet

• OS Requirements - Mac : OS X 12, 13 or later

• OS Requirements - PC : Windows 10 (64-bit), 11

• Power Source : 12V DC Power Supply

• Height : 1.6"

• Depth : 4.92"

• Width : 7.87"

• Weight : 1.87 lbs
