Blackmagic Design ATEM Monitoring Rack Panel 40 Video Switching Controller

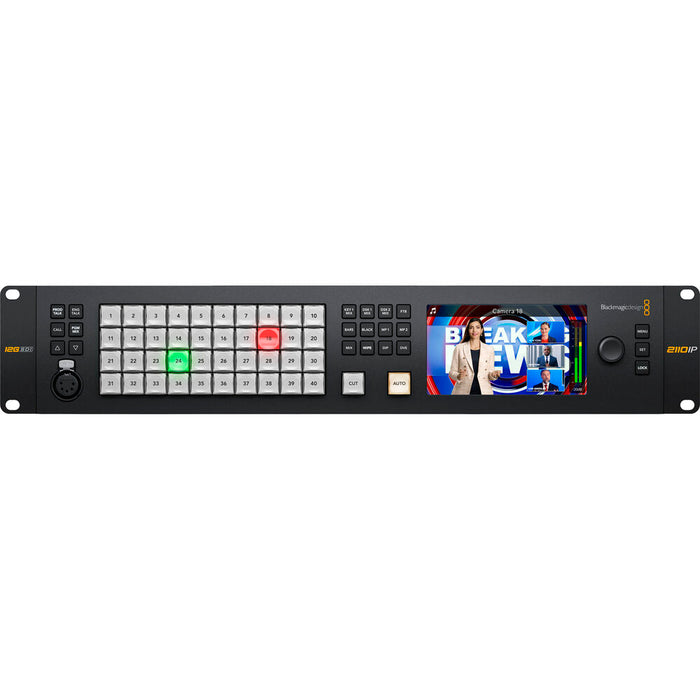

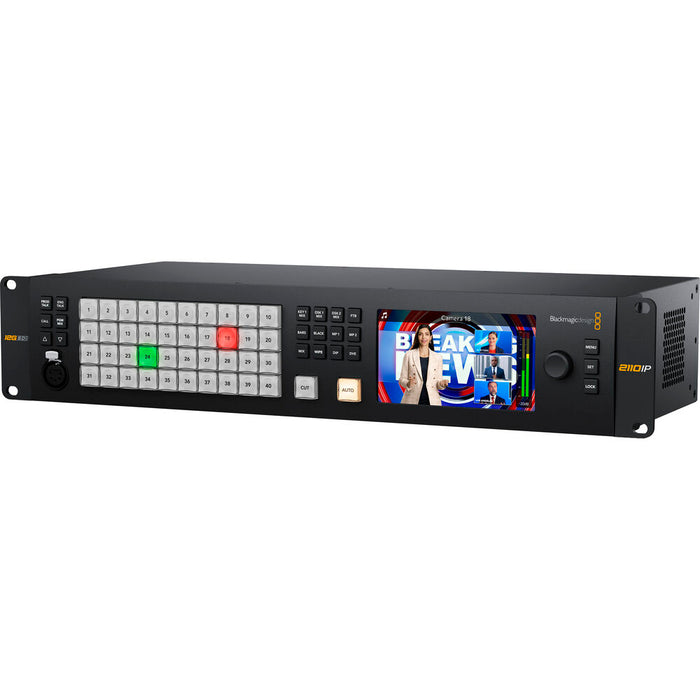

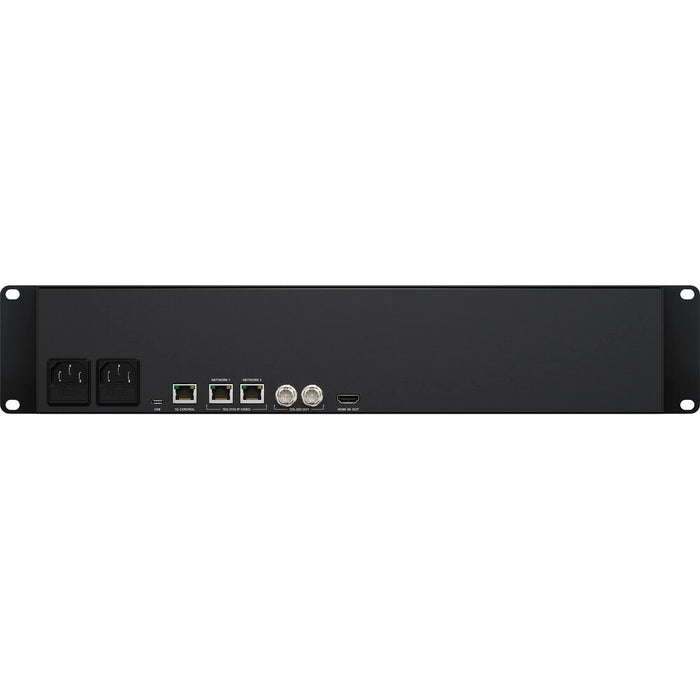

It’s now easier than ever for professional live broadcast teams to convert and monitor SMPTE-2110 IP feeds over 12G-SDI and 4K HDMI connections with Blackmagic Design’s 2RU ATEM Monitoring Rack Panel 40 converter. When paired with a local ATEM switcher such as the ATEM Constellation IP, this converter acts as a front-panel controller with software control compatibility. Across the front of the unit, the ATEM Monitoring Rack Panel 40 hosts 40 LED source selection buttons with Cut and Auto options, all neighboring a grid of 12 source and control buttons for convenient triggering of transitions, DVEs, black screen, and more. On the back, you'll receive 1G Ethernet network control connection and a pair of 10G Ethernet terminals for creating ultra-stable SMPTE-2110 IP stream redundancy. Complete with direct on-unit monitoring via the built-in 5-inch HD LCD screen, embedded audio on all inputs and outputs, 5-pin XLR talkback support, and dedicated program and mix controls, Music Bliss production experts can confirm that the ATEM Monitoring Rack Panel 40 is the high-resolution monitoring solution your broadcast studio has been waiting for.

FEATURES

• Professional live broadcast converter for SMPTE-2110 IP input and 12G-SDI/HDMI output

• Acts as a control panel for local ATEM switchers, such as the ATEM Constellation IP (with free software control available)

• 1G Ethernet network control, plus dual 10G Ethernet ports for ultra-stable SMPTE-2110 IP stream redundancy

• 40 LED source selection buttons, Cut/Auto control, and 12 source/control buttons for triggering transitions, DVEs, and more

• Direct on-unit monitoring of live feeds in HD via the built-in 5-in. LCD screen

• Crystal clear embedded audio on all connections, plus 5-pin XLR talkback convenience with dedicated controls

SPECIFICATIONS

• Type : ATEM Monitoring Rackmount Panel 40

• Video Format : Up to 4K/60fps

• Video Inputs : 2 x RJ-45 (10G 2110 IP video)

• Video Outputs : 2 x BNC (12G-SDI), 1 x HDMI

• Headphones : 1 x 5-pin XLR Talkback (front)

• USB : 1 x USB-C (rear)

• Other I/O : 1 x RJ-45 (1G control)

• Software : Blackmagic ATEM Software Control Panel (macOS/windows)

• Features : Built-in LCD Monitor, 40 x Source Select Buttons

• Power Source : 2 x Standard IEC (C14) AC Inputs

• Height : 3.48" (2U)

• Width : 19"

• Depth : 8.94"
