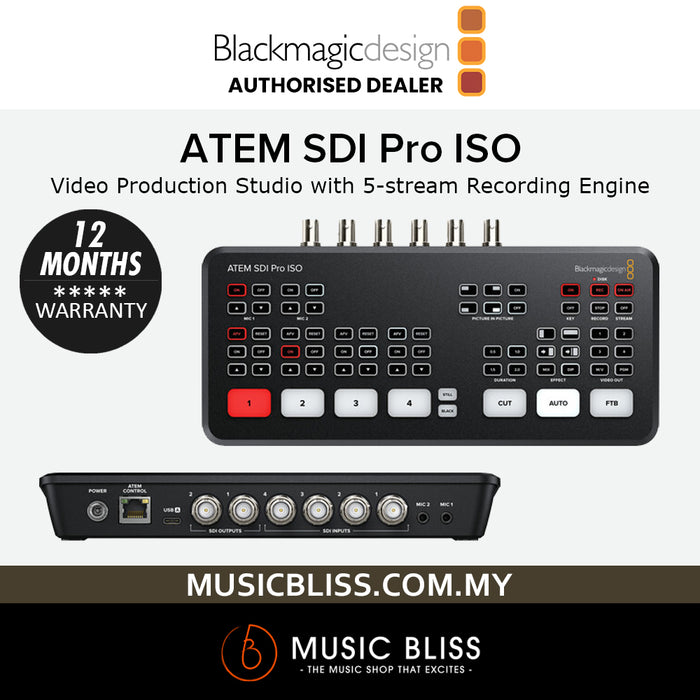

Blackmagic Design ATEM SDI Pro ISO Video Production Studio with 5-stream Recording Engine

The ATEM ATEM SDI Pro ISO Switcher from Blackmagic Design is a four-input live-production switcher with an integrated control panel designed for multi-camera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual 3G-SDI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.

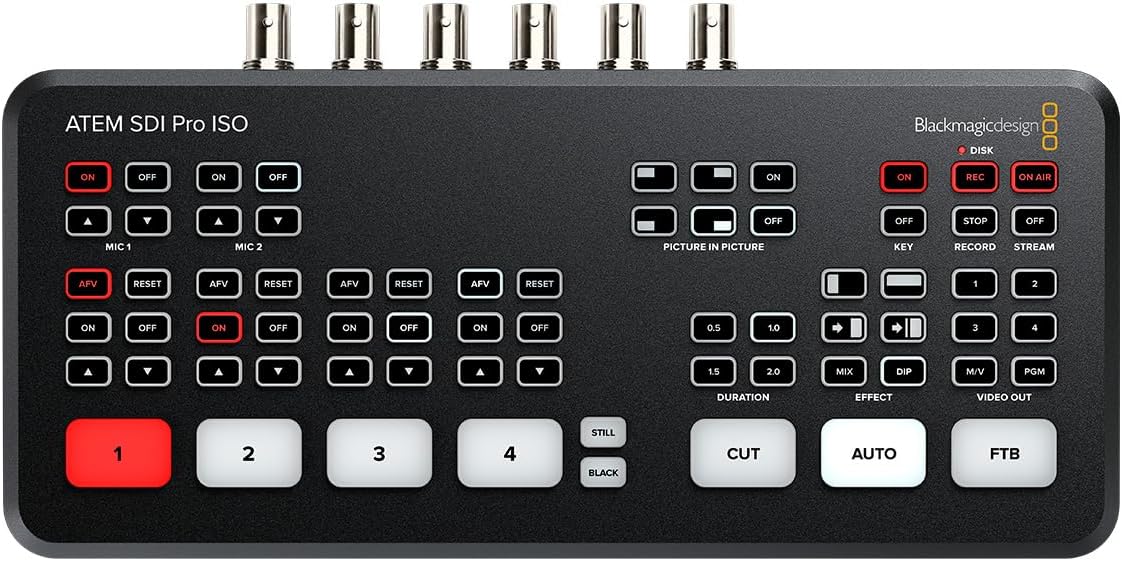

The ATEM Mini Pro ISO retains the same size, button layout, and rear-panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file. The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro, including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.

FEATURES

• 4-Channel Live Stream 3G-SDI Switcher

• Program and 4 x Input ISO Recording

• Generates DaVinci Resolve Project

• Live Tally, Stream, and Record Status

• Record Button, Channel Preview Multiview

• 2-Channel Digital Audio Mixer per Source

• 3G-SDI Output, Ethernet ATEM Control

• Media Player, Computer Input Support

• Upstream and Downstream Keyers

• DVE Transition, Chroma/Luma Keyers

SPECIFICATIONS

• Available M/E Layers : 5 M/E

• Effect Types : DVE, Transition, Chroma Key

• Generators : 1x Pattern | 2x Color

• Audio Mixing : 2-Channel Mixing
• Processing
  - Switching Type : IR Remote, Pushbutton, Software

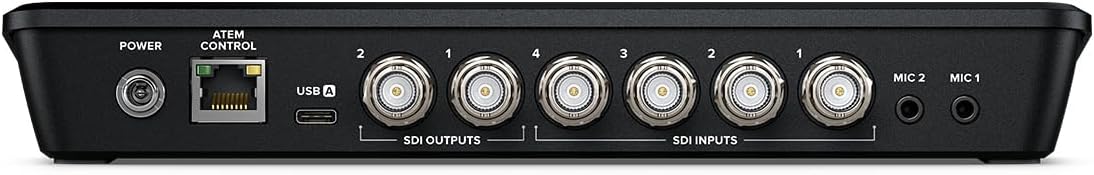

• Input
  - Number of Video Input Sources : 4
  - Video Inputs : 4x BNC (3G-SDI)
  - Input Video Format : SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | 1080i at 56/59.94/60 fps | 720p at 50/59.94/60 fps
  - Audio Inputs : 2x 1/8" / 3.5 mm TRS Stereo Analog Female
  - Input Audio Format : Analog
  - Embedded Audio Input : SDI: 2-Channel (per Input)
• Output
  - Video Output Channels : 3
  - Video Outputs : 2x BNC (3G-SDI) | 1x USB-C
  - Output Video Format : SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | USB-C (10-Bit 4:2:2 YUV) | 1080p at - 23.98/24/25/29.97/30/50/59.94/60 fps
  - Embedded Audio Output : SDI
  - Multiview Output : Yes
• Connectivity
  - Other I/O : 1x RJ45 Control Input/Output
  - HDCP Support : No
• Hardware
  - OS Compatibility : macOS 11 or Later / Windows 10 or Later
  - OS Compatibility : macOS 11 | macOS 12 or Later | Windows 10 | Windows 11
  - Processor : Not Specified by Manufacturer
  - Wi-Fi : No
  - Bluetooth : No
  - Power I/O : 1x Barrel (12 VDC ) Input
  - Power Consumption : Device: 36 W
