Blackmagic Design ATEM Television Studio 4K8 Live Production Switcher

Live production video switching in locations of all sizes is made simpler with the all-in-one Blackmagic ATEM Television Studio 4K8 compact switcher and control panel. A total of eight standard converted 12G-SDI inputs and 10 12G-SDI outputs with embedded audio capture and send stunning, top-tier 4K camera quality. To accompany, the 4K8 supplies four chroma keyers, SuperSourcing, media players, and more to back up your footage with a professional-grade visual sheen. The intuitive array of buttons enables comprehensive previewing, transitioning, audio processing, and beyond, keeping all of your controls at hand. The 4K8 even provides users a comfortable and convenient 3-axis joystick! Music Bliss production aces love the endless effects and organizational features offered by the 4K8, including real-time DVE scaling and resizing multiple feeds. And the included ATEM Software Control unlocks remote access to the onboard Fairlight audio mixer for more equalization and compression capabilities to balance the right audio signal every time. From news broadcasts to music venues and online courses to football games, the Blackmagic 4K8 is the compact and capable tool for any TV studio-scale production!

FEATURES

• Live production compact video switcher and control panel delivering stunningly professional 4K visuals

• 8x embedded audio 12G-SDI inputs and 10x 12G-SDI outputs for up to 8 video cameras

• 2x SDI Aux outputs connect projectors and presenting monitors

• SDI and HDMI/SDI Multiview connections allow for multi-source monitoring

• Main SDI Program Outfit simplifies the recording and transmission of video feeds

• Audio connections include control room and studio speaker in/out, Talkback/headset, hi-fi stereo, and balanced XLR analog audio

• Talkback expansion port is compatible with Clear-Com and RTS systems

• 4-port Ethernet bank for computer-/internet-based connections

• Microphone expansion availability with MADI Audio ports

• Easily Timecode with dedicated inputs and outputs

• 2x USB-C jacks allow for flash disk recording and mobile phone streaming

• Broadcast system sync-ability with classic 4-pin 12V DC power and standard IEC 100-240V AC power connections

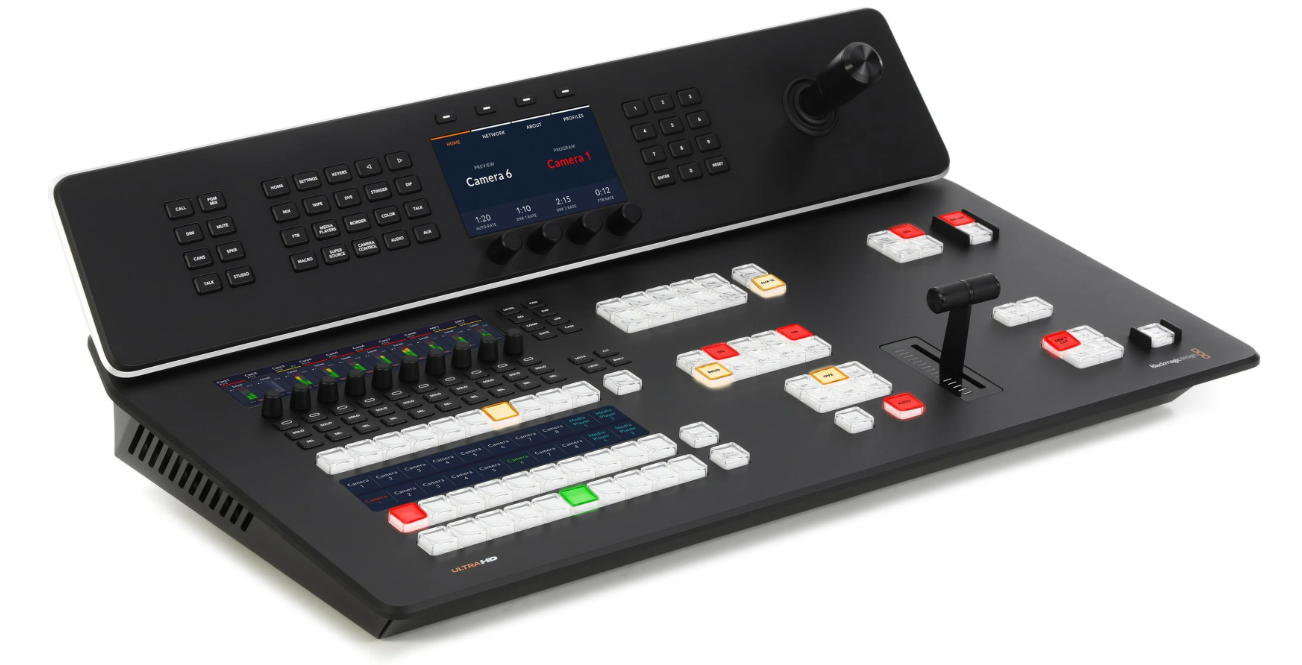

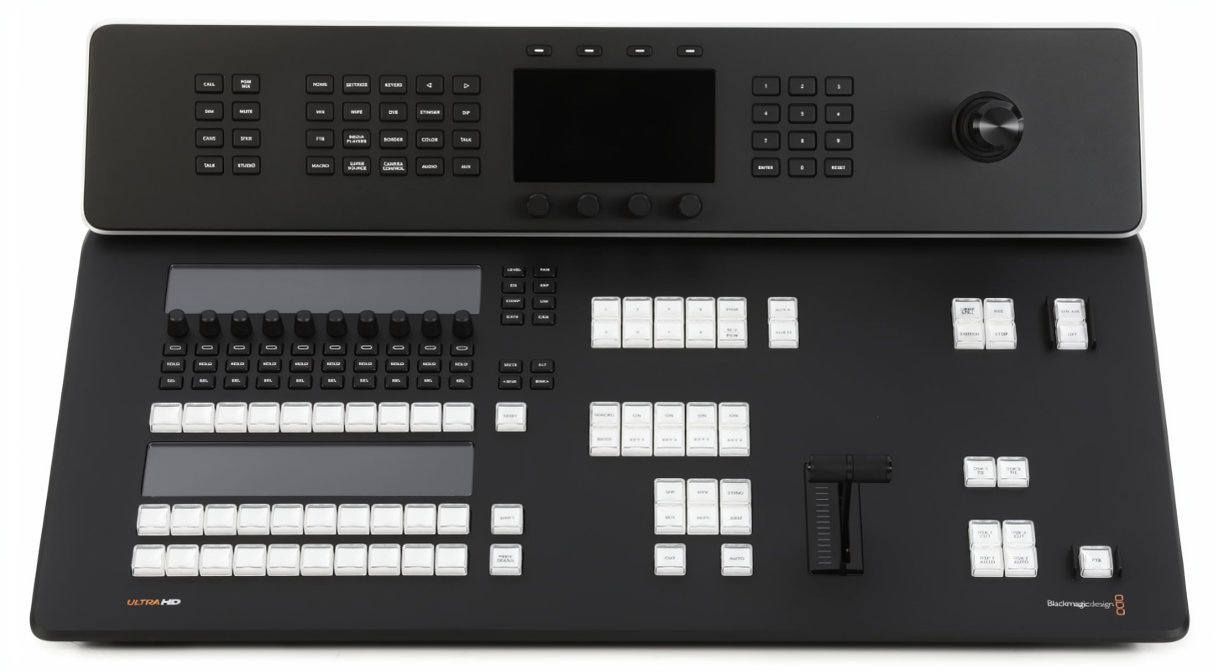

• Large status display screen with nearby master settings controls

• Numeric keypad allows for parameter entering for transition duration adjustments, etc.

• Comfortable, convenient 3-axis joystick offers effortless navigation

• Audio control module powered by onboard Fairlight mixer with EQ, compression, limiting, expanding, noise gating, panning, and AFV

• Bus selections set inputs to processing for keyers and DVEs

• Preview/Program buttons let you view feeds and transitions before airing them

• Transition controls with large T-bar fader to automatically and manually manipulate transition speed, respectively

• Dedicated grid controls for green screen keys and graphic cueing
• Fade-to-black switch ends program feeds with a classic fade

• Transitions include Fade, Dip, Wipe, DVE Push/Squeeze, Graphic wipe, and more, with customizable parameters

• Picture-in-picture graphics enhance video calls with real time resizing, scaling, custom borders, and more

• Support for internal media, including 20 HD stills, 400-frame 720HD/200-frame 1080HD motion graphics

SPECIFICATIONS

• Type : Live Production Switcher

• Channels : 8 Video, 35 Audio

• Video Format : 4K

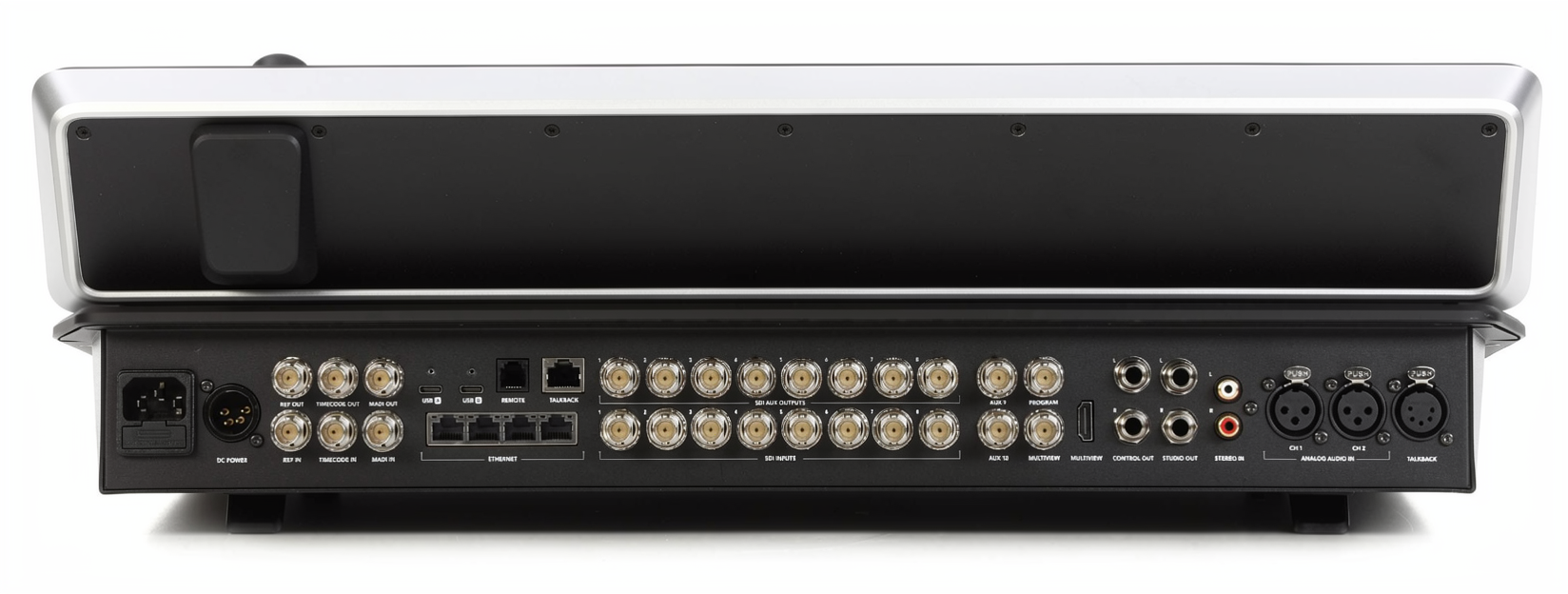

• Video Inputs : 8 x BNC (SDI)

• Video Outputs : 10 x BNC (SDI AUX), 1 x BNC (program), 1 x BNC (multi-view), 1 x HDMI

• Audio Inputs : 2 x 3-pin XLR, 1 x Dual RCA Stereo, 1 x BNC (MADI)

• Audio Outputs : 2 x 1/4" (studio), 2 x 1/4" (control), 1 x BNC (MADI)

• Sync : 2 x BNC (ref I/O), 2 x BNC (timecode I/O)

• Headphones : 5-pin XLR Talkback

• USB : 2 x USB-C

• Other I/O : 4 x RJ45 (ethernet), 1 x RJ45 (talkback), 1 x RJ22 (remote)

• Software : ATEM Software Control Panel

• Power Source : Standard IEC AC, 4-pin DC Power Input

• Height : 6.38"

• Width : 23"

• Depth : 14.8"

• Weight : 14.9 lbs
