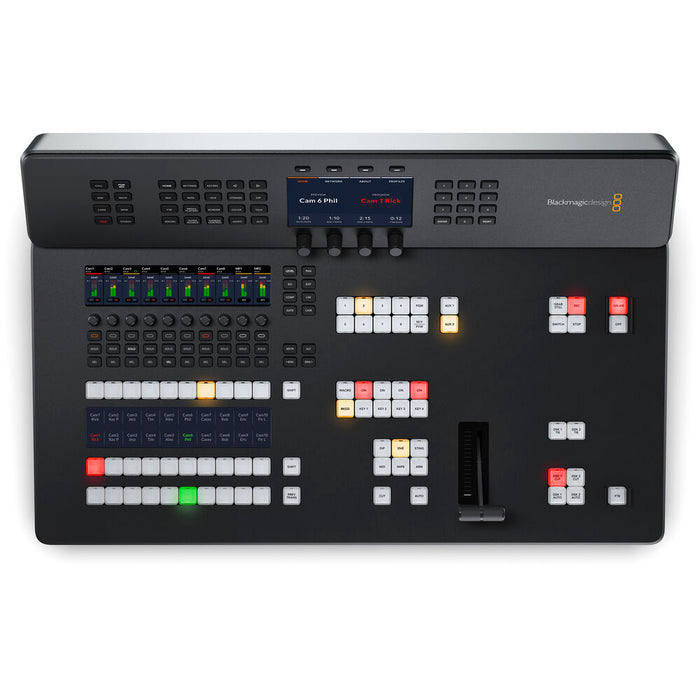

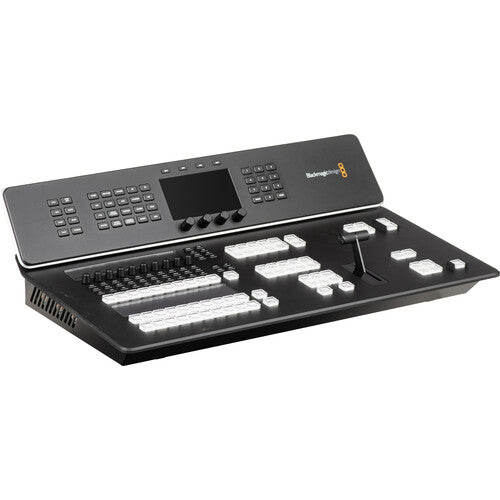

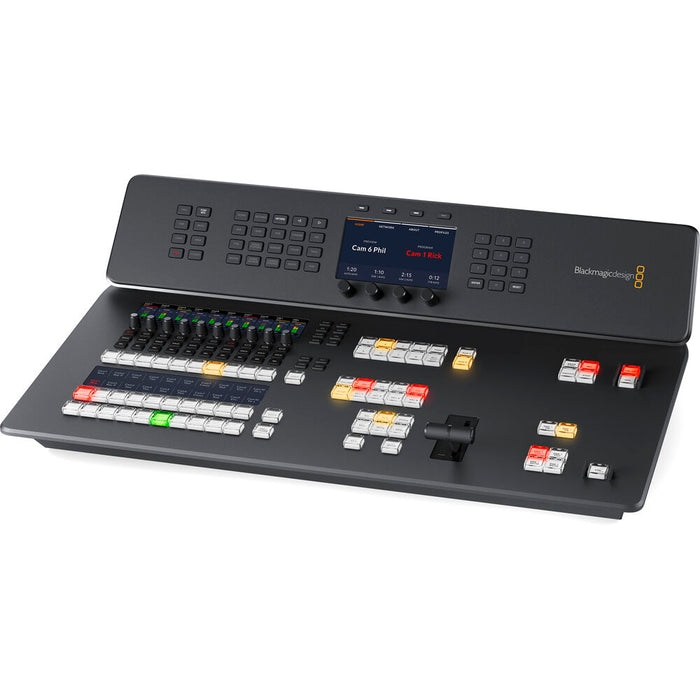

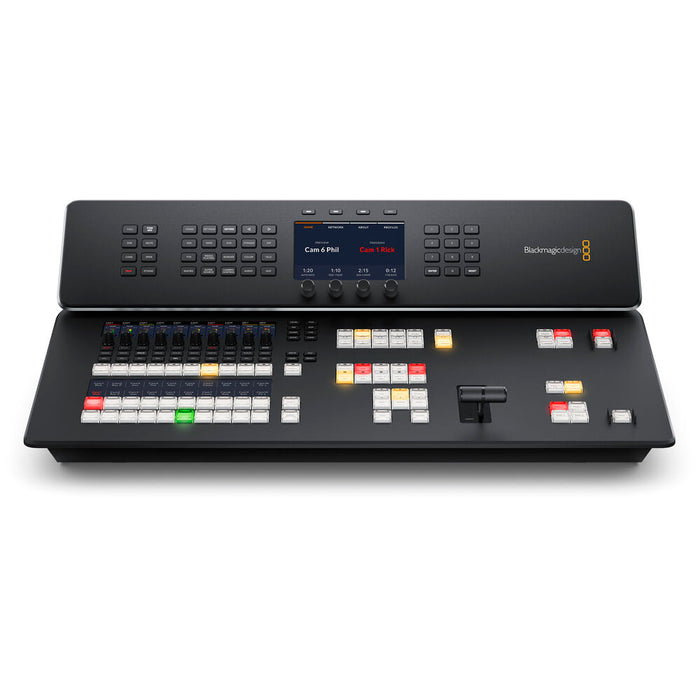

Blackmagic Design ATEM Television Studio HD8 ISO 8-channel Video Switcher

Blackmagic Design ATEM Television Studio HD8 ISO 8-channeAdd an all-in-one live streaming switcher to your television studio, remote production, or live venue with the ATEM Television Studio HD8 ISO from Blackmagic Design. This compact, redesigned live TV switcher is a great fit to any streaming production, providing eight 3G-SDI inputs that support up to 1080p60 video, built-in live streaming, USB webcam support, audio mixing, chroma keyers, DVE, transitions, media players, internal recording, and talkback support. This ISO model also allows you to record each input to separate files, and it allows you to control and integrate control of remote internet cameras. The switcher is compatible with the Blackmagic Cloud, so your program recordings can be available immediately from anywhere around the globe. The switcher features an all-new button layout, and it's made from polycarbonate material, so it's much lighter than its predecessor. It provides numerous enhancements to the layout with professional buttons, LCD label displays, and an easy-to-navigate button layout.l Video Switcher

FEATURES

• 8-Input 3G-SDI 1080p60 Live Switcher

• Redesigned Buttons and Layout

• Record Each Input to Separate Files

• Supports Remote Internet Cameras

• Streaming Support, USB & M.2 Recording

• Blackmagic Cloud Integration

• Up to 16 Multiview Output Sources

• Audio Mixing, Transitions, T-Bar, AUX

• Customizable Electronic LCDs

• Camera Control, Timecode, Talkback

SPECIFICATIONS

• Model : ATEM Television Studio HD8 2TB

• Type : HD Live Production Video Switcher

• Channels : 8 x Video Inputs, 12 x Video Outputs

• Video Format : Up to 1080/60fps

• Video Inputs : 8 x BNC (3G-SDI)

• Video Outputs : 8 x BNC (3G-SDI aux), 3 x BNC (3G-SDI aux/program), 1 x HDMI (multi-view), 1 x BNC (SDI multi-view)

• Audio Inputs : 2 x XLR, 1 x Dual RCA Stereo

• Audio Outputs : 4 x 1/4"

• Sync : 2 x BNC (ref in, out), 2 x BNC (timecode in, out), 2 x BNC (MADI in, out)
  Headphones : 1 x 5-pin XLR (rear, talkback)

• USB : 2 x USB-C

• Other I/O : 4 x RJ-45 (10G ethernet), 1 x RJ-45 (external talkback), 1 x RJ-12 (RS-422)
  Software : ATEM Software Control Panel (mac/windows)

• Features : Built-in 2TB Internal Storage, Transition Lever, LCD Display, & 2 x Media Players

• Power Source : Standard IEC AC Input, 4-pin XLR DC Input

• Height : 6.38"

• Width : 23"

• Depth : 14.8"

• Weight : 14.9 lbs
