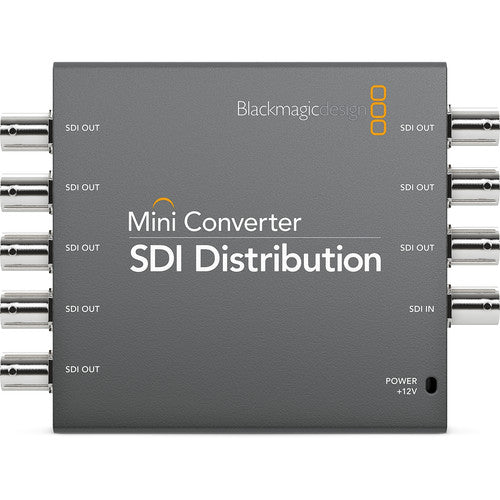

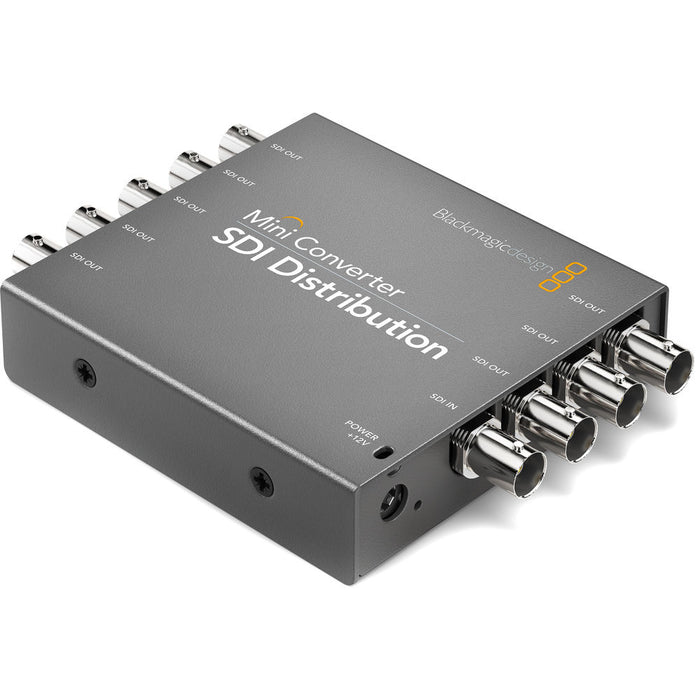

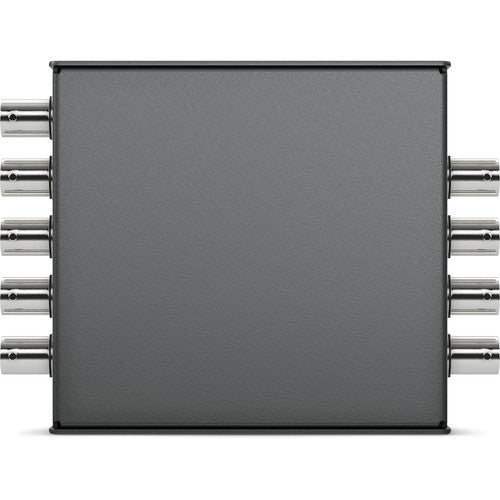

Blackmagic Design Mini Converter SDI Distribution

The Blackmagic Design Mini Converter SDI Distribution boasts an impressive degree of video-distribution in a compact and portable design. This SDI distribution box features a single SDI input, which is then sent out to all eight SDI outs, allowing for simultaneous monitoring of a single video source on a wide variety of different destinations — from decks to monitor walls, to switchers, and more. A feature that especially impressed the pro video experts at Music Bliss was the Mini Converter SDI Distribution's ability to automatically adjust to different video input changes, accommodating formats up to 1080p60 and switching all 8 re-clocked outputs to match, in addition to ancillary data, ASI, and embedded audio format support. From video conversion to sync generators and more, Blackmagic Design’s Mini Converter units pack an incredible degree of pro-grade functionality into an eminently portable form factor!

FEATURES

• SDI distribution box that outputs a single source to 8 different outputs

• Automatically switches between all video formats up to 1080p60, including all ASI, ancillary, and embedded audio formats

• No external controls — simply plug in your input and outputs and the box does the rest

• Internal USB connector for software updates

SPECIFICATIONS

• Type : SDI Distribution Box

• Video Formats : 1080p/60fps

• Video Inputs : 1 x BNC (SDI)

• Video Outputs : 8 x BNC (SDI)

• Form Factor : Portable

• OS Requirements - Mac : macOS 10.15 or later

• OS Requirements - PC : Windows 10 (64-bit)

• Power Source : 12V DC power supply (included)

• Height : 0.90"

• Width : 4.80"

• Depth : 3.63"

• Weight : 8.47 oz
