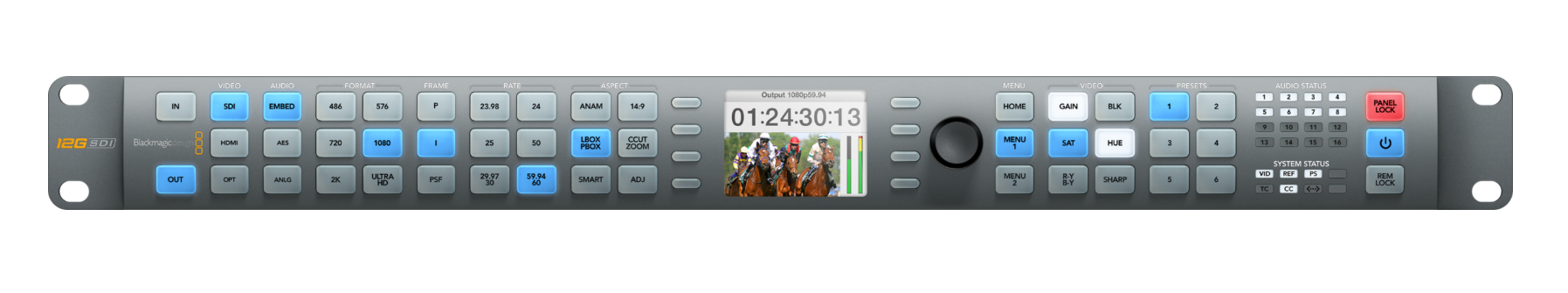

Blackmagic Design Teranex AV Standards Converter

Blackmagic Design’s Teranex AV leverages the company’s patented Teranex processing to provide high-quality, low-latency standards conversion between all SD, HD, and Ultra HD formats. Teranex AV’s connectivity comprises HDMI 2.0a, 12G-SDI, and quad SDI outputs for video walls. You also get XLR, AES/EBU, and RCA audio connectors, 16 channels of frame-accurate audio conversion and full audio channel remapping, and an optical fiber cage for adding SMPTE-compatible fiber-optic SDI modules. Internal still store and live freeze frame modes ensure flexible operation. Moreover, Teranex AV retains all ancillary data during conversion, such as time code and subtitles. You also get a reference input and output for frame synchronization and sync generation, along with built-in video test pattern generation and audio test tones and Gigabit Ethernet connectivity for seamless remote control. Complete with an intuitive control panel and built-in LCD monitor, Teranex AV is a top-quality standards converter and a must-have part of any broadcaster or A/V professional’s toolbox.

FEATURES

• Patented Teranex processing provides high-quality standards conversion between all SD, HD, and Ultra HD formats

• Low, 67ms latency enables real-time conversions for live productions and events

• Conversions retain time code, subtitles, closed captioning, and other ancillary data

• Delivers extreme-quality up, down, cross, and standards conversions

• Optical-quality scaling algorithms provide sharp, detailed conversions between unequal  D3Abr cxZ
• PixelMotion de-interlacing algorithms produce perfect progressive frames for conversion

• Cadence detection, removal, and insertion to certify clean, stutter-free results when converting between different frame rates

• Still store mode captures video frames and retains them in memory

• Live freeze mode holds any current frame on-screen until you switch to a different video output, black frame, or still store image

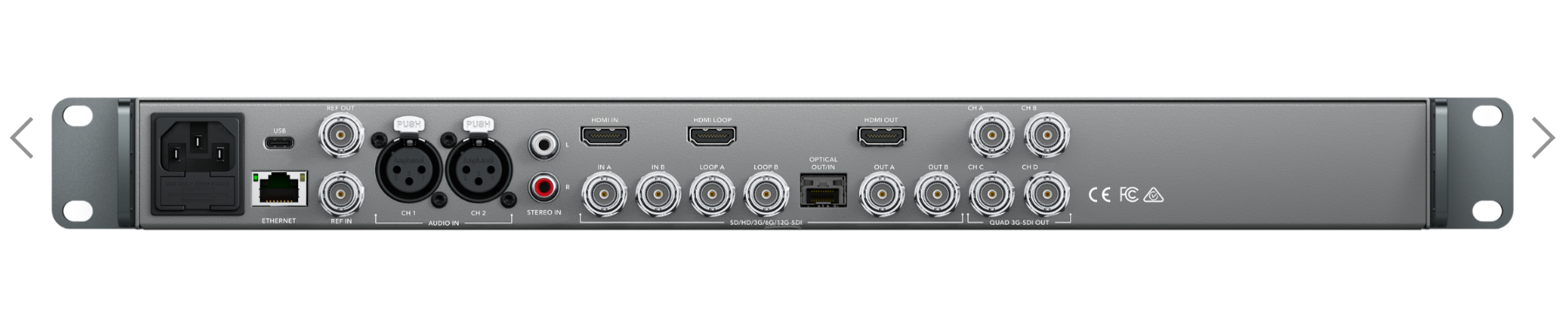

• HDMI 2.0a and 12G-SDI in, out, and loop-through connections

• XLR, AES/EBU, and RCA audio connectors

SPECIFICATIONS

• Type : Teranex AV Standards Converter

• Video Formats : Up to 2160p60

• Sync : 2 x BNC (reference in, out)

• Video Inputs : 1 x HDMI, 2 x BNC (SDI A, B)

• Video Outputs :    1 x HDMI, 2 x BNC (SDI A, B), 4 x BNC (quad 3G-SDI)

• Video I/O : 2 x BNC (SDI A loop, B loop), 1 x HDMI (loop)

• Audio Inputs : 2 x XLR, 1 x Dual RCA Stereo, 1 x Optical Toslink

• Audio Outputs : 1 x Optical Toslink

• USB : 1 x USB-C

• Other I/O : 1 x RJ45 (ethernet)

• Form Factor : Rackmount, 1U

• OS Requirements - Mac : MacOS 10.15 Catalina, 11.1 Big Sur or later

• OS Requirements - PC : Windows 10 (64-bit)

• Power Source : Standard IEC AC Input

• Height : 1.75"

• Width :   19"

• Depth :   5"

• Weight : 4.4 lbs
