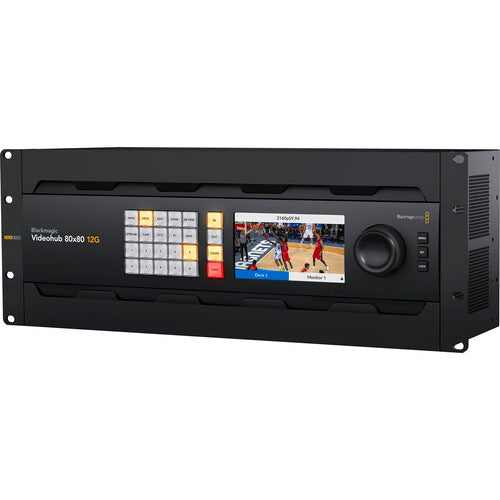

Blackmagic Design Videohub 80x80 12G Video Router

If confusing SDI cabling routes are plaguing your studio paths, let the Blackmagic Design Videohub 80x80 12G video router be your Grand Central Station. A streamlined workflow for all the SDI ins and outs of your live production or broadcast system, the Videohub 80x80 12G sports 80 SDI input and 80 SDI outputs that allow you to send SD, HD, and Ultra-HD video with absolutely zero latency. And with this system running your setup, the complexities of pairing sources are virtually eliminated since the Videohub 80x80 12G allows you to manage the intricacies of each connection electronically. Monitors now have access to any SDI source in your studio; multi-hyper deck and multi-streaming processor setups run with greater efficiency; and input expansions for your separate ATEM devices are closer than ever. Plus, the intuitive control layout and LCD make everything easily navigable right from an existing 4RU space or tech cart. Whatever the SDI demands of your production space may be, the Blackmagic Design Videohub 80x80 12G video router from Music Bliss is a surefire way to manage it all with streamlined operation.

FEATURES

• 80 In x 80 Out 12G-SDI connections for all your compatible broadcast/production sources

• Delivers SD, HD, and Ultra-HD results in 10-bit color depth and formats up to 2160p60

• Integrated SDI re-clocking eliminates the signal degradation of long cables

• Phenomenal SDI compliance with enormous HD, 2K, and 4K standards compatibility

• TV-standard 48Hz and 24-bit audio sampling with synchronized 32-channel embedded audio

• Reference inputs and outputs for Tri-sync/Black/Burst and reference terminating loop outputs

• Ethernet 10/100/1000 BASE-T connectivity and a USB-C for computer connections

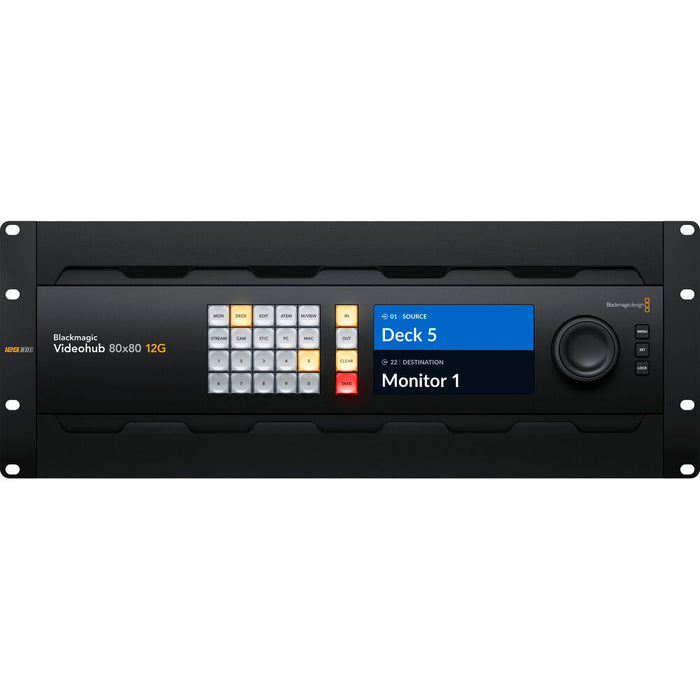

• LCD screen displays In/Out connections and offers instant monitoring

• Large spin knob with built-in electronic clutch delivers effortless navigation

SPECIFICATIONS

• Type : Rackmount Videohub Switcher

• Channels : 80x80

• Video Format : 4K/2K/1080/720 (up to 60fps)

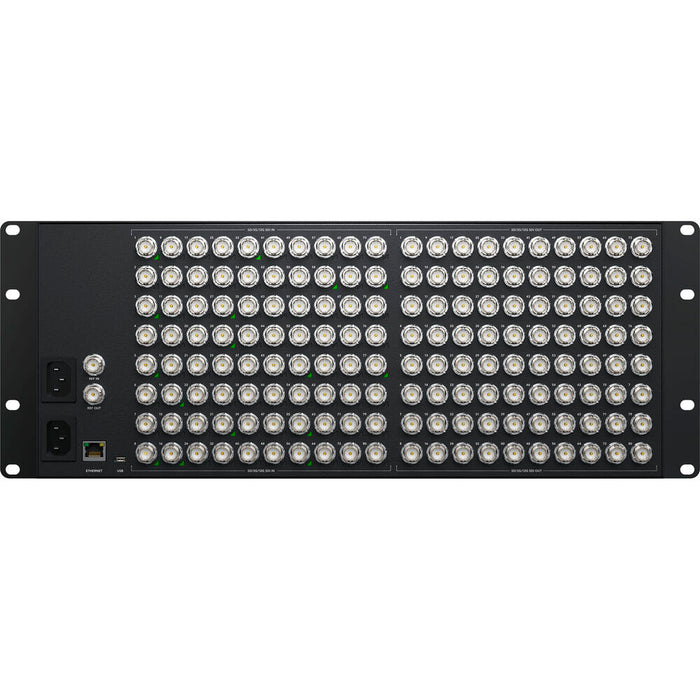

• Video Inputs : 80 x BNC (12G-SDI)

• Video Outputs : 80 x BNC (12G-SDI)

• Sync : 2 x BNC (reference in, out)

• USB : 1 x USB-C (rear)

• Other I/O : 1 x RJ-45 (10/100/1000Base-T)

• Features : Built-in 5" LCD Display

• Power Source : 2 x Standard IEC AC Inputs

• Height :  6.96" (4U)

• Width : 19"

• Depth : 9.37"

• Weight : 24 lbs
