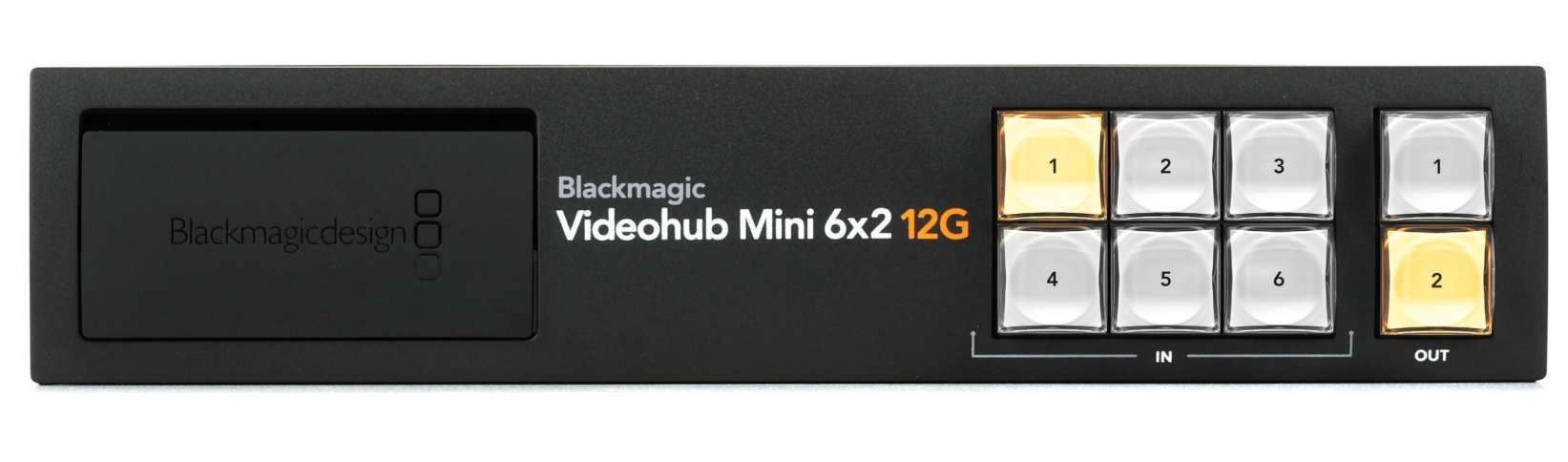

Blackmagic Design Videohub Mini 6-in x 2-out 12G Video Router

When reliable, compact video routing is a top consideration, Music Bliss content creators reach toward Blackmagic's VideoHub Mini video routers. Loaded with six SDI video inputs, two SDI video outputs, and modern USB-C interfacing, you'll find the VideoHub Mini a breeze to manage in any work setting — and it's seamlessly integrated into your pre-existing system courtesy of a 2/3 rack width size. Maintaining authority over your output is just as easy, given familiar front-panel controls and supported Ethernet control for on-the-fly adjustments. Modern inclusions from SDI re-clocking to USB-C webcam support guarantee you'll have an optimal output no matter your particular use case. Finally, the Videohub Mini's compact aluminum chassis ensures the unit remains at the ready even in the toughest working environments.

FEATURES

• Compact, zero-latency video router for high-profile content creators, broadcasters, live streamers, and beyond

• 6 SDI video inputs and 2 outputs supply a clear and concise signal with front-panel switching for easy access

• 2/3 rack width size ensures seamless integration with the rest of your production rig

• Convenient front panel controls for on-the-fly routing

• Emergency 12G-SDI connection and USB-C interfacing for seamless use with external gear

• Onboard SDI reclocking

• External Ethernet control for convenient use in busy environments

• Webcam out, software updates, and Videohub Setup Utility available via USB-C connectivity

SPECIFICATIONS

• Type : Compact Zero-latency Video Router

• Channels : 6 x Video In, 2 x Video Out

• Video Format : Up to 4K (60fps)

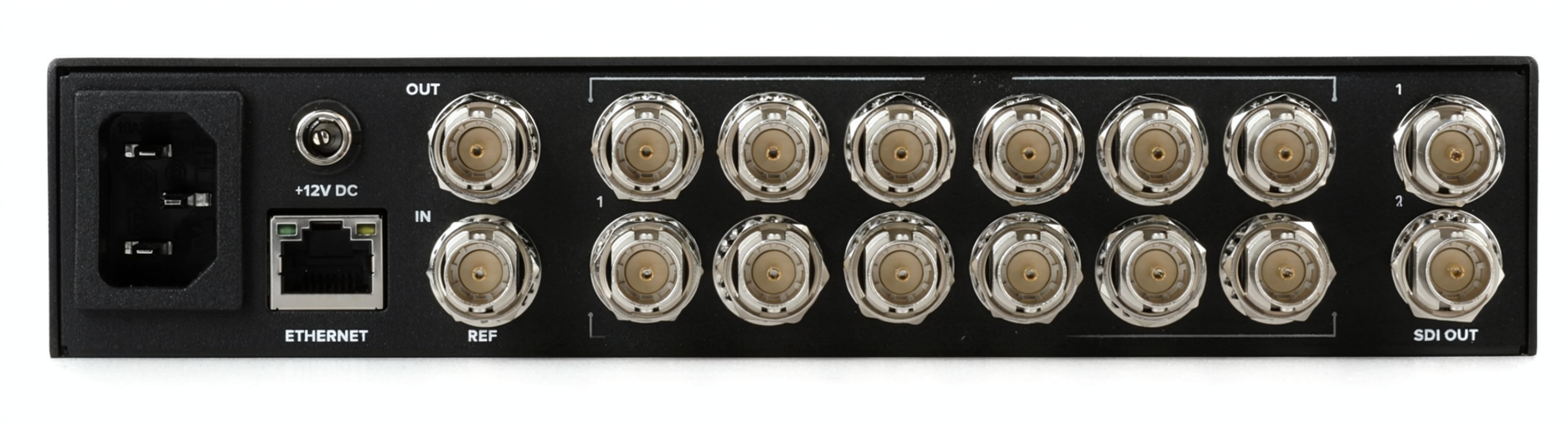

• Video Inputs : 6 x BNC (12G-SDI), 1 x BNC (front, 12G-SDI)

• Video Outputs : 2 x BNC (12G-SDI), 6 x BNC (SDI, loop), 1 x BNC (front, 12G-SDI)

• Sync : 2 x BNC (reference in, out)

• USB : 1 x USB-C 3.1 Gen 1 (front, webcam/control)

• Other I/O : 1 x RJ45 (10/100/1000 base-t)

• Software : Router Control

• Power Source : Standard IEC AC Input, 12V DC Input

• Height : 1.82"

• Width : 8.27"

• Depth : 6.82"

• Weight : 2.91 lbs
