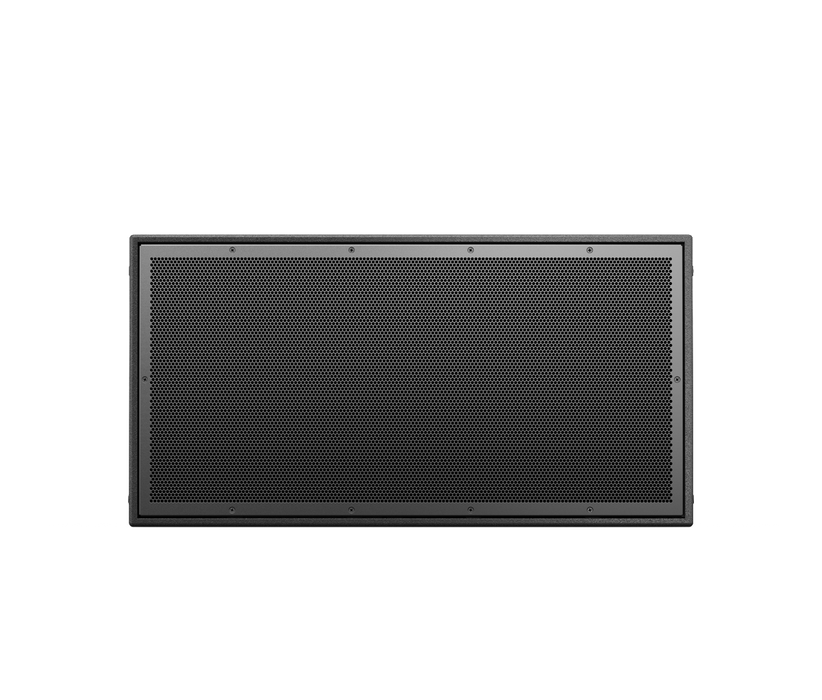

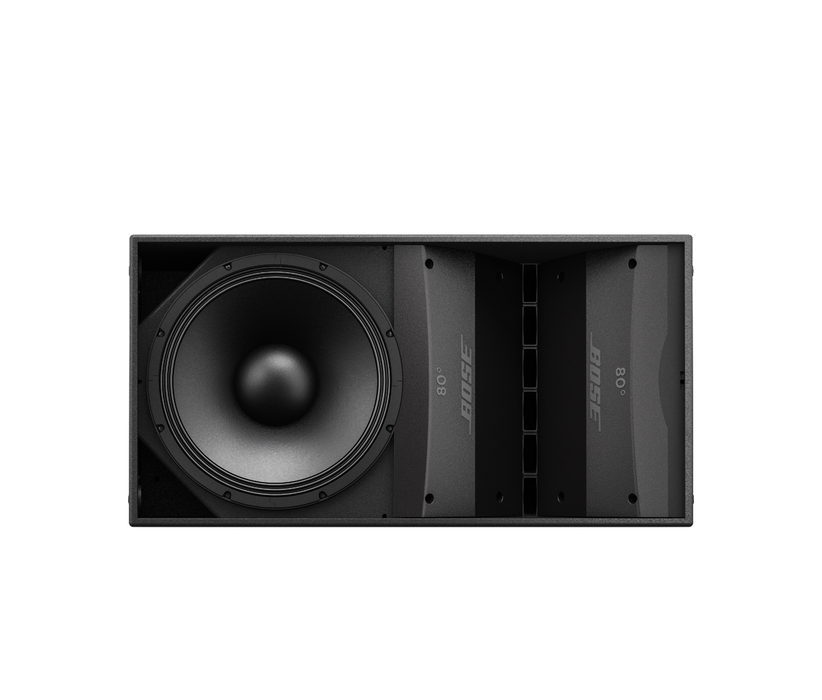

Bose ArenaMatch AM10/80 DeltaQ Array Loudspeaker

Bose Professional ArenaMatch loudspeakers bring proven DeltaQ sound quality and flexibility to outdoor installations — sports stadiums, arenas, outdoor entertainment centers, and more. Rated for direct-exposure outdoor installations, ArenaMatch DeltaQ modules make it easy to create outdoor loudspeaker arrays that bring consistent, intelligible sound to every listener. Nine coverage patterns are available. Choose from modules with 10°, 20°, or 40° vertical coverage and easily swap between 60°, 80°, or 100° horizontal waveguides to build arrays that are lighter, require less installation time, and can lower overall system costs by delivering full coverage with fewer modules.

FEATURES

• Improve sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or “Q,” to vary in each module to more precisely match coverage to audience area
• Easily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays
• Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers
• Rated for direct-exposure outdoor installations, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover
• Provide full coverage with fewer modules — 10°, 20°, and 40° modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays
• Reduce commissioning time by using 40° modules for point-source applications and 10°, 20° and 40° modules for line arrays — all with the same transducers for consistent tonal balance
• Adapt to a variety of configurations — all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs
• Streamline the design process by combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSP
• Save time during installation using Bose Professional accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames
• EN 54-24 certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics.

SPECIFICATIONS

• COMPLIANCE
  EN 54-24 Certified
  Yes
  Safety Agency Ratings
  EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
• PHYSICAL
  Colors
  Black
  Enclosure Material
  Exterior-grade birch plywood
  Grille
  3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
  Ingress Protection
  IP55 per EN60529; IP33C per EN 54-24
  Product Dimensions (H×W×D)
  16.1 in × 30.8 in × 16.5 in (409 mm × 783 mm × 420 mm)
  Net Weight
  80.0 lb (36.3 kg)
  Shipping Weight
  95.9 lb (43.5 kg)
• PERFORMANCE
  Frequency Range (-10 dB)
  55 Hz – 18,000 Hz
  Coverage, Horizontal
  60° (AM10/60), 80° (AM10/80), 100° (AM10/100)
  Calculated Maximum SPL @ 1 m
  AM10/60: 122 dB (LF) / 129 dB (HF) / 129 dB (passive). AM10/80: 122 dB (LF) / 128 dB (HF) / 128 dB (passive). AM10/100: 122 dB (LF) / 127 dB (HF) / 127 dB (passive)
  Nominal Impedance
  Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω
  Power Handling, long-term continuous
  Low Frequency: 600 W / High Frequency: 150 W / Passive 750 W
  Power Handling, Peak
  Low Frequency: 2400 W peak / High Frequency: 600 W peak / Passive: 3000 W peak
  Recommended Power Amplification
  Bi-amp, LF, 600 W – 1200 W / Bi-amp, HF,150 W – 300 W / Low-Z Passive, 750 W – 1500 W
  Recommended Signal Processing
  Presets in ControlSpace Designer software
  Sensitivity (SPL/1 W at 1 m)
  AM10/60: 94 dB (LF), 107 dB (HF), 100 dB (passive) / AM10/80: 94 dB (LF), 106 dB (HF), 99 dB (passive) / AM10/100: 94 dB (LF), 105 dB (HF), 98 dB (passive)
  Transformer Taps, 100V
  200 W, 400 W
  Transformer Taps, 70V
  100 W, 200 W, 400 W
  Coverage, Vertical
  10°
• TRANSDUCERS
  Crossover
  950 Hz, internal passive or external bi-amp (Bose Professional ControlSpace presets)
  High-Frequency
  6 × Bose Professional EMB2S titanium-diaphragm, neodymium compression drivers, 2 in (51 mm) voice coil
  Low-Frequency
  1 × Bose Professional LF14 neodymium 14 in (356 mm) woofer, 4 in (102 mm) voice coil
