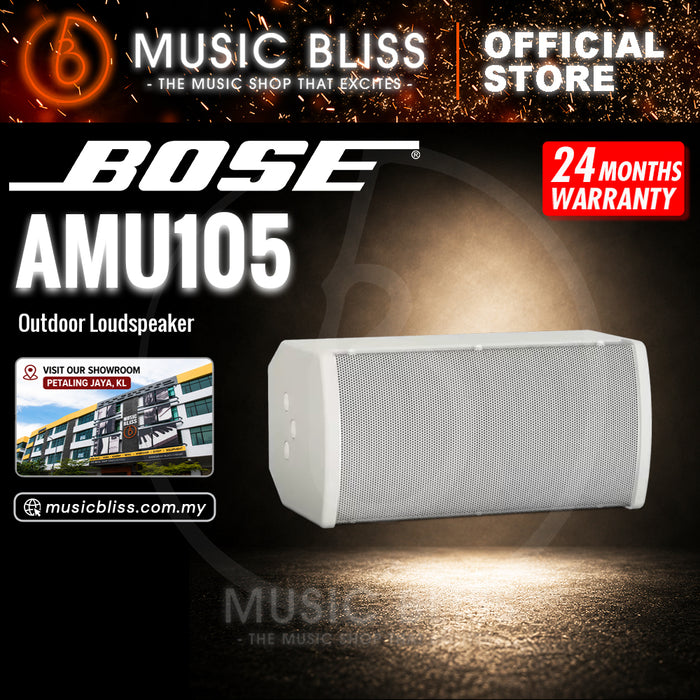

Bose ArenaMatch Utility AMU105 Outdoor Loudspeaker - White

Built for zone-fill coverage or high-SPL foreground music, Bose ArenaMatch Utility loudspeakers feature similar tonal balance to ArenaMatch array modules but in compact designs. They have the same EMB2S compression driver as ArenaMatch arrays, ensuring consistent sound, and the same IP55 weather rating. Deploy them for zone-fill coverage in sports stadiums, arenas, outdoor entertainment centers, and more. Or use them to provide intelligible, high-level sound in any outdoor area — from niche venues such as breweries and fairgrounds to larger settings like resorts and outdoor shopping centers. The AMU105 is an ultra-compact ArenaMatch Utility model for outdoor applications that require excellent audio from an unobtrusive loudspeaker. It provides wide, even coverage with a 100° x 100° constant-directivity high-frequency horn, 100 Hz – 16 kHz frequency response, 118 dB peak SPL, and supports the lowest vocal ranges with a Bose LF5 5.25-inch woofer.

FEATURES

• Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
• Deploy for high-level foreground music in any outdoor venue
• Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant coating on woofer cone, industrial polyurethane exterior coating, and molded cover to protect inputs
• Adapt to a variety of configurations — all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for each transducer for more consistent frequency and polar response
• Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSP
• Mount easily with included stainless-steel U-bracket; rear enclosure panel also includes M8 threaded inserts to accept third-party accessory mounting bracket
• Provide wide, even coverage with 100° x 100° constant-directivity high-frequency horn that provides the same coverage in either horizontal or vertical installation
• Perform in the most demanding applications with 100 Hz – 16 kHz frequency response and 118 dB maximum peak SPL
• Support lowest vocal range with 1x Bose LF5 5.25-inch woofer featuring a 1.5-inch long-excursion voice coil, which extends response to 90 Hz

SPECIFICATIONS

• Frequency Response (+/-3 dB) : 100 Hz to 16 kHz
• Nominal Coverage Pattern (H x V) : 100° x 100°
• Power Handling, peak : 400W
• Maximum SPL @ 1m : 110 db Free Field | 112 db Wall/Ceiling
• Nominal Impedance : 8 Ω
• Frequency Range (-10 dB) : 90 Hz to 16 kHz
• Power Handling, long-term continuous : 100 W
• Sensitivity : 90 db Free Field | 92 db Wall/Celling
• Maximum SPL @ 1m, peak : 116 db Free Field | 118 db Wall/Ceiling
