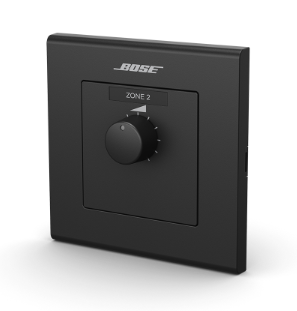

Bose ControlCenter CC-1 Zone Controller, EU - Black

Bose ControlCenter CC-1 zone controllers provide volume control for FreeSpace®, PowerShare, and ControlSpace® products. Three models are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan.

FEATURES

• ControlCenter Series
  - The ControlCenter series is a set of remote controls for use with Bose FreeSpace® amplifiers, PowerShare amplifiers, and ControlSpace® processors. The three models offer volume control (CC-1), volume plus A/B source selection (CC-2), and volume plus A/B/C/D source selection (CC-3).


• ControlCenter Models
  - North American and Japanese models are designed for use with Decora®-style wall plate covers (not included). The 86×86 mm European model is supplied as a finished wall plate.


• Custom Labels
  - Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.


• CV41 4-to-1 Converter
  - The CV41 4-to-1 converter facilitates homerun wiring of CC-1 controllers.

SPECIFICATIONS

• Electrical
  - Connectors : Two (2) RJ-45, allows for daisy-chaining, TIA/EIA 568B wiring standard
  - Settings : Channel selection via 8 DIP switch bank
  - Type : Passive controller, linear potentiometer 0- 10 kΩ
  - Cable Requirement : Cat 5
  - Maximum Cable Length : 609 m (2000 ft) for FreeSpace and PowerShare amplifiers | 152 m (500 ft) for ControlSpace processors, using shielded cable | 30 m (100 ft) for ControlSpace processors, using unshielded cable


• Phsyical
  - Colors : Black or White
  - Electrical Box Size : 1-gang
