Bose ControlSpace CC-16 Zone Controller - White

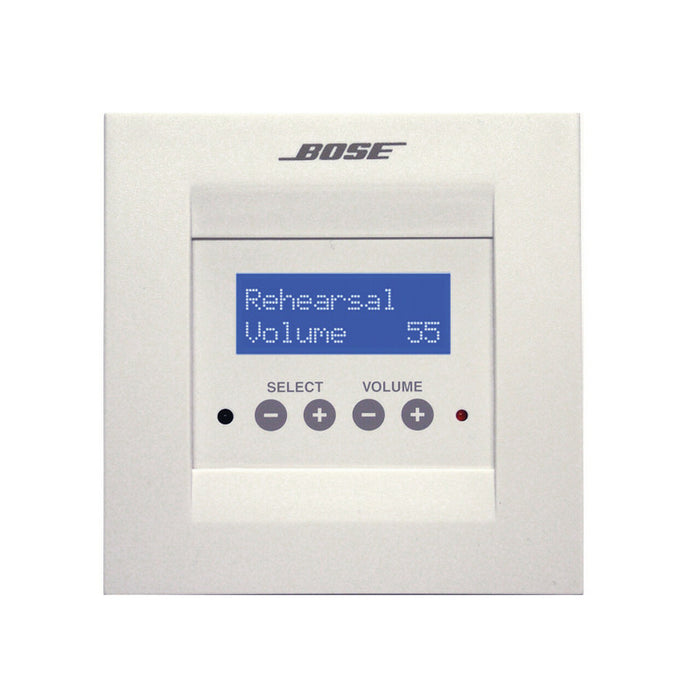

The Bose® ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting "scenes" or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.

FEATURES

• Elegant styling with intuitive controls for end user operation
• 122 x 32 pixel backlit blue LCD
• Sealed VOLUME +/- and SELECT +/- pushbuttons
• Simplified drag-and-drop setup using ControlSpace® Designer™
• DIP switch addressing on back of unit
• Programmable control of system elements (switching of audio sources, system configurations)
• Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users
• Customizable on-screen wording provides easier system operation
• Programmable software lock out
• Fits into a standard 2-gang electrical wall box

SPECIFICATIONS

• Connectors : Fixed 6-position terminal connector for power (Vin+, GND) and RS-485 (A, B)
• Maximum Cable Length : 2000' (609 m), twisted pair, daisy-chain wired configuration
• Maximum Number of Units Per System : 15 per ControlSpace ESP processor
• Power Supply Requirement : 8 - 18 VDC, 100 mA
