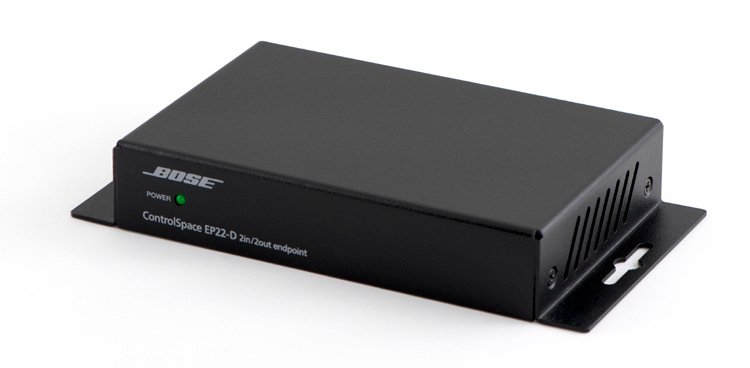

Bose ControlSpace EP22-D 2x2 Dante Endpoint

The Bose® ControlSpace® EP22-D Dante endpoint is a convenient and cost-effective way to add 2-in/2-out analog audio channels to a Dantebased networked audio system. The small form factor of the EP22-D with PoE power capability makes it easy to locate the endpoint close to analog devices, helping to reduce costly and interference-prone analog wiring.

FEATURES

• Small form factor, can be unobtrusively located near analog devices
• Integrated discovery, routing, configuration and control using
• ControlSpace Designer™ software
• Dual power options (DC or PoE) means the EP22-D will work with
• either standard or PoE Ethernet switches
• Three input gain settings for common line and microphone sources.
• Channel gain is individually adjustable via ControlSpace Designer
• software
• +24VDC Phantom power
• Separate analog output gains to accommodate both consumer and
• professional line-level requirements

SPECIFICATIONS

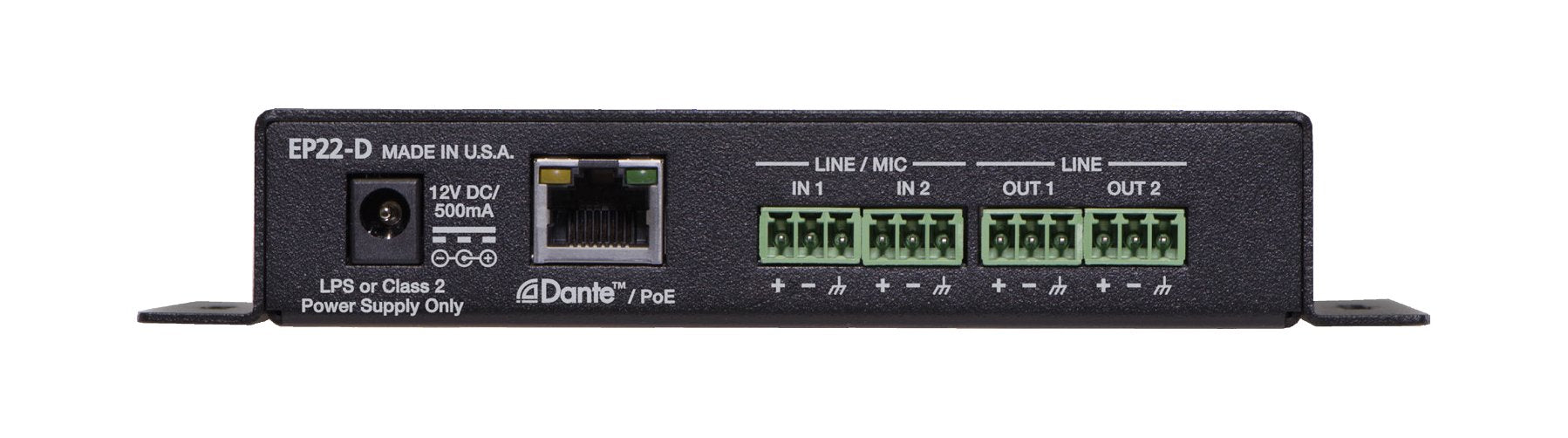

• Audio Inputs
  - Input Channels : Two (2) analog, balanced microphone/line level
  - Connectors : Two (2) 3.81 mm Euroblock, 3-pin
  - Phantom Power : +24VDC, software selectable per input
  - Gain Settings : 0 / +25 / +40 dB, software selectable
  - Input Impedance : > 1.8 kΩ at any gain setting
  - Equivalent Input Noise : -115 dBu (at +40 dB gain)
  - Maximum Input Level : +12 dBu (at 0 dB gain)


• Audio Outputs
  - Output Channels : Two (2) analog, balanced line-level, with automatic muting on loss of Dante signal
  - Connectors : Two (2) 3.81 mm Euroblock, 3-pin
  - Output Gain : 0 / +10 dB, software selectable
  - Output Noise : < –90 dBu @ 0 dB gain
  - Maximum Output Level : +12 dBu
  - Output Impedance : 200 ohms (100 ohms unbalanced)


• Software Application
  - ControlSpace® Designer™ software v4.2 or later


• General
  - Digital Conversion : 48 kHz / 24-bit
  - System THD : < 0.01 % (at any gain, input signal 3 dB below maximum)
  - PoE Class : Class 0 802.3af PoE PD compliant
  - Certifications : FCC Part 15 Class A, CE (EN 55022 Class A)
  - Dimensions : 1.06" H x 6.45" W x 3.45" D (27 mm x 164 mm x 88 mm)
  - Operating Temperature : 32 °F – 104 °F (0 °C – 40 °C)
