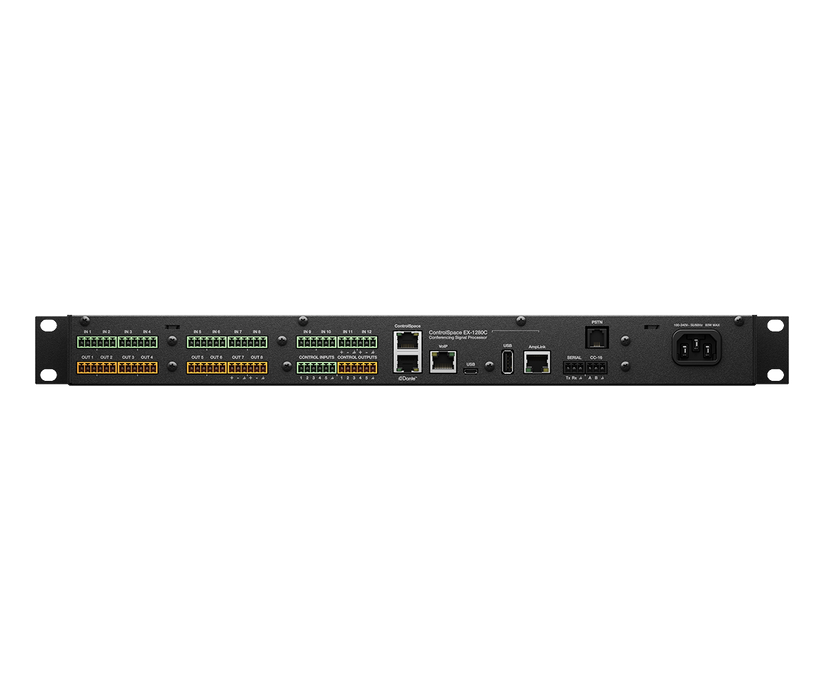

Bose ControlSpace EX-1280C Conferencing Sound Processor

A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support rooms of various sizes and the flexibility to meet future needs. With an open-architecture, all-in-one design, the ControlSpace EX-1280C offers signal processing for integrated-microphone audio conferencing applications. As the highest-capability processor of the ControlSpace EX family, the EX-1280C includes 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellers (AEC), and 64 x 64 Dante® connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.

FEATURES

• All-in-one design supports simultaneous VoIP, PSTN and USB soft codecs in a single 1RU model
• 12 acoustic echo cancellers (AEC) route to both analog and Dante® inputs; multiple references allow one EX-1280C processor to support multiple rooms or AEC-sharing across multiple processors
• Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings
• 2-line VoIP with an internal web interface allowing IT personnel to configure VoIP parameters without design file access or integrator involvement
• PSTN connection (RJ-11) for worldwide POTS/analog telephone systems
• USB connection facilitates easy integration with PC soft codecs
• Dante audio networking supports 64 x 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones
• Bose AmpLink port provides 8-channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose amplifiers

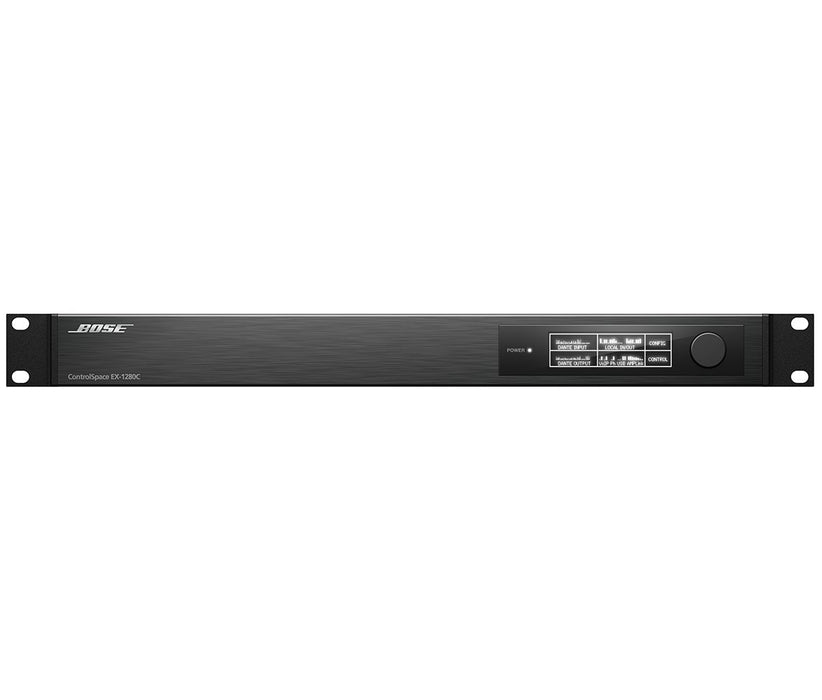

• Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity
• GPIO (5 in/5 out) for external connections including microphone pushbuttons or driving microphone LEDs

SPECIFICATIONS

• Signal Processor : 32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz
• Dynamic Range : > 115 dB A-weighted 20 Hz – 20 kHz, analogy input to analog output
• Output Channels : 8 balanced, line level
• Frequency Response : 20 Hz to 20 kHz (+0.3 dB/-0.1 dB)
• Input Channels : 12 balanced, mic/line level
• PC Configuration Software : ControlSpace Designer software version 5.5 or later
