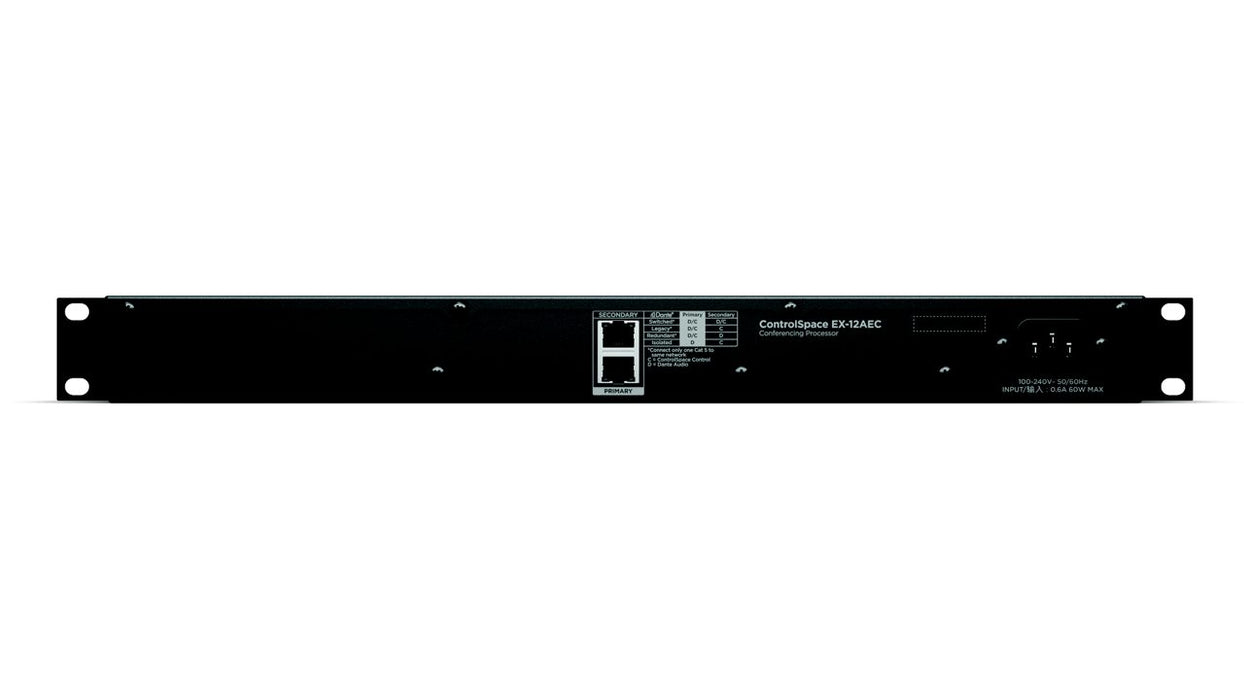

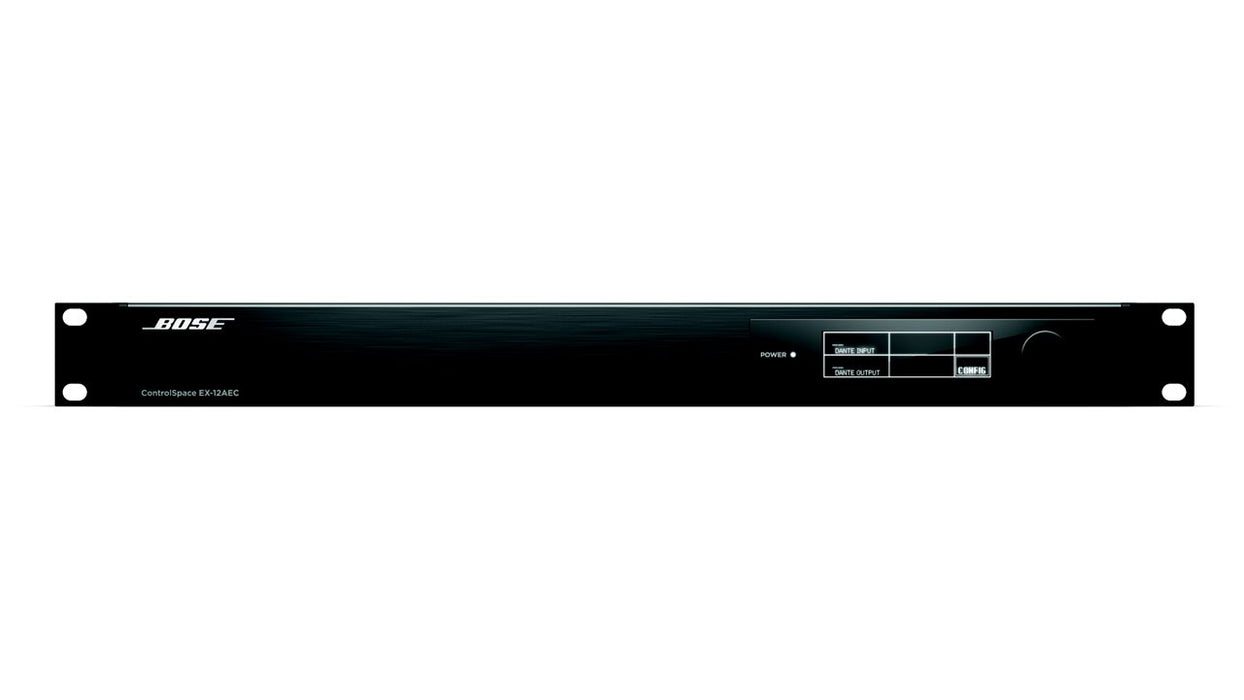

Bose ControlSpace EX-12AEC Conferencing Signal Processor

With an open-architecture design, twelve acoustic echo cancellers (AEC), and 16 x 16 Dante® connectivity, the ControlSpace EX-12AEC conferencing processor provides cost-effective, robust AEC for conference rooms using ControlSpace EX conferencing processors.

FEATURES

• Channel AEC expansion : with multiple references to complement ControlSpace EX-1280C processors in larger systems
• Adaptable noise cancellation : with non-linear processing and comfort noise on each AEC channel enhances clarity
• Dante audio networking : supports 16 x 16 audio channels for connection to an EX-1280C processor and native Dante-integrated microphones
• Front-panel interface : features a large OLED display and rotary encoder for setting network parameters and monitoring channel activity

SPECIFICATIONS

• Signal Processor : 32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz
• Acoustic Echo Canceling Channels : 12
• PC Configuration Software : ControlSpace Designer software version 5.5 or later
• Maximum Calculation : 3.6 GIPS / 2.7 GFLOPS
• Audio Over IP : Dante, 16 x 16, primary/secondary, rotatable to AEC
