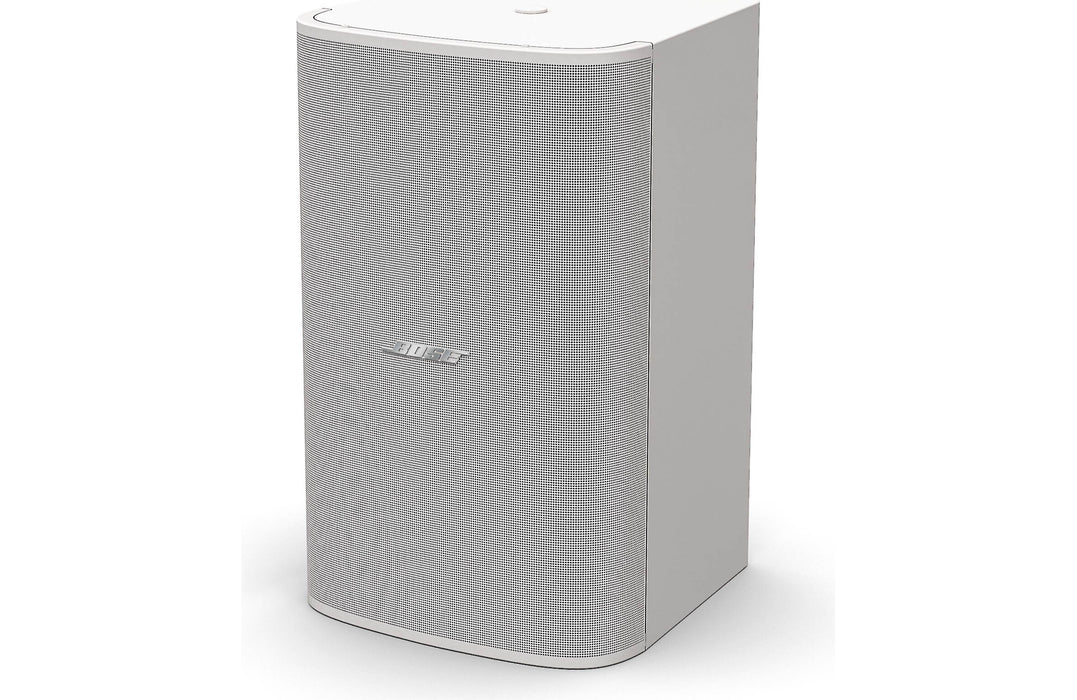

Bose DesignMax DM10S-Sub Subwoofer - White

Delivering rich low-end performance, 300-watt DM10S-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The surface-mounted DM10S-SUB has a 10-inch woofer, 35 Hz – 125 Hz frequency range, and locks onto a hidden QuickHold U-bracket. DesginMax subwoofers complement and enhance any DesignMax installation.

FEATURES

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver rich bass performance with custom Bose drivers; for optimal performance use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

SPECIFICATIONS

• Frequency Response (+/-3 dB) : 41 - 108 Hz
• Nominal coverage (H x V) : Onmidirectional below 200 Hz
• Power Handling, peak : 1200 W
• Maximum SPL @ 1m : 115 dB
• Frequency Range (-10 dB) : 35 - 125 Hz
• Power Handling, long-term continuous : 300 W
• Sensitivity (SPL/1W @ 1 m) : 90 dB
• Nominal Impedance : 8 Ω (transformer bypass
