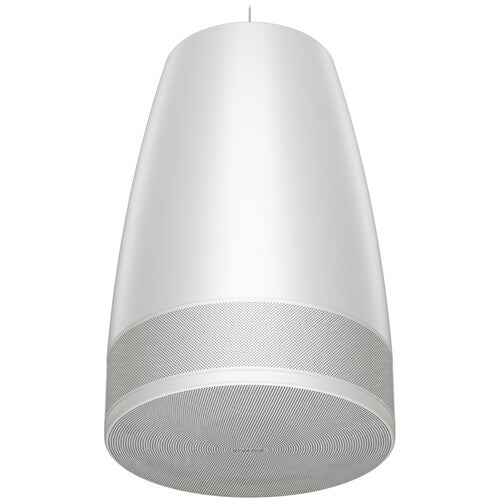

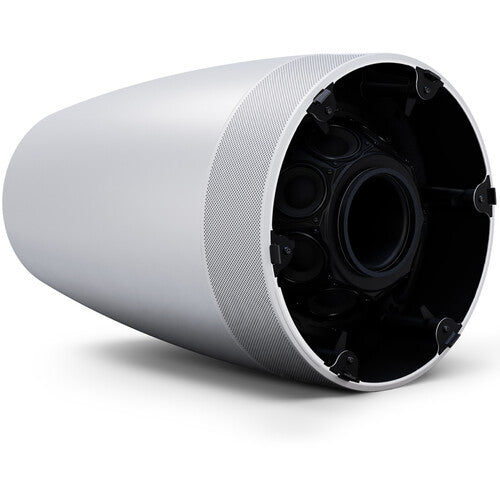

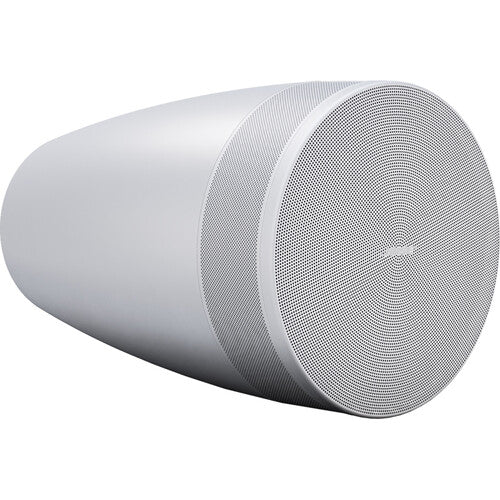

Bose DesignMax Luna DML88P Indoor Pendant-mount Loudspeaker - White

DesignMax Luna makes it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs — even in challenging ceiling conditions — while concealed wiring keeps everything looking clean.

FEATURES

• Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zones
• Integrated 8” woofer extends down to 40 Hz—no subs needed
• Wide-throw 140° coverage reduces speaker count and installation costs
• Flexible mounting lets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs
• Streamlined design with concealed wiring and premium finish options
• Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
• Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter

SPECIFICATIONS

• COMPLIANCE
  Safety Agency Ratings
  UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant
• PHYSICAL
  Colors
  Black (similar to RAL 9005), white (similar to RAL 9003), paintable
  Enclosure Material
  Engineered plastics
  Environmental
  Indoors only; UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant
  Grille
  Perforated steel, powder-coated finish, paintable
  Logo
  Rotatable, removable
  Suspension/Mounting
  (1) 3-hole suspension cable attachment point
  Product Dimensions (H×W×D)
  308 mm × 492 mm (12.1 in × 19.4 in), loudspeaker diameter x depth
  Net Weight
  10.0 kg (22.0 lb)
• PERFORMANCE
  Frequency Range (-10 dB)
  40 Hz – 20,000 Hz
  Coverage, Horizontal
  140° conical
  Calculated Maximum SPL @ 1 m
  107 dB
  Nominal Impedance
  8 Ω (transformer bypass)
  Power Handling, long-term continuous
  140 W
  Power Handling, Peak
  560 W
  Recommended Signal Processing
  Not required, Bose Professional EQ voicing and SmartBass processing available
  Sensitivity (SPL/1 W at 1 m)
  85 dB
  Transformer Taps, 100V
  25 W, 50 W, 100 W, bypass
  Transformer Taps, 70V
  12 W, 25 W, 50 W, 100 W, bypass
• TRANSDUCERS
  High-Frequency
  8 × 2.0-in (51 mm) drivers in circular array Low-Frequency
  Low-Frequency
  1 × 8 in (203 mm) woofer
