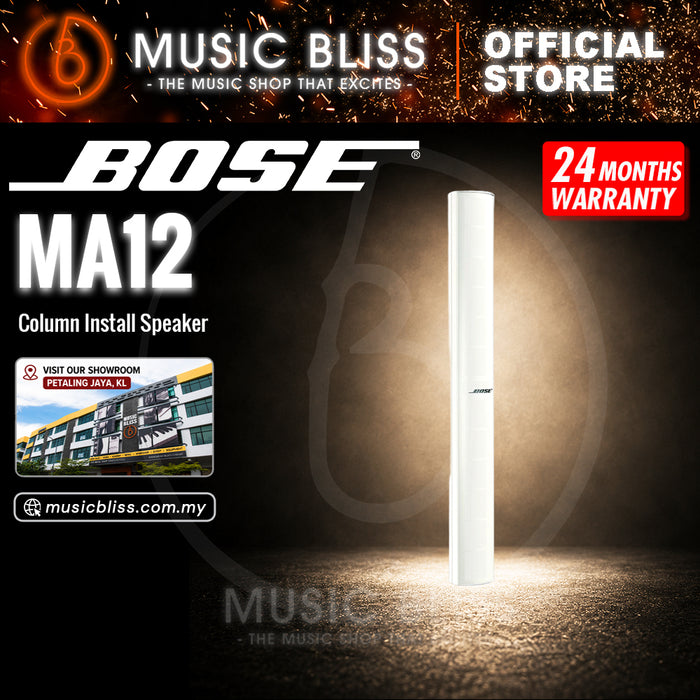

Bose Panaray MA12 Modular Vertical Line-Array Loudspeaker - White

Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

FEATURES

• Twelve 2.25" (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
• Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
• 145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration
• Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement
• Optional brackets allow easy installation of single-, double- or triple-stack line array modules

SPECIFICATIONS

• Frequency Response (+/-3 dB) : 155 Hz - 12 kHz
• Frequency Range (-10 dB) : 100 Hz - 16 kHz
• Nominal Dispersion : 145° H x 20° V
• Long-Term Power Handling : 300 W (1200 W peak)
• Sensitivity (SPL / 1 W @ 1 m) : 88 dB SPL
• Maximum SPL @ 1 m : 113 dB SPL (119 dB SPL peak)
• Nominal Impedance : 8 Ω
