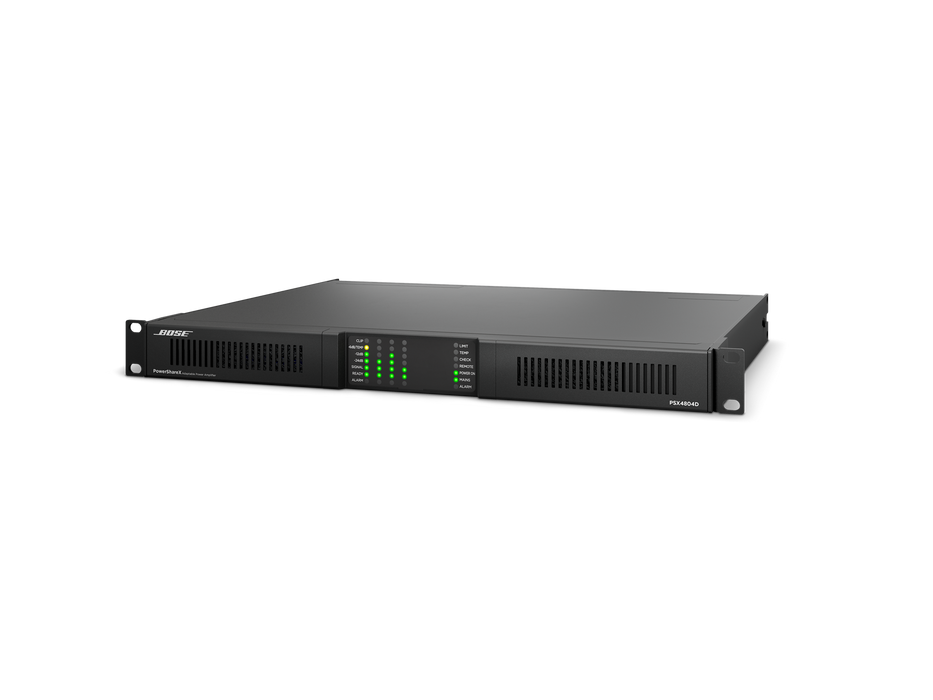

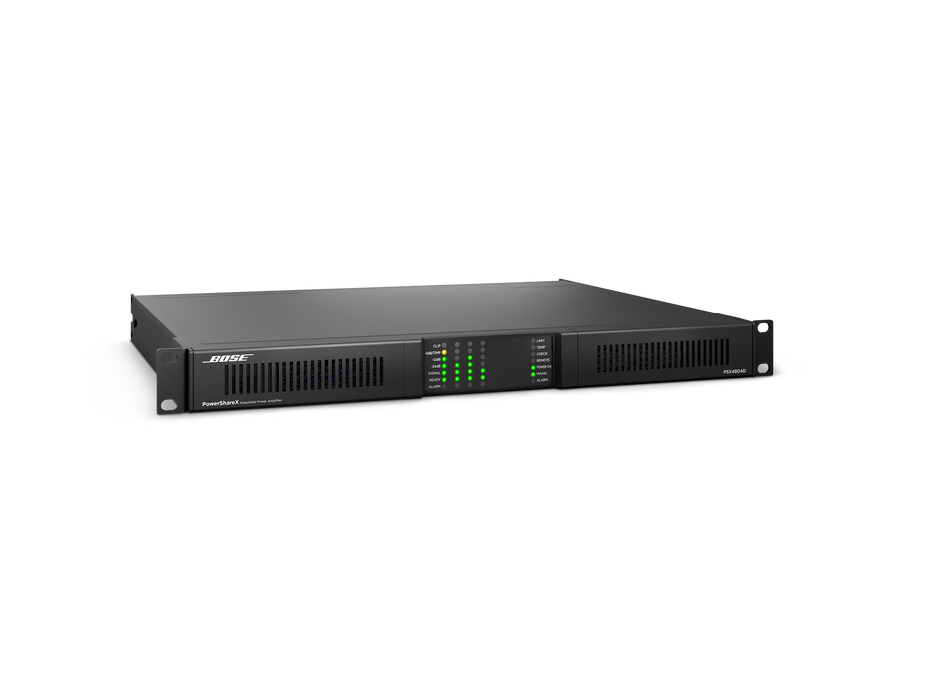

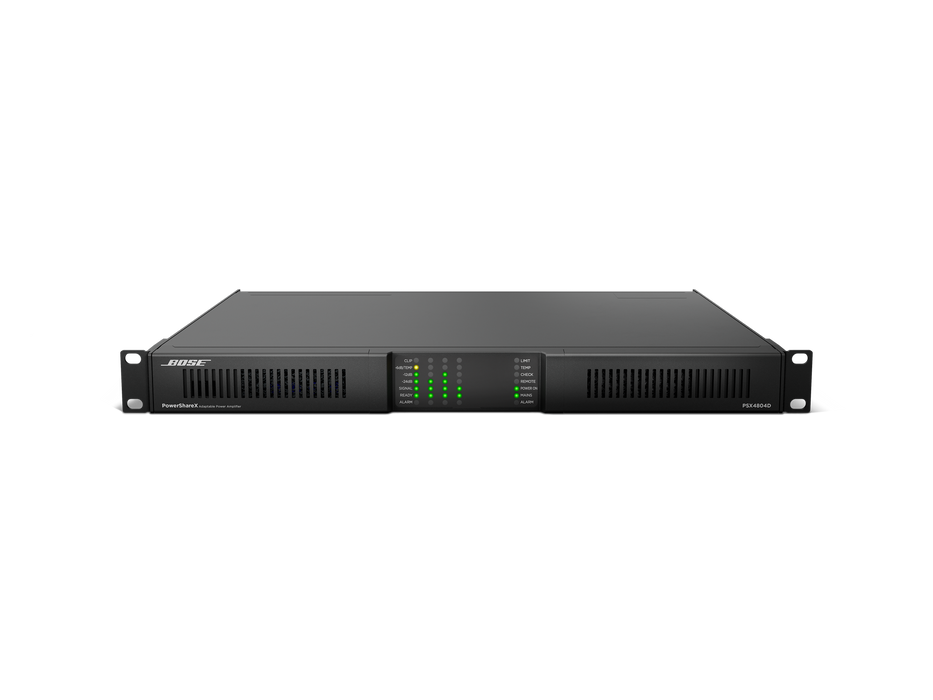

Bose PowerShareX PSX4804D 1200-watt 4-channel Power Amplifier

The Bose PowerShare PSX4804D adaptable power amplifier ups the ante on the proven PowerShare series by adding onboard DSP, Bose Professional certified loudspeaker presets, native Dante integration, and more. As its name suggests, the unit is equipped with Bose’s patented PowerShare technology, allowing you to utilize every watt of power on all channels. It integrates perfectly with ControlSpace, enabling installers to get up and running immediately. Plus, the channel status LEDs provide at-a-glance status updates for clipping, thermal warnings, output headroom meters, input signal presence, ready status, and channel fault alarm indicators. Bose PowerShareX Series amplifiers are suitable for commercial installations, houses of worship, restaurants, fitness facilities, and retail spaces — believe us, your listeners, clients, and speakers will thank you!

FEATURES

• 4,800W power amplifier for fixed installations
• PowerShare operation shares the power across all output channels
• Handles both low- and high-impedance loads
• Onboard DSP and Bose Professional-certified presets enable optimal speaker performance
• Full ControlSpace integration makes it easy to setup, control, and monitor the system
• 4 Dante input channels enable a fully digital setup
• 4 analog inputs effortlessly handle line-level sources
• GPIO connections supply remote level control, on/off switches, and alarm triggers
• DIP switches customize the system’s output and performance

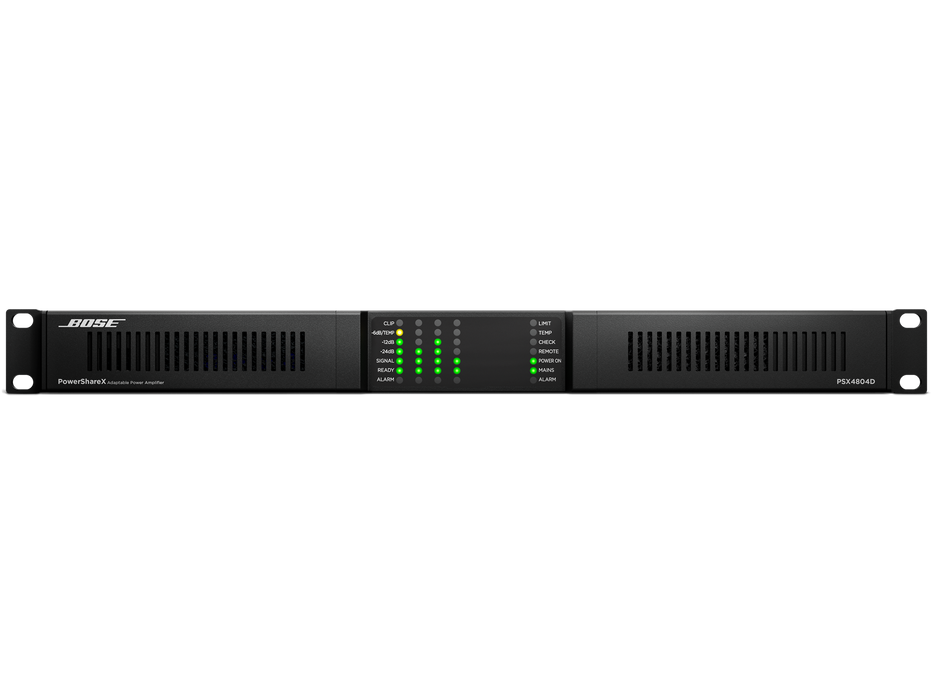

• Channel status LEDs provide at-a-glance monitoring

SPECIFICATIONS

• Number of Channels:4
• Power Class:Class D
• Watts/Side @ 8 ohms:1200W
• Watts/Side @ 4 ohms:1200W
• Watts/Side @ 2 ohms:1800W
• Watts Bridged:2400W @ 8 ohms, 3000W @ 4 ohms
• 70V/100V Output:1200W @ 70V/100V

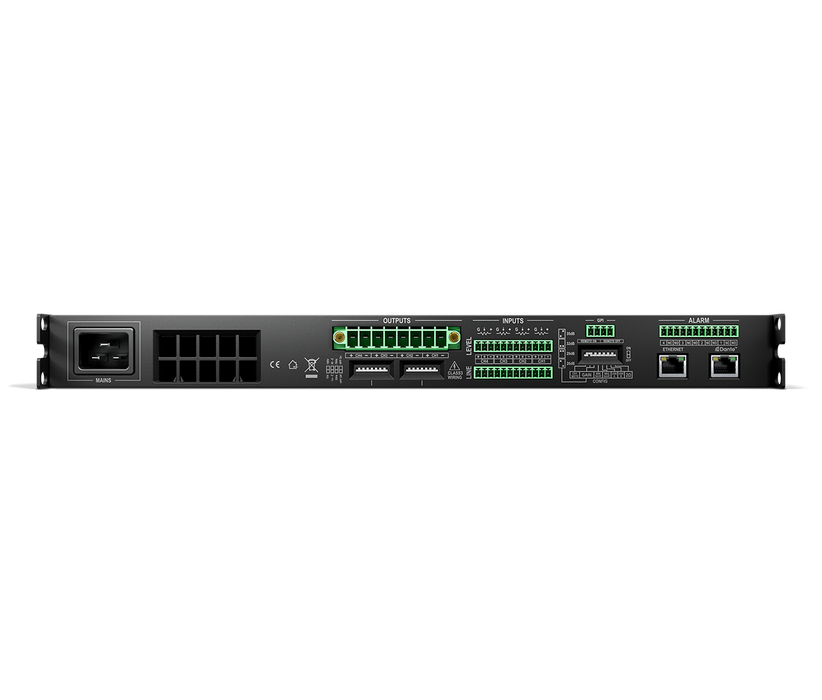

• Inputs:1 x 12-pin Euroblock
• Outputs:1 x 8-pin Euroblock
• Data I/O:1 x RJ-45 (ethernet), 1 x RJ-45 (Dante), 1 x 4-pin Euroblock (GPIO)
• Cooling System:Variable Speed Fan
• DSP:Yes
• Filters:Yes
• Frequency Response:20Hz-20kHz
• THD:<0.1%
• Overload Protection:Yes
• Rack Spaces:1U
• Power Source:Standard IEC AC cable
• Height:1.8"
• Depth:14.1"
• Width:19"
• Weight:15.4 lbs.
