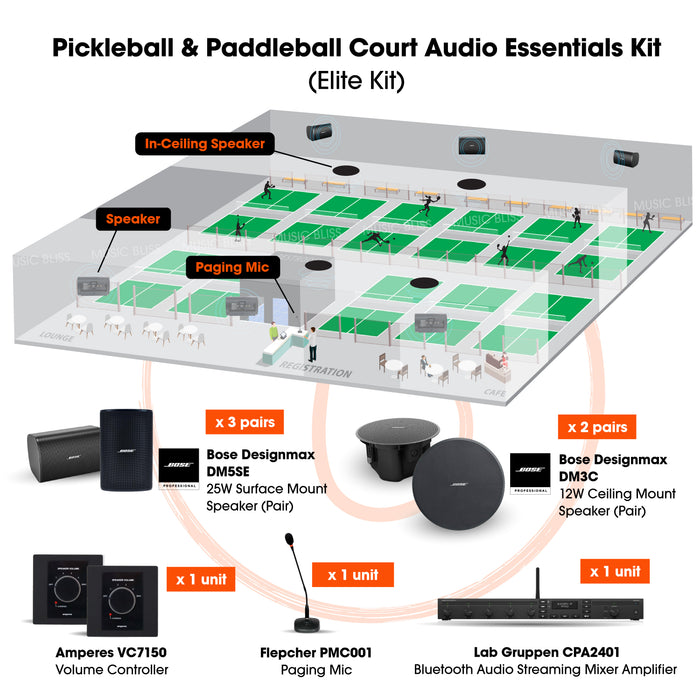

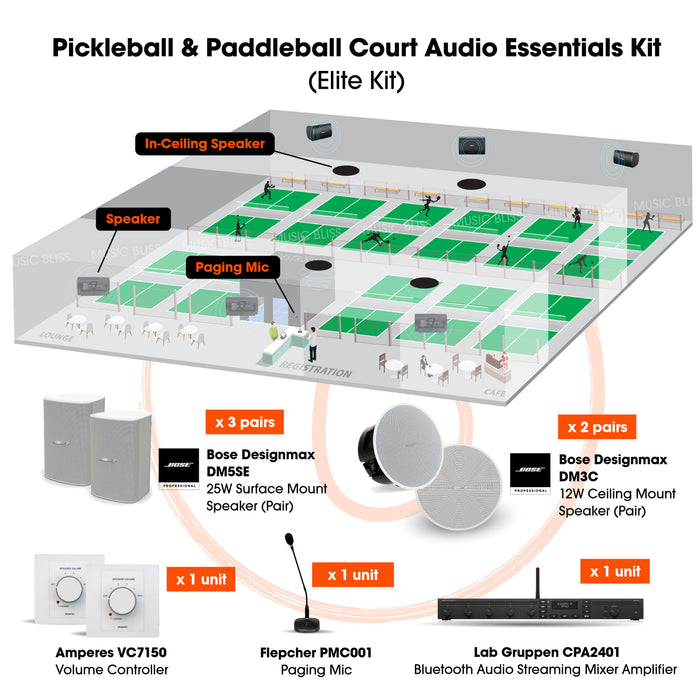

BOSE Premium Sound System for Pickleball & Paddleball Courts – Clubhouse & Sports Venue Malaysia

FEATURES

• 3 x Bose Professional DesignMax DM5SE 50W Loudspeaker (Pair)
• 2 x Bose Professional DesignMax DM3C 25W Ceiling Speaker (Pair)
• 1 x Lab Gruppen CPA2401 240W Commercial Mixer Amplifier
• 2x Amperes VC7150 Volume Controller
• 2x Amperes ES9090 Surface Back Box Enclosure

• 1x Flepcher PMC-001 Paging Microphone

Our Service :

• On-site Assessment
• Professional Consultation
• Customized Solutions
• Installation (Pricing based on venue dimensions)
• Audio System Calibration, Alignment & Performance Optimization
• System Usage & Operations Training

Bose Professional DesignMax DM5SE 50W Loudspeaker (Pair) :

• 50-watt, 8-ohm 2-way speaker
• Combines top-flight sound quality with appealing aesthetics
• 5.25-inch woofer and 1-inch tweeter reproduce every nuance from 65Hz to 20kHz without DSP or EQ
• Dispersion Alignment system ensures a consistent listening experience for everyone in the room
• QuickHold U-bracket ensures easy installation
• Weather-resistant, IP55-rated aluminum grille
• Works with a wide range of amplifiers
• Combined 70-volt/100-volt and low-impedance operation for added versatility

Bose Professional DesignMax DM3C 25W Ceiling Speaker (Pair) :

• 25W, 8-ohm 2-way in-ceiling speaker
• Combines top-flight sound quality with appealing aesthetics
• 3.25” woofer and 0.75” tweeter reproduce every nuance from 75Hz to 20kHz without DSP or EQ
• Dispersion Alignment system ensures a consistent listening experience for everyone in the room
• QuickHold mounting arms ensure easy installation
• Works with a wide range of amplifiers
• Combined 70V/100V and low-impedance operation for added versatility

Lab Gruppen CPA2401 240 Watt Commercial Mixer Amplifier :

• For Commercial & Industrial Applications
• 240W, 4/8 Ohms + 70/100V Operation
• 3 Mic/Line + 2 Line Inputs
• Switchable High-Pass Filter
• Direct Drive, Constant Power Technology
• GPI Remote Volume via RJ45 Connector
• Individual Master Volume + Treble/Bass
• USB Media Player with LCD Display
• Euroblock + RCA Inputs, Block Outputs
• Includes Mounting Hardware and Brackets

Amperes VC7150 Volume Controller :

VC7000 Series Volume Controllers provides 5W to 150W 100V line control with a 4-wire setup and 24V DC override. Available in white or black. Custom colours available on request.

• 86 x 86mm British-style faceplate with UV protection
• Supports 4-wire installation and large terminal block for easy wiring
• Built-in override relay with LED indicator
• 5-step volume control with OFF position
• 150W 100V Line Auto Trans

Amperes ES9090 Surface Back Box Enclosure :

Back enclosures with 50 mm depth for volume controllers and patch panels.

• ES9090 : 86 x 86 mm surface mount (Metal)

Flepcher PMC-001 Paging Microphone :

The PMC-001 is a Paging Microphone unit that offers reliable microphone performance with quality features such as high fidelity sound reproduction, ring-lamp indicator, high electrets head and unique melodic clew function.

The PMC-001 mainly design for various public events like conferences, business talks, broadcasting functions, recording
sessions and other equivalents, it thrives under pressure. This paging microphone is also extremely handy and compact – a
total space-saver. With this edge, it redefines organization and mobility in even the smallest-scale control centre or workspace.

• Condenser gooseneck microphone with illuminated ring
• Power switcher and indicator
• Option of AC power or DC battery
• Built-in chime
