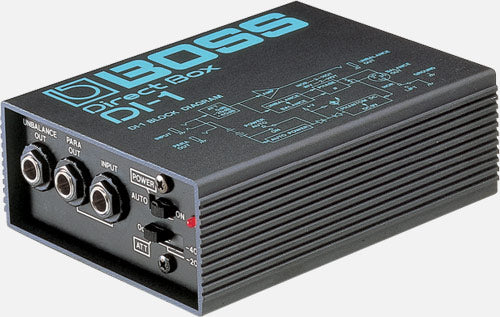

Boss DI-1 Direct Box (DI-1)

Boss DI-1 Direct Box (DI1)


The DI-1 is a high-quality direct box with crystal-clear sound for transforming high-impedance, unbalanced instrument outputs to the low-impedance, balanced inputs of a mixing console.


FEATURES
  • Active direct box with superior frequency responce to conventional transformers
  • Operates on a 9-volt battery or phantom power from a mixer
  • Phase reversal and ground lifting switches
  • Three input level switches
  • Sturdy, compact design

SPECIFICATIONS
  • Frequency Response : 20 Hz to 40 kHz (+0.5/-1 dB)
  • Nominal Input Level : -20/0/+20 dBu (selectable)
  • Max. Input Level : +45 dBu (1 kHz), 390 Vp-p
  • Max. Output Level : +8 dBu (Balanced: 600 ohms load, Unbalanced: 50 k ohms)
  • Residual Noise : -110 dBu or less (IHF-A)
  • Total Harmonic Distortion : 0.05 % or less
  • Power Supply : DC 9 V: Dry Battery (6F22/6LR61 type), or
  • Phantom Power : DC 24 V to DC 48 V
  • Current Draw : 6 mA
  • Width : 97 mm 3-13/16 inches
  • Depth : 125 mm 4-15/16 inches
  • Height : 46 mm 1-13/16 inches
  • Weight : 480 g

Dimension Packaging Weight : 1.2 kg
