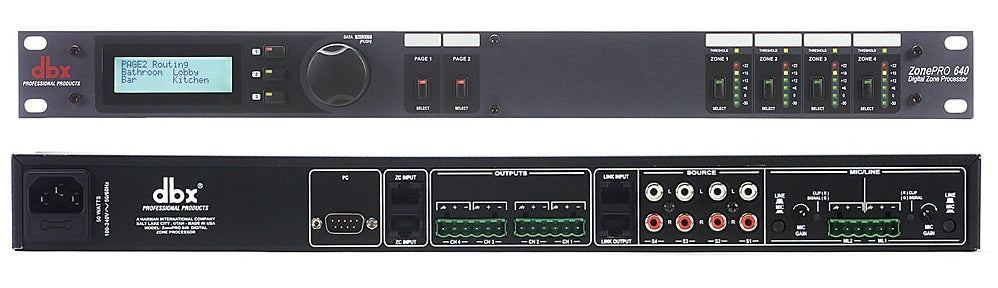

dbx ZonePRO 640 Digital Zone Processor

With six inputs and four outputs, the ZonePRO 640 offers the state-of-the-art signal processing you need for a premium PA installation. To access its deepest functions, the entire system can be controlled by a computer via the GUI protocol, while the "Wizard" function offers streamlined and easy setup for any user - making the ZonePRO 640 great for use in houses of worship, and corporate installations, as well as in clubs, theaters, and other large performance spaces and conference halls. With per-channel EQ, as well as access to a host of DSP features on the mic/line inputs, the ZonePRO 640 delivers top-notch sound.

FEATURES

• Six Inputs, Four Outputs
• Advanced Feedback Suppression (AFS)
• Autowarmth
• Auto Gain Control
• Compression
• Limiting
• Noise Gating
• Notch Filtering
• Bandpass and Crossover Filters
• Parametric EQ
• Security Lockout
• Wall Panel Control
• RS-232 Control
• Two mic/line inputs on Euroblock connectors
• Four line inputs on mono-summing dual RCA jacks
• Outputs are on Euroblock connectors
• Paging can be done from the mic/line inputs
• Paging and priority override offer full Ducking capability
• Windows 2000 and XP GUI
• IEC, UL, and CS Approvals

SPECIFICATIONS

• Number of Channels:4
• EQ:Yes (Parametric)
• Compressor:Yes
• Feedback Eliminator:Feedback Suppression
• Analog Inputs:2 x Euroblock (Mic/Line), 4 x RCA (Source)
• Analog Outputs:4 x Euroblock
• Computer Connectivity:DB-9
• Rack Spaces:1U
• Height:1.75"
• Depth:5.75"
• Width:19"
• Weight:6.8 lbs.
