dbx ZonePro 640m 6x4 Digital Zone Processor

---

The ZonePRO 640M from dbx is a digital zone processor that features six-channels of input and four-outputs. The unit is suitable for installation in restaurants, fitness centers, retail stores, nightclubs and any other situation that requires multiple-zone control of audio sources with paging features.

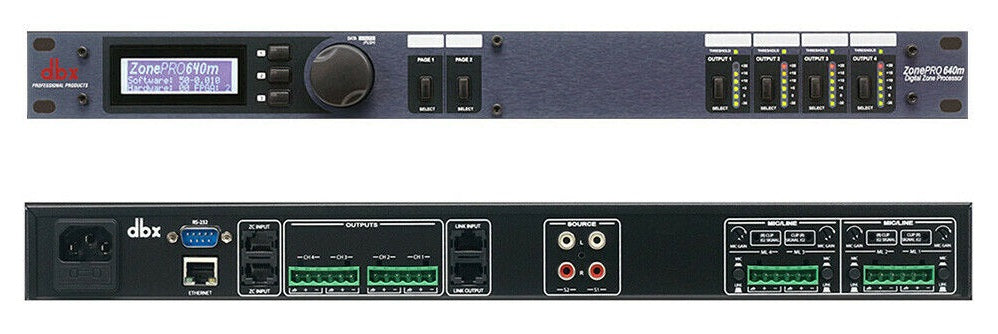

The processor provides two balanced inputs on Euroblock terminals that are selectable as line or microphone level (with phantom power), along with four pairs of analog RCA line inputs, with each pair internally summed to mono. Outputs are available via Euroblock terminals and can be configured as either stereo or mono. Front panel control includes zone output volume, source select, and muting for each zone. Output level meters with six-segment LED meters and output dynamics threshold LEDs provide visual feedback of signal levels.
The included Windows based control software communicates with the unit via RS-232 or Ethernet. Processor blocks can be switched in or out of a chain and include input gain, high-pass filtering, parametric EQ, compression, limiting, gating, AGC, ducking, de-essing, AFS (Advanced Feedback Suppression), notch filters, signal routing, band-pass filtering, delay and polarity. An AutoWarmth module provides gentle bass boost compensation as signal levels are lowered.
The ZonePRO 640M really shines when utilized with optional remote wall-mount controllers that can be positioned within the various zones. The wall-mounts are able to provide local volume control or scene selection, dependent on the type of controller installed. A built-in real-time clock can provide programmable system changes throughout the day or week. All program memory is non-volatile, ensuring program security in the event of power failure or computer malfunction.

---

FEATURES

• The ZonePRO 640m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus
• 6 total inputs: (4) switchable Euroblock line/mic, (2) unbalanced, mono-summed RCA pairs
• 4 balanced Euroblock outputs
• Max Input/Output: +20dBu Euroblock, +12dBu RCA

---

Dimension Packaging Weight : 3.6 kg
