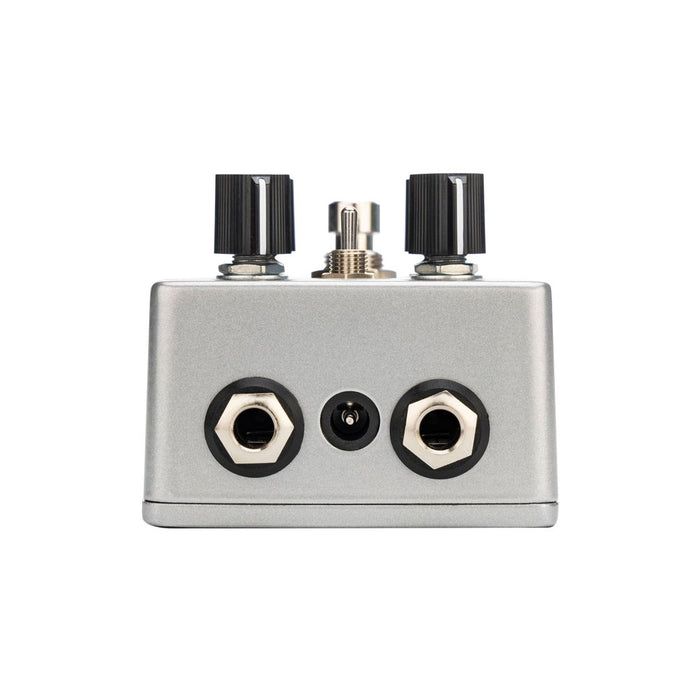

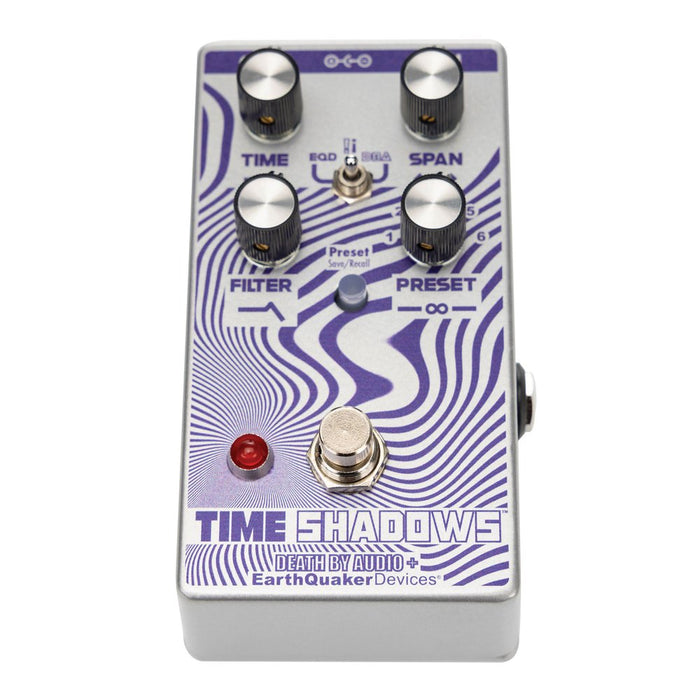

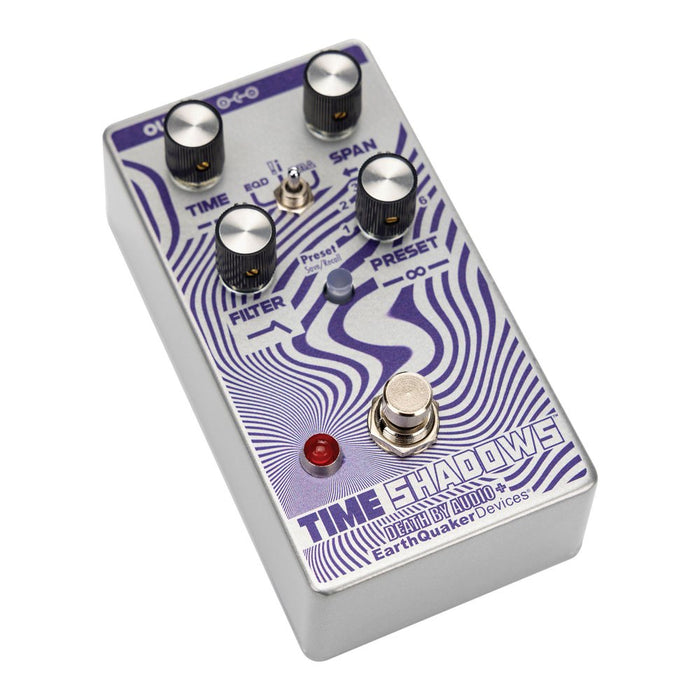

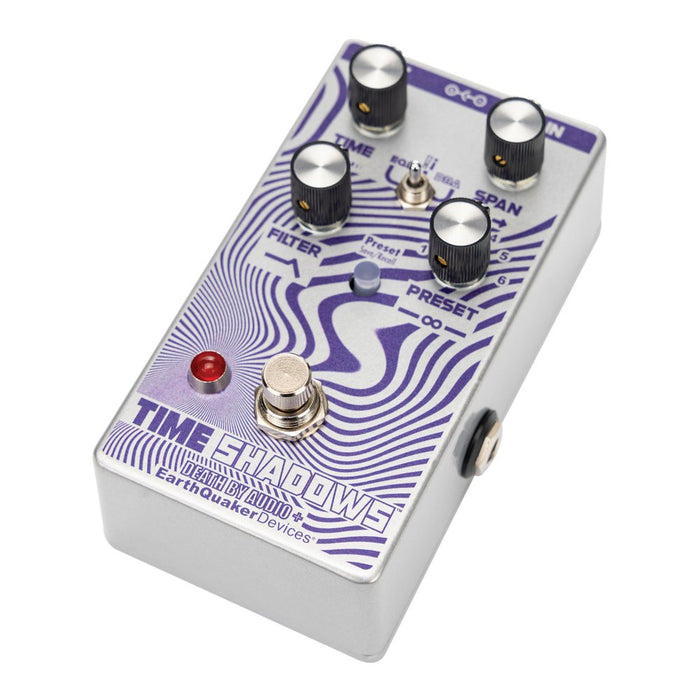

EarthQuaker Devices Time Shadows II Subharmonic Multi-delay Resonator Pedal

This joint collaboration between EarthQuaker Devices and Death By Audio is a major update to the original Time Shadows that was released in 2020 and limited to 1000 units! Time Shadows now features 3 modes, user assignable expression control and 6 preset slots to save and recall your favorite settings. The EQD Mode is an envelope controlled sub-octave filter delay, the ALL NEW !¡ Mode is a dual delay where each repeat simultaneously shifts up and down with each regeneration, and the DBA Mode is a multi-delay regenerating filter. All three sounds are wildly different from each other and yet share a perfectly designed harmony to be completely complementary and suitable for every style and genre of music.

VIDEO

FEATURES

• An experimental delay pedal with musical results that are fun to experiment with

• Co-designed by EarthQuaker Devices and Death By Audio

• 3 delay voices combine resonate filters, fuzz, phasing, shimmer swells, and shadowy subharmonics to varying degrees

• Wide-ranging filter range adapts to guitar, synth, bass, beats, and beyond!

• Save and recall your favorite tones with 6 preset banks (as well as storage for expression pedal assignments)

• Expression pedal control over each parameter

• Flexi-Switch offers momentary or latch-style switching, both true bypass

• Additional expression control voltage option with a CV range of 0v to 3.3v


SPECIFICATIONS

• Pedal Type : Subharmonic Multi-delay Resonator

• Analog/Digital : Digital

• Presets : 6 x User, 3 x Modes

• Effects : Envelope-controlled Sub-octave Filter Delay, Multi-delay Regenerating
  Filter, !¡ Dual Delay Repeat Shift

• Max Delay Time : 1 second (EQD), 500ms (!¡ mode), 1 second (DBA)

• Inputs : 1 x 1/4"

• Outputs : 1 x 1/4"

• Other I/O : 1 x 1/4" TRS (expression/CV)

• Bypass Switching : Relay-based True Bypass

• Features : Flexi-Switch, User-assignable Expression Control, Accepts 0V-3.3V
  Control Voltage

• Power Source : 9V DC power supply (sold separately)

• Power Usage : 75mA

• Height : 2.25"

• Width : 2.5"

• Depth : 4.75"
