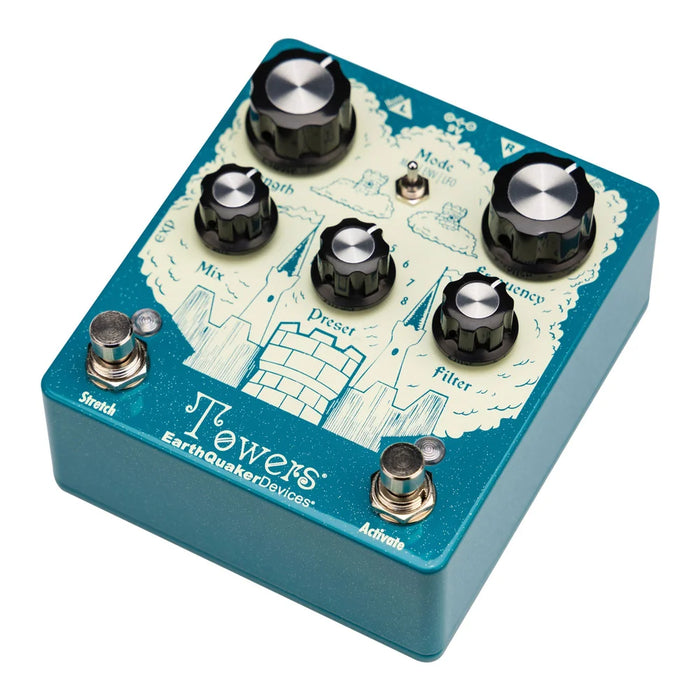

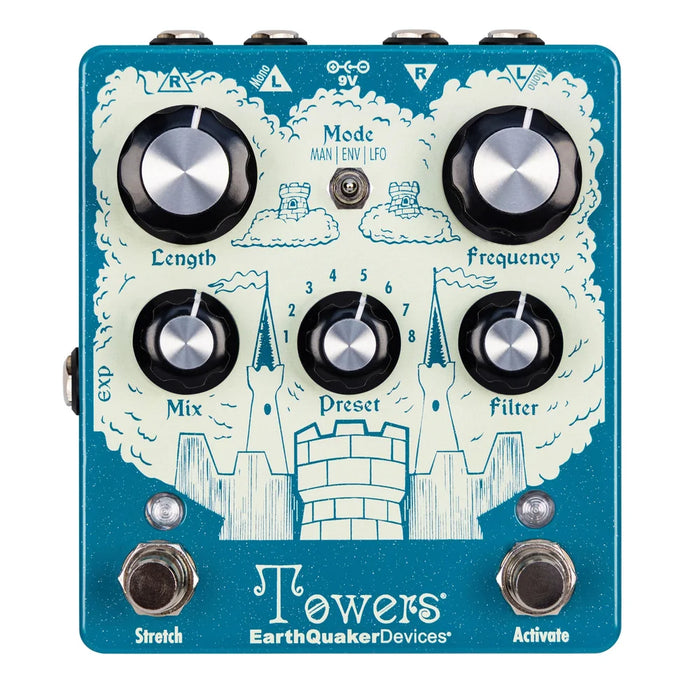

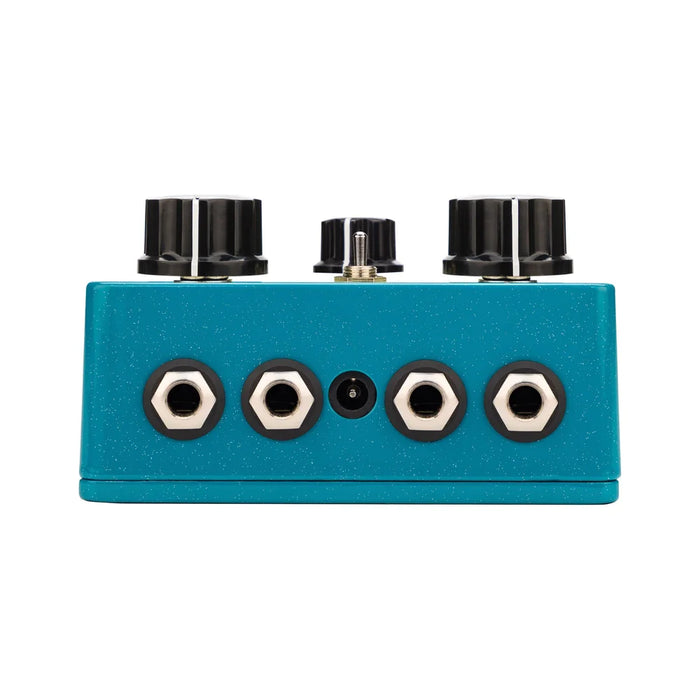

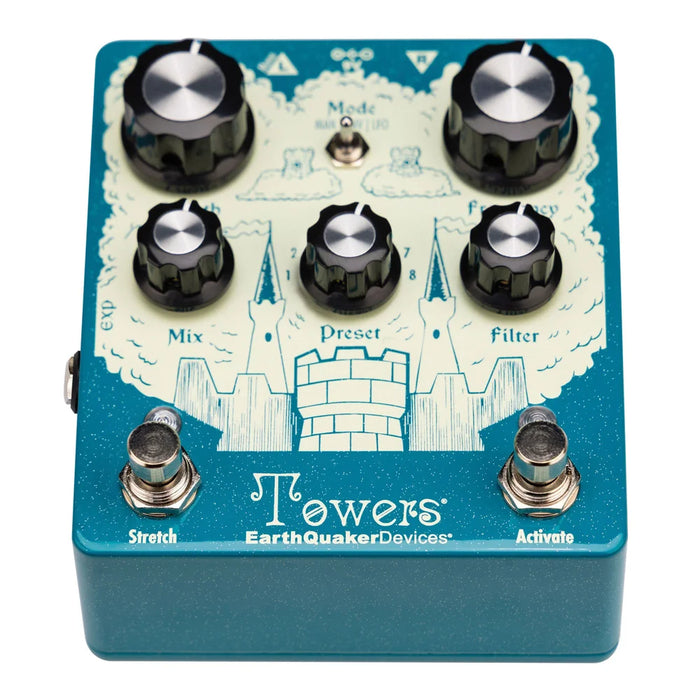

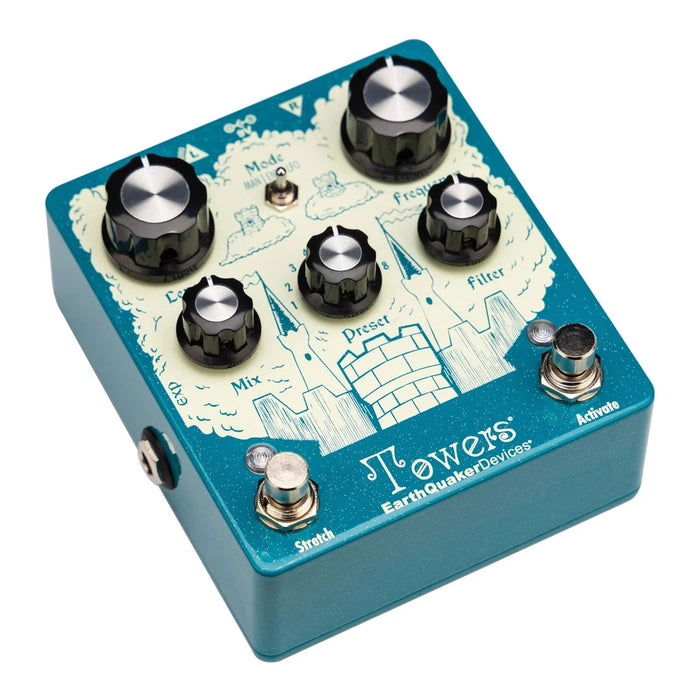

EarthQuaker Devices Towers Soundscape Generator Stereo Reverberant Filter

Towers teleports your sound into a vast stereophonic expanse, weaving it into its unique resonant filtered feedback networks. Reflections hang in the air and move in and out of a sprawling multidimensional soundscape, where they don’t just fade away—they radiate, breathe and drift endlessly into the void. The filter frequency offers three distinct modes of navigation: Manual Mode puts the player in charge of the filter frequencies. Envelope Mode where playing dynamics breathe and morph into everchanging filter movements. LFO Mode where the player surrenders control to a slow-moving oscillator that sweeps across the stereo field.

FEATURES

• Mode: This is a 3-position toggle switch that changes the mode of operation.
• Length: Controls the length of the reverb – lower settings are shorter, higher settings are longer. This control also has a secondary function to adjust the speed of the Stretch feature.
• Mix: This sets the overall level of the effect, balancing the ethereal with the earthly.
• Stretch Footswitch: Stretch slows down the entire digital system of Towers. As a result, the reverb length is doubled, the spectrum of frequencies is altered and a pitch bending effect can be heard throughout the morphing process.
• Frequency: This controls the filter frequency and has several different functions depending on which mode is selected.
• Filter: Controls how much the resonant low pass filter is mixed into the reverb pathways, determining the depth of harmonic resonance.
• Preset: Selects which user preset to use in preset mode, allowing you to recall your favorite mystical configurations.
• Activate Footswitch: This turns the effect on and off.

SPECIFICATIONS

• Dimensions : 4.75 x 4.25 x 2.50 in. (121 x 108 x 64 mm) with knobs

• Current Draw : 85 mA

• Input Impedance : 500 kΩ

• Output Impedance : 100 Ω

• EXP Jack Internal Connections : Tip= Wiper (CV) | Ring= 3.3V | Sleeve= Ground

• Tails or Full Bypass Switching
  - Towers can operate in two different bypass states: Tails or Full Bypass. It comes factory set in Tails Mode which allows the reverb effect to naturally decay after the effect is bypassed and is indicated by a Green Activate LED. Full Bypass will cut the reverb effect completely when the effect is bypassed and is indicated by a Red Activate LED. Towers can operate in two different bypass states: Tails or Full Bypass. It comes factory set in Tails Mode which allows the reverb effect to naturally decay after the effect is bypassed and is indicated by a Green Activate LED. Full Bypass will cut the reverb effect completely when the effect is bypassed and is indicated by a Red Activate LED.
