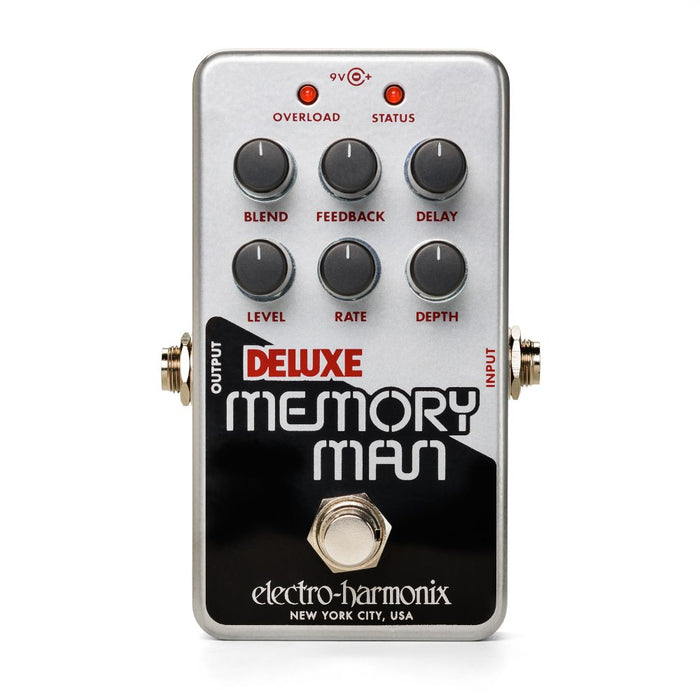

Electro Harmonix Nano Deluxe Memory Man Analog Delay/Chorus/Vibrato Pedal

Over the course of the 50 years that have comprised the bulk of modern pedal design and manufacturing, there are certain singular pedals that have attained a special stature among tone chasers of all stripes. Without question, the EHX Deluxe Memory Man falls into this category. The "DMM," as it is affectionately referred to by countless devotees, was an immediate hit when it first appeared in the 1970s. Players were instantly hooked on its sumptuous vibrato, rich chorus, and impeccable delay. From basement woodshedding experimentalists to artists like U2's The Edge — who used the '80s DMM iteration on nearly all of the band's earliest recordings — this legendary pedal was heard the world over. Now, you can channel these signature sounds with the EHX Nano Deluxe Memory Man Analog Delay/Chorus/Vibrato Pedal, a smaller, pedalboard-friendly version of the classic DMM that boasts added features sure to delight the modern player.

VIDEO

FEATURES

• Legendary delay and vibrato pedal redesigned for pedalboard-friendly use
• Sumptuous vibrato, rich chorus, and impeccable delay
• Adjustable delay times from 30ms–550ms
• Depth knob lets you set the amount of modulation that’s added to the delay to get really cool vibrato and chorus-type effects
• Rate knob puts you in the driver's seat of overall modulation speed
• Full control over the number of echo repeats right up to runaway oscillation with the Feedback knob
• Wet/dry mix control over the dry and delayed signals via the Blend knob
• Overload LED lights when the signal going into the analog delay block is too hot
• True bypass switching

SPECIFICATIONS

• Pedal Type:Delay, Chorus, Vibrato
• Analog/Digital:Analog
• Max Delay Time:550ms
• Inputs:1 x 1/4"
• Outputs:1 x 1/4"
• True Bypass:Yes (switchable to trails)
• Power Source:9.6V DC power supply (included)
• Power Usage:150mA
• Height:2.1"
• Width:2.75"
• Depth:4.5"
