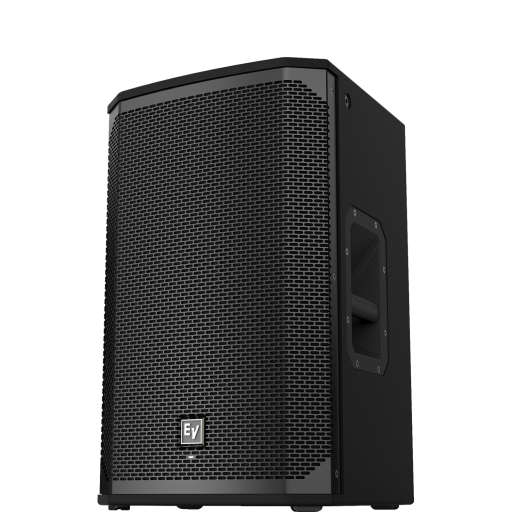

EV Electro-Voice EKX-12 1400W 12" Passive Speaker (Electro Voice EKX12)

The EKX series is the newest member of the Electro-Voice portable loudspeaker family. It combines legendary EV sound quality and reliability with the latest technology, all in a compact package that is suitable for a wide range of sound reinforcement scenarios, including musicians, DJs, installations and other sound applications. The EKX-12 features a 12" LF driver and a 1" titanium compression driver.

EV-engineered components and EV' patented Signal Synchronized Transducers (SST) waveguide design combine to provide precise coverage and superior sound quality at high SPLs. EV' award-winning industrial design ” with robust wood enclosures and durable EVCoat finish ” ensures that EKX speakers look as great as they sound. EKX-12 delivers up to 131 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1M 1-inch titanium compression driver).

PROMOTION

3 Years Warranty

SPECIFICATIONS

Speaker configuration

• Active/passive: Passive
• Type: 2-Way full range
• LF driver: 12"
• MF driver: Not applicable
• HF driver: 1"

Power amp (active)

• Amplifier type: Not applicable
• Wattage: Not applicable
• Mixer/preamp: Not applicable

Power capacity (passive

• )
• 8 Ohms program/peak: Not applicable
• 4 Ohms program/peak: Not applicable
• Included power amp: No

Audio

• Frequency response: 55Hz - 20kHz
• Coverage pattern: 90 x 60
• Max SPL: 131 dB

Enclosure

• Construction: 15mm plywood
• Width: 14.75"
• Height: 23.9"
• Depth: 14.0"
• Weight: 38.4 lb.

Inputs

• XLR/TRS Combo: Not applicable
• XLR: Not applicable
• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Output/thru

• XLR: Not applicable
• TRS: Not applicable
• RCA: Not applicable
• SPEAKON: 1
