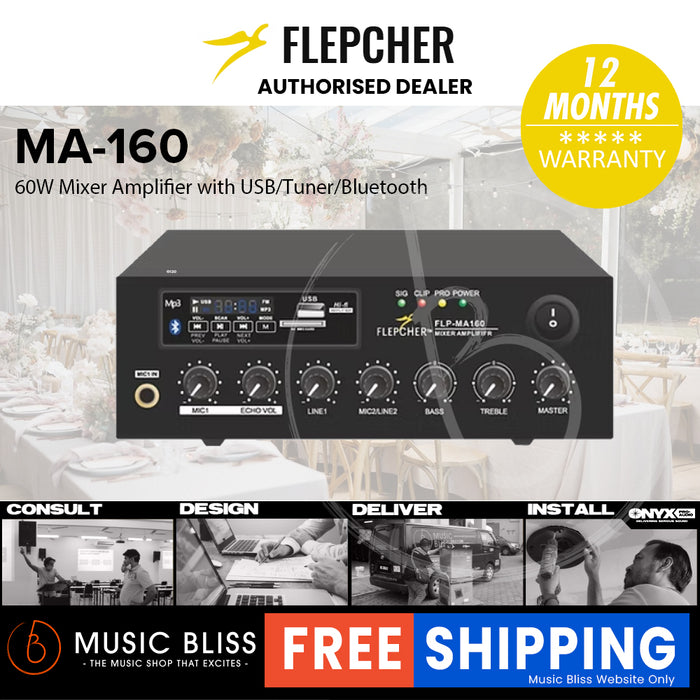

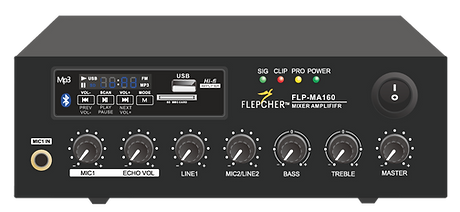

Flepcher MA-160 60W Mini Mixer Amplifier with USB/Tuner/Bluetooth (MA160)

MA-160 is an user-friendly mixer amplifier that suitable to apply in small places which need Background Music System. It supports MP3, FM Tuner and Bluetooth functions and the user can simply control it through a remote control. Its simple design and structure make it easy to be used with.

FEATURES

• Compact mini size public address amplifier
• Tabletop mixer amplifier with Mp3 player, FM radio & bluetooth
• Rate power output at 60W
• Speaker output of 100V or 70V & 4-8 Ohm
• Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and bluetooth
• LED indicators for power, clip, protect and signal
• Mic1 of 6.3mm Jack input on front panel
• Mic/line2 switchable input balanced XLR with +48V phantom power
• Line1 input of RCA input and one RCA line output
• With mute and EMC input from fire alarm system
• Input priority from high to low: MUTE, EMC and others inputs (Mic1 and all others inputs)
• Mic1 input of echo features and echo volume control.
• With Echo features and volume control ideal for mosque and religious applications
• Volume control for Mic1, Echo, line 1, Mic2/line2, bass/treble and master
• Complete amplifier protection includes short-circuit, clip, overload and high temp
  230V AC & 12-24V DC both power supply system
• 12-24V DC power supply system for car or vessel mobile sound system

SPECIFICATIONS

• Rated Power Output  : 60W
• Speaker Outputs : 100V or 70V & 4-8 Ohm
• Connector  : Mic1 of 6.3mm Jack on front panel
• Mic/line2 switchable input balanced XLR with +48V
  phantom powerLine1 input of RCA input and one RCA
  line output
• With mute and EMC input from fire alarm system
• Input : MIC: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
• Line Out : 0.775(0dBV)
• Frequency Response : 60Hz-15kHz(±3dB)
• S/N Ratio : Line ≥ 85dB, Mic≥ 72dB
• THD:  Less than 0.5%
• Protection : Short-circuit, clip, overload and high temp protection
• Power Consumption : 80W
• Power Supply :  230V AC & 12V DC; 50-60Hz
• Dimension : 220×200×72mm
• Weight : 2.6kg
