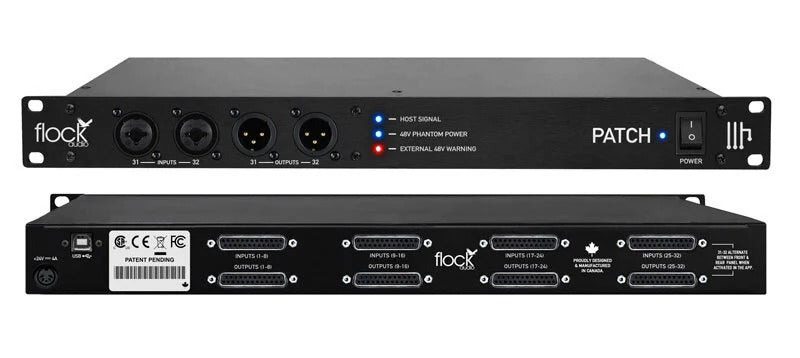

Flock Audio Patch 64-point Digitally Controlled Analog Patchbay

The Flock Audio Patch is a digitally controlled analog patchbay with hardware and software components that allow you to control equipment chain routings throughout your studio with flexibility and recall capabilities never before possible — no patch cables required! The hardware consists of a 64-point analog patchbay in a rugged 1RU chassis with I/O arranged on rear-panel DB-25 connectors. Control over patchbay assignments and routings is carried out from Patch App, easy-to-use Mac/Windows software that communicates with the patchbay via USB. In Patch, no audio is ever converted to digital — all channels running through it remain in the analog domain and only the patchbay routings are altered digitally. Patch gives you the advantages of both worlds — pure analog audio with full digital, computer-based control. This allows Patch App routings to be instantly stored and recalled.

FEATURES

• No patch cables required

• 32 channels of onboard 48V phantom power

• Create, store, and recall routings

• Advanced multing capabilities

• User warning notifications

• MacOS and Windows software compatible

• Achieve complex routings in seconds

• Front-panel I/O on combo jacks

• 64-point rear-panel I/O DB-25 connectors

• Multiple unit expansion

• Software and firmware updates

• USB host control

SPECIFICATIONS

• Number of Points : 64

• Format : Rackmount

• Connector Types - Front : 2 x XLR-1/4" combo (inputs 31-32), 2 x XLR (outputs 31-32)

• Connector Types - Back : 4 x DB-25 (inputs 1-32), 4 x DB-25 (1-32)

• Function Mode : Save/Recall Routings, Multing, Phantom Power, Connect Multiple Patch Units

• Analog/Digital : Analog Signal Path, Digital Switching

• USB : 1 x Type B

• Compatibility : MacOS, Windows

• Power Source : 5-pin DIN power supply
