Flock Audio Patch VT 128-point Digitally Controlled Analog Patchbay

The Flock Audio Patch VT is a digitally controlled analog patchbay with hardware and software components that allow you to control equipment chain routings throughout your studio with flexibility and recall capabilities never before possible — no patch cables required! The hardware consists of a 128-point analog patchbay in a rugged 3U chassis with I/O arranged on rear-panel DB-25 connectors. Control over patchbay assignments and routings is carried out from either the Patch App or the Patch App DX, easy-to-use Mac/Windows or iOS software that communicates with the patchbay via USB. In Patch VT, no audio is ever converted to digital — all channels running through it remain in the analog domain and only the patchbay routings are altered digitally. Patch VT gives you the advantages of both worlds — pure analog audio with fully digital, computer-based control. This allows Patch App and Patch App DX routings to be instantly stored and recalled.

FEATURES

• No patch cables required

• 32 channels of onboard 48V phantom power

• Create, store, and recall routings

• Advanced multing capabilities

• User warning notifications

• MacOS and Windows software compatible

• iOS software compatible (Patch App DX only)

• Achieve complex routings in seconds

• Front-panel I/O with combi jacks

• 128-point rear-panel I/O DB-25 connectors

• Multiple unit expansion

• Software and firmware updates

• USB host control

SPECIFICATIONS

• Number of Points : 128

• Format : Rackmount

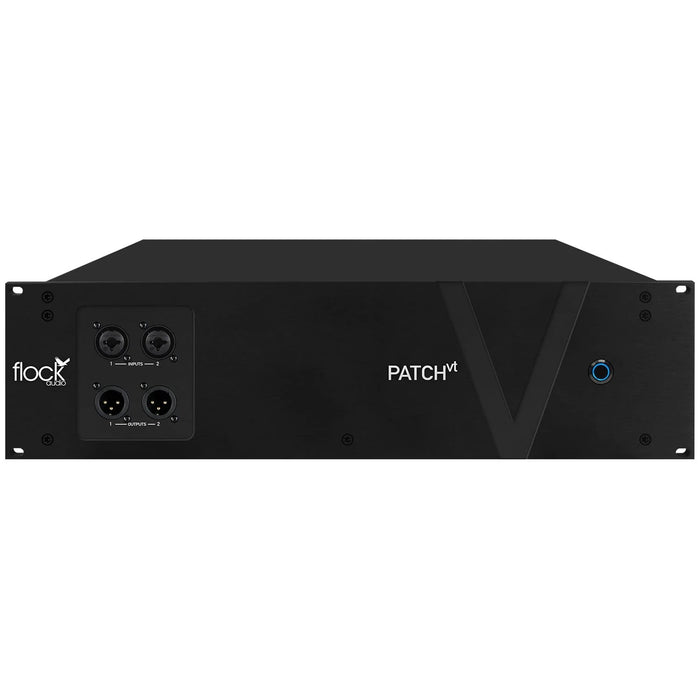

• Connector Types - Front : 2 x XLR-1/4" combo (inputs 1, 2), 2 x XLR (outputs 1, 2)

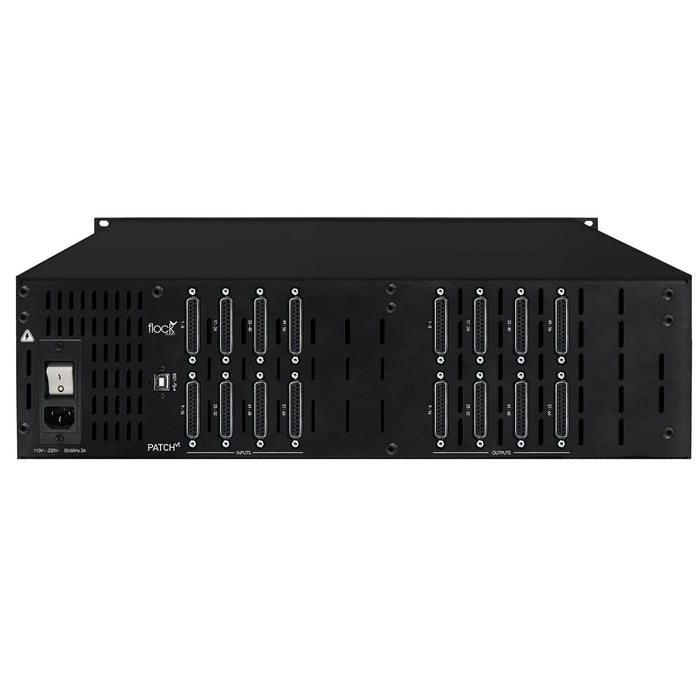

• Connector Types - Back : 16 x DB-25

• Function Mode : Normal

• Analog/Digital : Analog

• USB : 1 x Type USB-B

• Compatibility : PATCH APP, PATCH APP DX - Routing Software (OSX, Windows, iOS)

• Power Source : Standard IEC AC Cable

• Height : 5.25"

• Width : 19"

• Depth : 13"

• Weight : 24 lbs.
