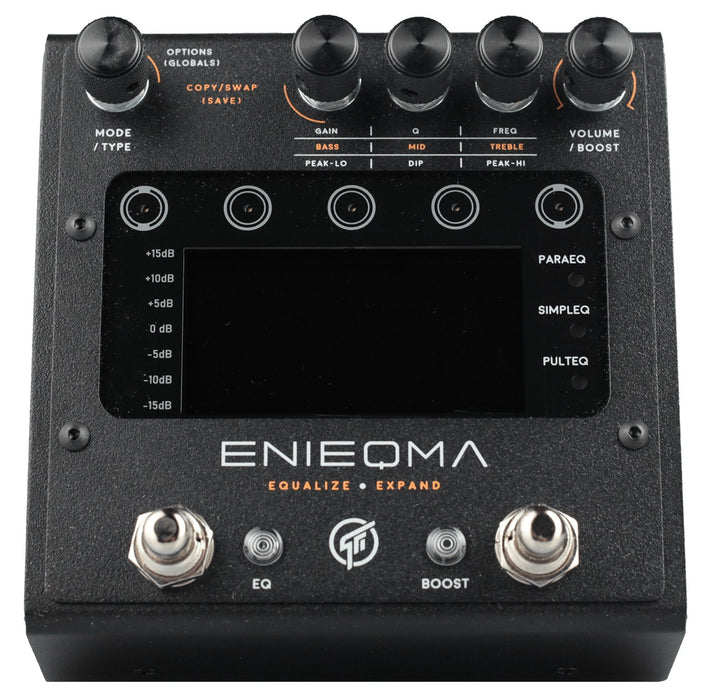

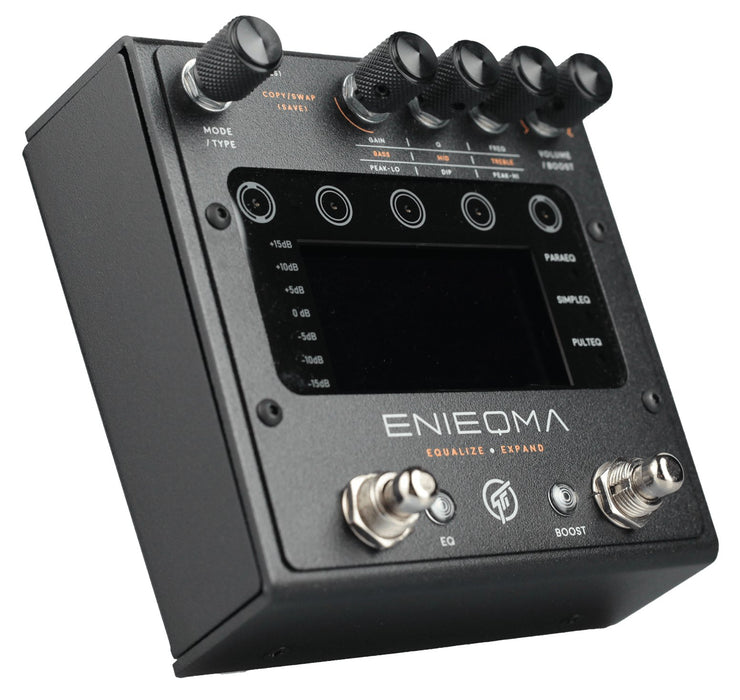

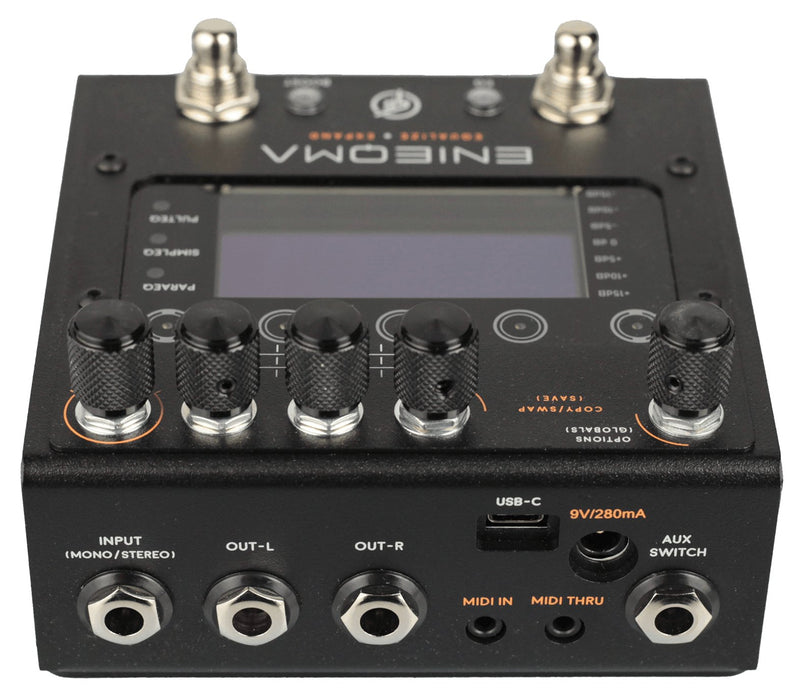

GFI System Enieqma Advanced Equalizer Pedal

Enieqma is a multipurpose equalizer that packs a 5-band full parametric EQ, a ‘simple EQ class’ featuring 7 classic tone stacks (Baxandall, Tilt, Fender, Marshall, and Vox amps tone control, etc.), and a 3-band midrange equalizer that emulates the Pultec Midrange EQ processor. Enieqma offers unprecedented equalization capabilities in a pedal format. Enieqma features true stereo EQ processors. The Left (L) and Right (R) channels EQ parameters may be linked or set independently. The high-contrast display provides invaluable visual feedback and spectral information by rendering the stereo EQ curves simultaneously. Flexible input/output routing  options augments the stereo capability even further, allowing seamless connections with other mono and stereo devices.

FEATURES

• 2 channel EQ + Boost.

• 64 Presets.
• Master Volume and Input Level trim.
• Built-in libraries of ready-to-use ‘Prototype EQs’.
• Optional Limiter and Stereo Expander.

• MIDI Input and Thru.
• Aux switches control input.
• The two processing channels can be linked or configured/run independently.
• 3 routing configurations : Mono to Stereo, Dual Mono, and Stereo to Mono.
• 3 EQ engines (Parametric EQ, Simple EQ, and Pultec Midrange EQ emulation) with the ability to stack  and run two engines simultaneously..

SPECIFICATIONS

• Input impedance : 1 MOhm.
• Output impedance : 500 Ohm.
• Max Boost level : +15 dB.
• Max input level : +7.23 dBV = 9.45 dBu = 6.5 Vpp.
• SNR : 114 dB typical.
• Frequency Response : 20 Hz to 20,000 Hz
• AD/DA : 24-bit, 48 KHz.
• Bypass : Buffered.
• Output jacks : 1/4 inch TS.
• Input jack : 1/4 inch TRS.
• MIDI Input / MIDI Thru connector : 1/8 inch TRS.
• USB connector : Type C
• Dimension : 12 x 12  cm (4.7 x 4.7 inch)
• Power requirement : 9VDC / 280mA, negative-center plug
