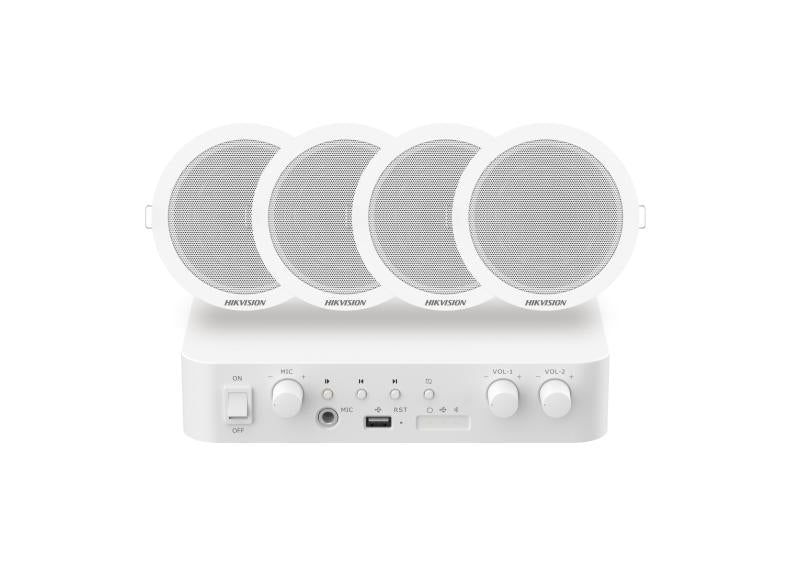

HIKvision Audio Budget Hybrid Ceiling Speaker PA Package - 80W IP Amplifier with 4×6W Ceiling Speakers (DS-QAE1KA80206-4)

FEATURESS

• 80W 2-Zone Network Amplifier x1
• 6W Analog Ceiling Speakers x4
• Power Adaptor for Network Amplifier x1 Power Cord for Network Amplifier x1
• 100V ceiling audio system with clear and bright sound quality
• Support remote/centralized management, more intelligent function such as schedule broadcast/TTS/alarm linkage
• Four types of audio input: Microphone, RCA, Bluetooth, and USB flash drive
• Independent microphone volume control and two-channel output partition content/volume control
• Perfect for small and medium occasions - ideal for restaurants, bars, and lounges - set the mood with ease

SPECIFICATIONS

• Speaker
  Impedance
  8 Ω
  Speaker Unit
  5.25′′ × 1
  Function
  Audio Bit Rate
  G.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps）
  Protection Function
  short circuit protection, overcurrent protection, over temperature protection, anti-static electricity protection, surge protection, electrical shock protection
• Network
  Network Protocol
  IPv4, HTTP, HTTPS , SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
  Interface Protocol (API)
  ISAPI, ISUP, RTP
  Client
  HikCentral Professional
  Audio
  Rated Power
  Network Amplifier:80 W 24 VDC
  Analog Cabinet Speaker: 6 W
  Sensitivity
  91 dB ± 3 dB
  Max. Acoustic Pressure
  98 dB
  Frequency Response
  Network Amplifier:80 Hz to 20 kHz（±3 dB）
  Analog Cabinet Speaker:90 Hz to 20 kHz
  THD and SNR
  THD: ≤1%
  SNR: ≥100 dB
• Interface
  Alarm
  1 alarm input
  1 alarm output
  Network Interface
  1个RJ45 10 M/100 M adaptive Ethernet port
  Local Storage
  Built-in 4 GB EMMC (Audio file storage is 1 GB.)
• Audio In
  Network Amplifier:
  MIC 1: -20 dBV, 4 KΩ,unbalance, 6.35 mm jack
  USB 2.0 × 1 / Bluetooth
  RCA in 1-2: 0 dBV, 5 KΩ, unbalance, RCA pin jack
  Analog Cabinet Speaker:
  Rated voltage，100 V
  Audio Out
  Constant Voltage Output × 2，100 V COM
  RCA Out 1-2: 0 dBV, 100 Ω, unbalance, RCA pin jack
  RCA Cascading: support a cascade of up to 3 amplifiers
  LED Indicator
  Power indicator (solid white): the device is normally working
  USB flash drive indicator (solid white): the device is in USB mode
  Bluetooth indicator (solid blue): the device is in Bluetooth mode
  Volume Knob
  MIC Volume Knob × 1，Partition 1 Volume Knob × 1，Partition 2 Volume Knob × 1
  USB
  USB 2.0/3.0.
  File format: FAT32, maximum capacity: 128 GB.
  FAT32 file system: maximum partition size: 128 GB, maximum file size: 4 GB.
  Power Interface
  Aperture size: Ø2.0 mm
• General
  Material
  Network Amplifier:Plastic Analog Cabinet Speaker:Shell: ABS; Mesh enclosure: iron mesh
  Dimension
  Network Amplifier:190.8 mm × 230.8 mm × 51.2 mm (7.48" × 9.06\" × 2.01\")
  Analog Cabinet Speaker: Ø170 × 64 mm (Ø6.69 × 2.52\")"
  Package Dimension
  375mm x 185mm x 365mm
  With Package Weight
  Approx. 5.2 kg (11.46 lb.)
  Color
  White
  Packing List
  Device × 5
  Power Adapter × 1
  Power Cord × 1
  Regulatory Compliance and Safety Information × 1
  Bluetooth
  Bluetooth 5.0，10 m
  Operating Temperature
  Network Amplifier:-10 °C to 55 °C (14 °F to 131 °F)
  Analog Cabinet Speaker:-20 °C~50 °C (-4 °F to 122 °F )
  Operating Humidity
  ＜90% (No condensation)
  Mounting Hole Dimension
  Ø148 mm (Ø5.83")
  Power Consumption
  Standby Consumption: 4.5 W
  Annual Average Consumption: Max. Working Consumption: 90 W (based on the average playing time)
