Product Description

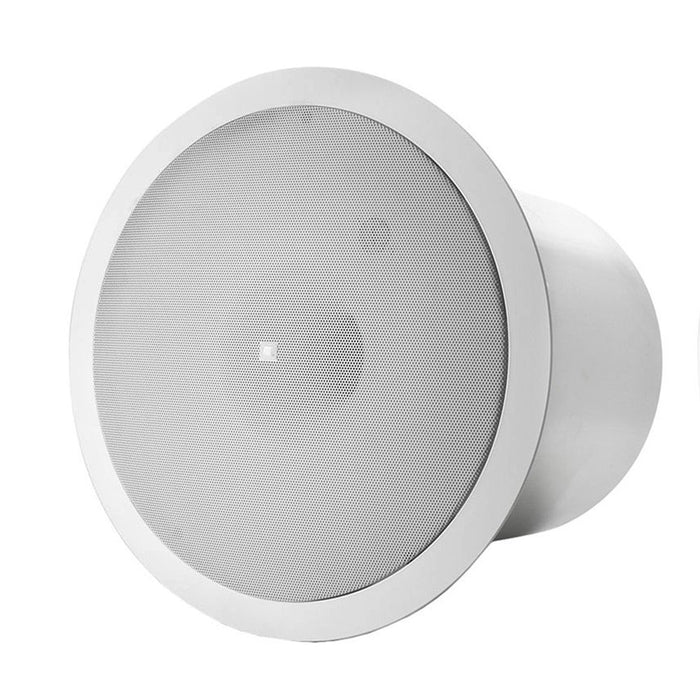

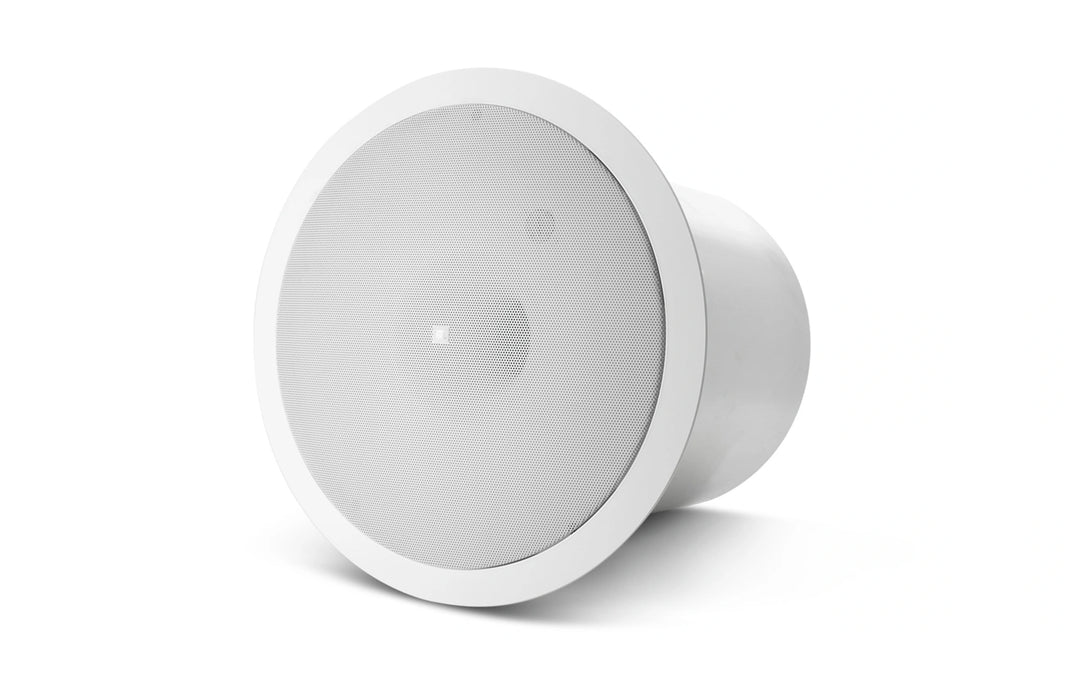

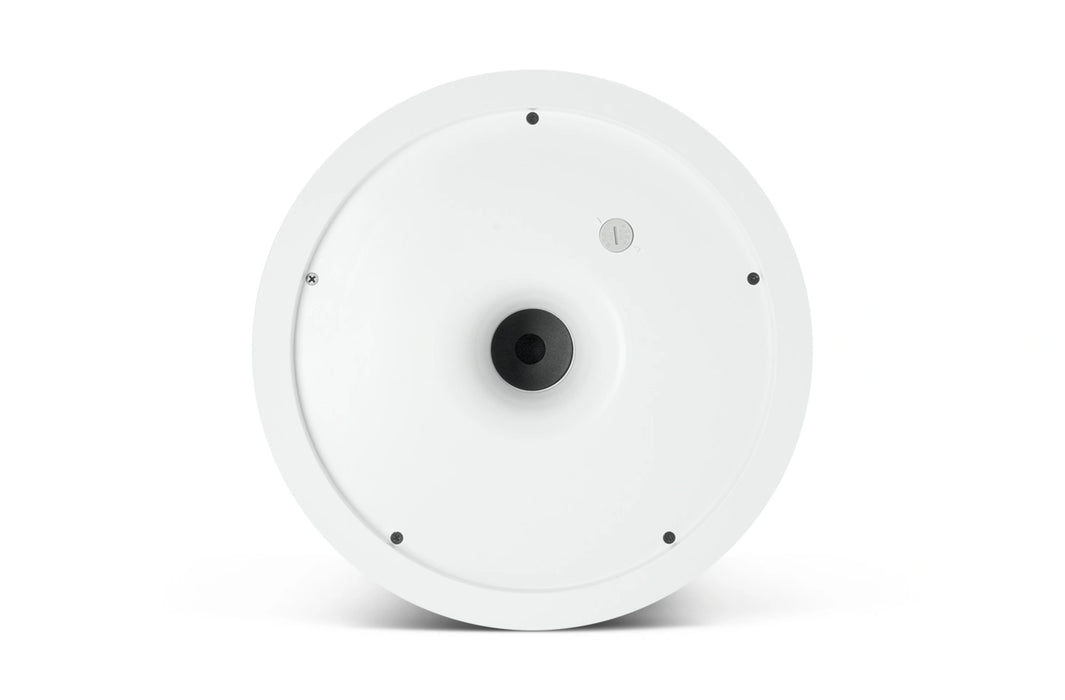

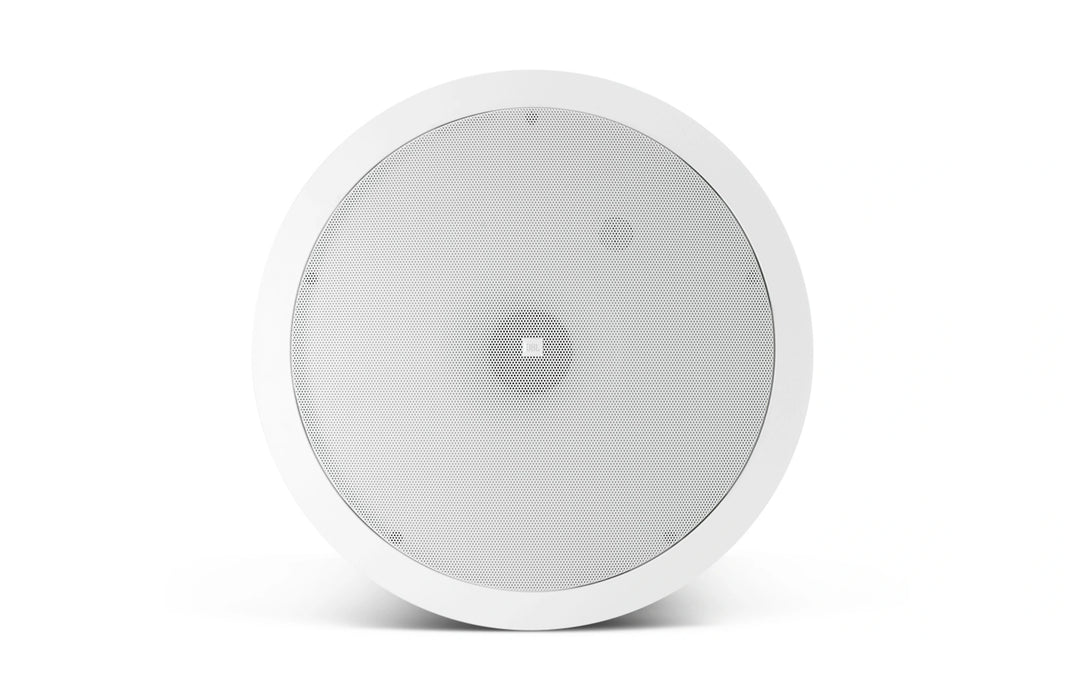

JBL Control 19CST 8" 200W 70V/100V In-Ceiling Subwoofers - White (Control19CST-WH)
JBL Control 19CST 8" 200W 70V/100V In-Ceiling Subwoofers - White (Control19CST)
The Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.
FEATURES
- Unique Nested Chamber™ design and Linear
- Component: Long excursion 200 mm (8 in) driver.
- Packaged with grille, backcan and tile rails for fast
- Simple installation and wire connection method.
SPECIFICATIONS
- Frequency Range
- 42 Hz - 200 Hz
- Power Rating
- See transformer taps
- Transformer Taps
- 75W, 30W, 15W (& 7.5W @ 70V)
- Coverage Angle
- 180° conical
- Maximum SPL (1m)
- 108 dB (70V/100V, center of ceiling)
- 114 dB (70V/100V, near corner)
- Nominal Impedance
- 8 ohms
- Drivers
- 200 mm (8.0 in) subwoofer
- Enclosure Material
- Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
- Input Connectors
- Removable locking connector with screw-down terminals.
- Safety Agency
- Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Outside Dimensions (H x Dia)
- 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
- Ceiling Cutout Size
- 305 mm (12.0 in) diameter
Product Dimension Shipping Weight: 15.0 kg
