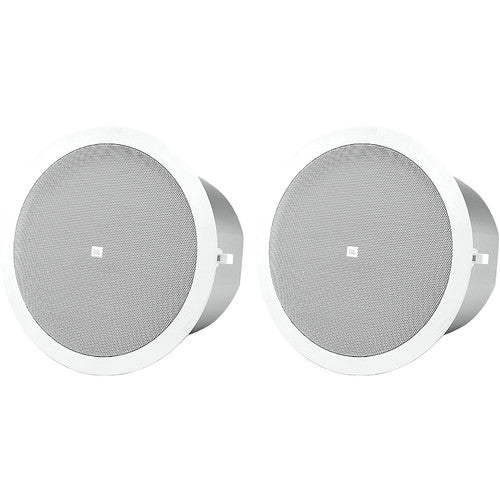

JBL Control 24C 2-Way Background / Foreground Ceiling Loudspeakers - Pair (Control24C)

The Control 24C is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.The Control 24C is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

FEATURES

• Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
• High power, wide frequency response and low distortion for high sound level capability.
• Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
• sacrificing performance.
• JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
• system reliability.
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

SPECIFICATIONS

• Frequency Range : 80 Hz - 20 kHz
• Power Rating : IEC System Long-Term Ratings (low-Z direct): | 80 Watts Continuous Program Power | 40 Watts Continuous Pink Noise (160W peak), 100 hrs
• Sensitivity : 86 dB SPL @ 1 m (3.3 ft)
• Coverage Angle : 130° conical
• Directivity Factor (Q) : 2.4 dB averaged 500 Hz to 4 kHz
• Directivity Index (DI) : 3.8 dB averaged 500 Hz to 4 kHz
• Maximum SPL (1m) : 102 dB (low-impedance, 108 dB peak)
• Impedance : 16 ohms
• Input Connectors : Removable 4-pin locking connector with screw-down terminals.
• Drivers : LF Driver: 100 mm (4.0 in) | HF Driver: 19 mm (0.75 in)
• Color : White
• Safety Agency : Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan : formed steel (included "blind-mount")
• Baffle/Rim : Medium impact polystyrene, fire rated UL94V-0
• Ceiling Cutout Size : 168 mm (6.6 in) diameter (cardboard cutout template included)
