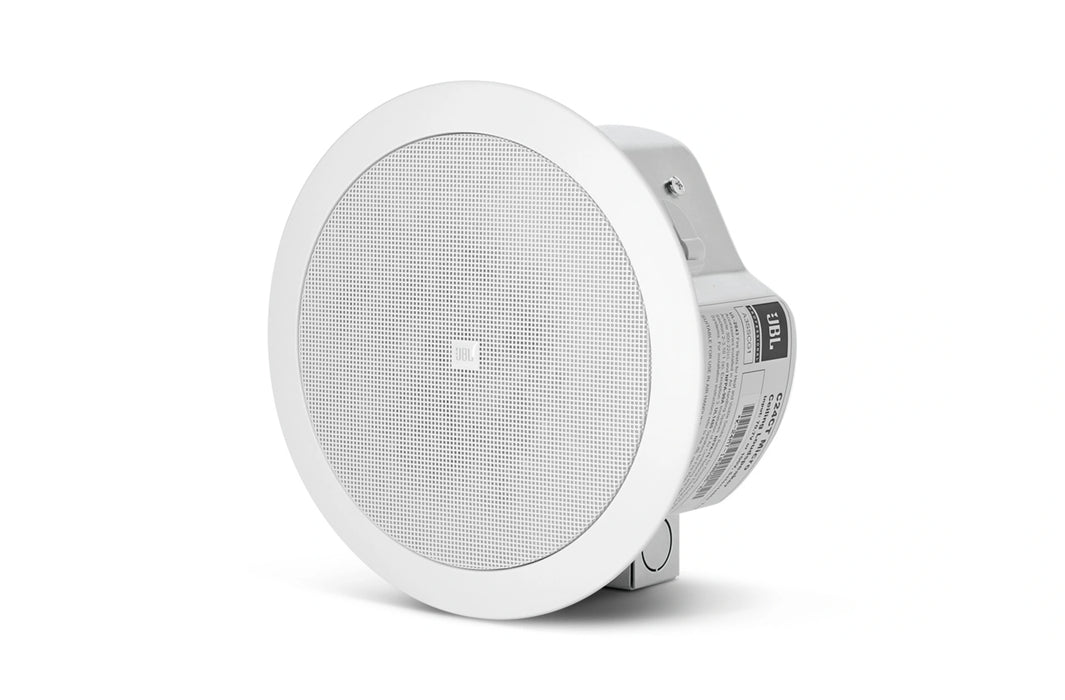

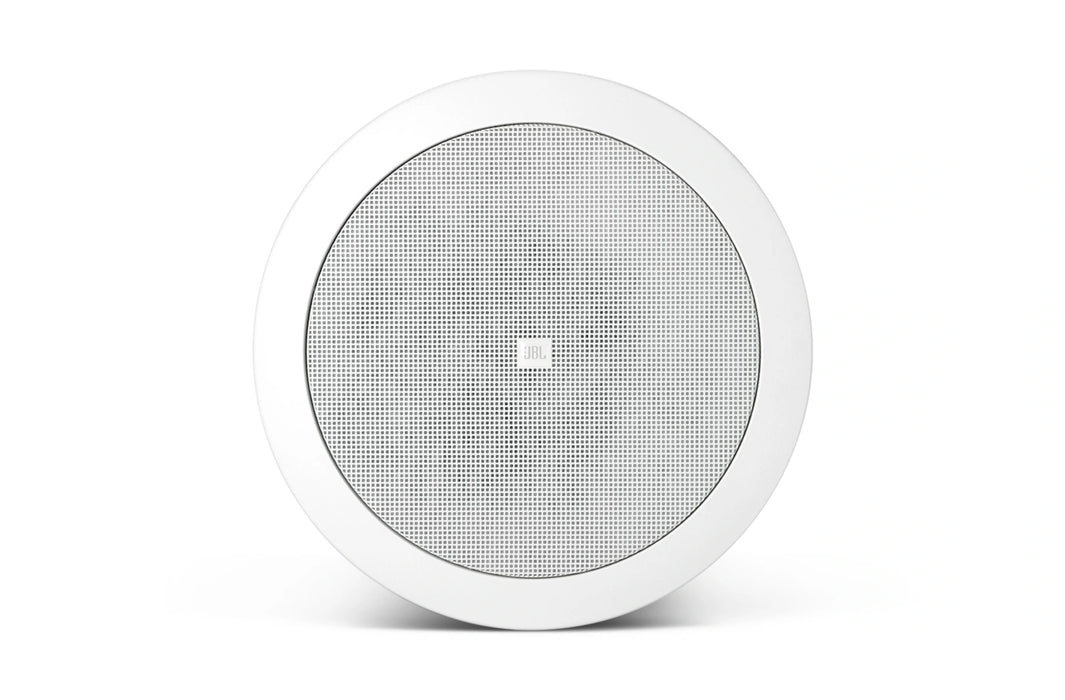

JBL Control 24C Micro 4.5" 30W Background Music Ceiling Loudspeaker - Pair (Control24C)

The Control 24C Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

FEATURES

• Extremely wide 150°coverage.
• Smooth frequency response.
• Components:

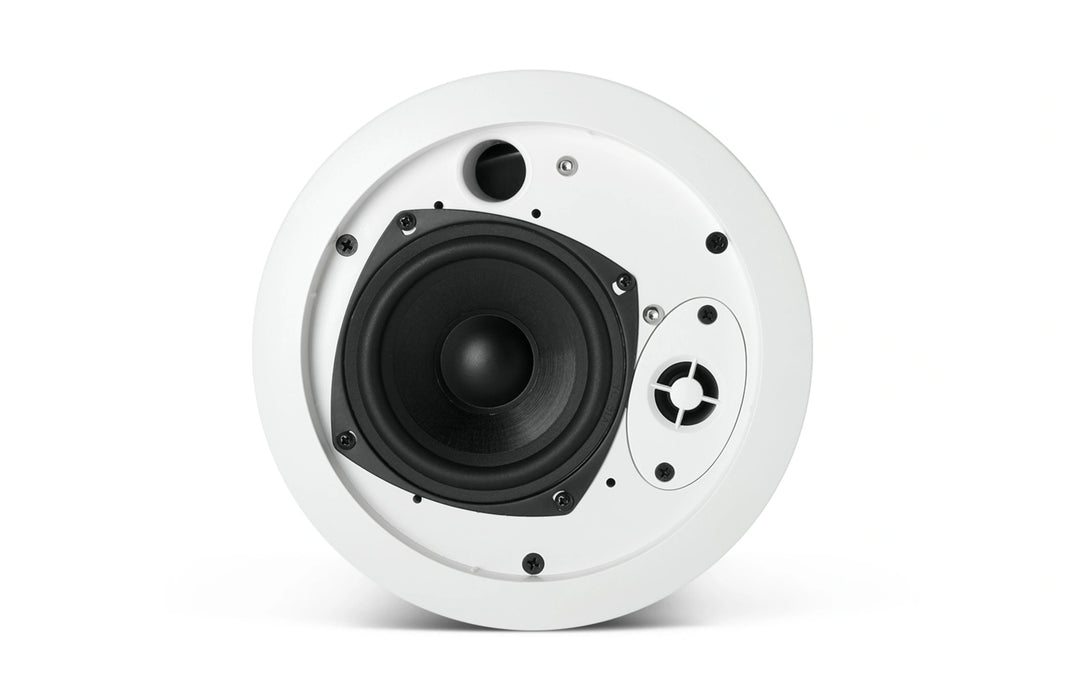

• 4.5 in (115 mm) woofer, injection molded graphite cone with butyl rubber surround.
• .5 in (12 mm) polycarbonate tweeter for extended response.
• Control 24C Micro is 8 ohms and handles 15 W.
• Shallow 4 in (100 mm) depth.
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

SPECIFICATIONS

• Frequency Range : 85 Hz - 25 kHz
• Power Rating : IEC System Long-Term Ratings (low-Z direct): | 30 Watts Continuous Program Power | 15 Watts Continuous Pink Noise (60W peak), 100 hrs
• Sensitivity : 86 dB (100 Hz - 10 kHz)
• Crossover Frequency : 3.5 kHz
• Maximum SPL (1m) : 98 dB (104 dB peak)
• Coverage Angle : 150° conical
• Impedance : 7.1 ohms
• Input Connectors : Screw-down terminals.
• Drivers : LF Driver: 115 mm (4.5 in) | HF Driver: 12 mm (0.5 in)
• Color : White
• Safety Agency : Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan : Formed steel (included "blind-mount")
• Baffle/Rim : Medium impact polystyrene, fire rated UL94V-O
• Ceiling Cutout Size : 167 mm (6.6 in) diameter (cardboard cutout template included)
• Included Accessories : C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard
