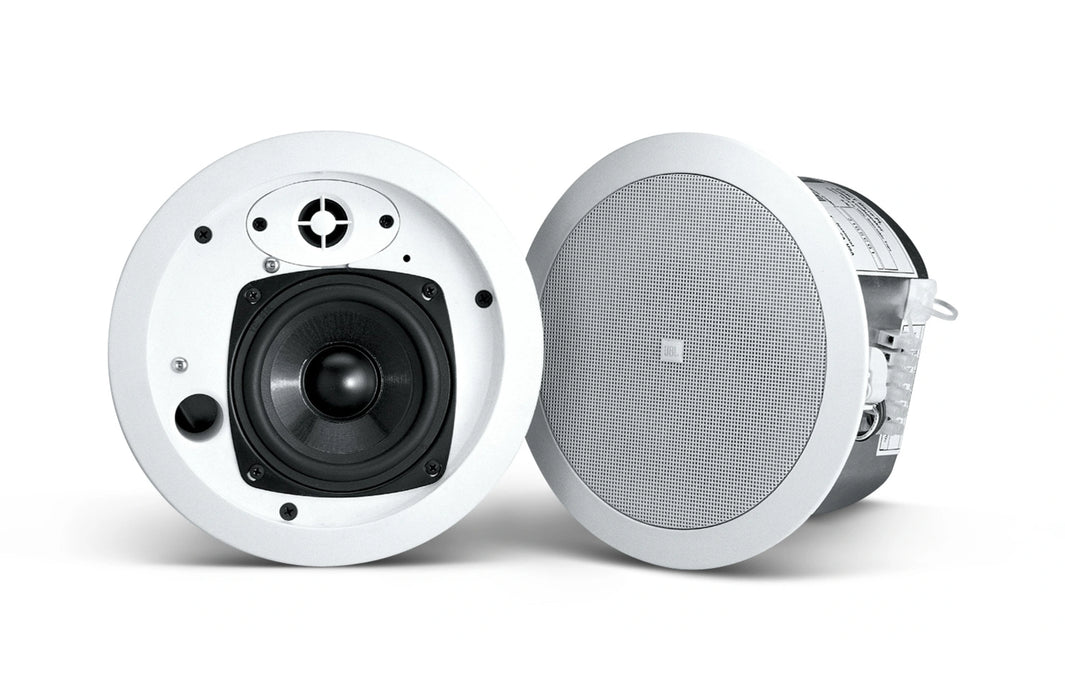

JBL Control 24CT MicroPlus 4.5" 2-Way 25W 70V/100V Ceiling Speaker - White (Pair) (Control24CT)

The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

FEATURES

• Extremely wide 150° coverage.
• Smooth frequency response.
• Advanced crossover network provides very even coverage throughout listening area.
• Components:
  115 mm (4.5 in) woofer, injection molded graphite cone with butyl rubber surround.
  12 mm (.5 in) polycarbonate tweeter for extended response.
• Includes 25 W multi-tap transformer for 70 V/100 V systems.
• Shallow 105 mm (4.1 inch) depth from back of baffle.

SPECIFICATIONS

• Frequency Range
• 80 Hz - 25 kHz
• Power Capacity
• 30 W Continuous Program Power; 15 W Continuous Pink Noise
• Transformer Taps
• 70 V: 25 W, 12 W, 6 W taps100 V: 25 W, 12 W taps
• Nominal Sensitivity
• 85 dB SPL @ 1 m (3.3 ft)
• Crossover Frequency
• 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
• Maximum SPL (1m)
• 99 dB @ 1 m (3.3 ft), 25 W tap
• Low Frequency
• 115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil
• High Frequency
• 12 mm (0.5 in) polycarbonate
