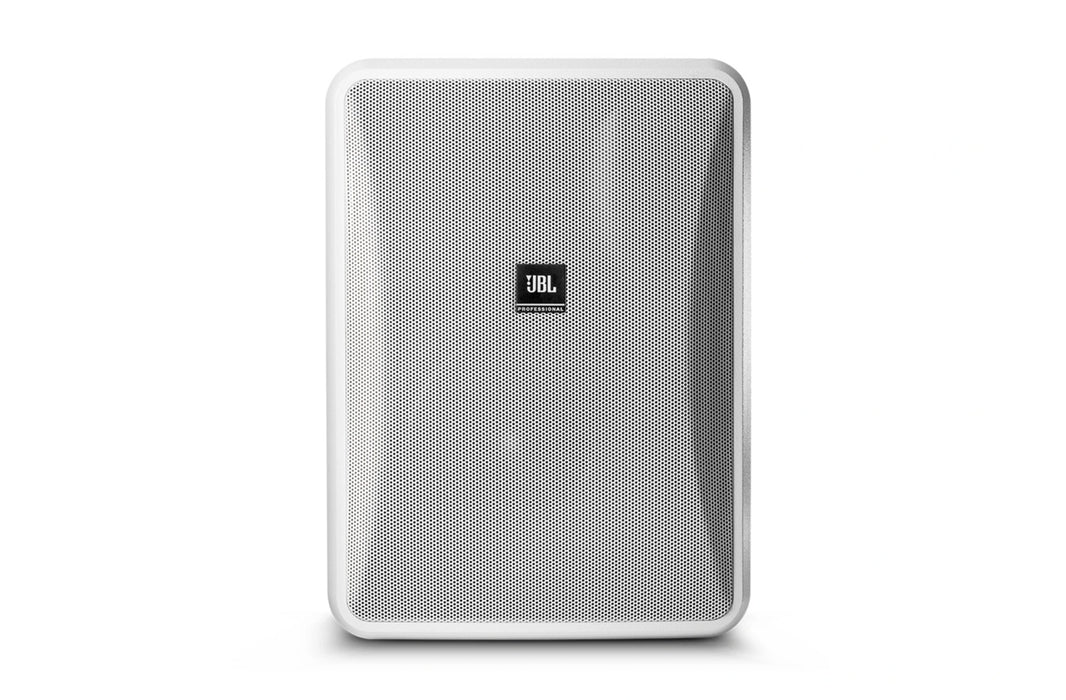

JBL Control 28-1L High Output Indoor/Outdoor Background/Foreground Speaker - White (Control281L)

The Control® 28-1L is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors, This makes Control 28-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

FEATURES

• 8” woofer with woven fiberglass cone
• 1” PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall® mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100° x 100° coverage
• 120 Watt power handling (240 Watt program)
• High fidelity sound character with broad frequency response of 45 Hz – 20 kHz.

SPECIFICATIONS

• Frequency Range (-10dB) : 45 Hz to 20 kHz
• Frequency Response (±3 dB) : 62Hz - 16 kHz
• Power Rating : 240 W Continuous Program (2 hrs) *Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor. Continuous Program Power is defined as 3 dB above the Continuous Pink Noise Rating and is conservative expression of the system’s ability to handle normal speech and music program material.
• Maximum Input Voltage : 27.5 V RMS (2 hrs), 55.0 V peak
• Maximum SPL (1m) : 112 dB ave. Continuous Pink Noise (118 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression.
• Sensitivity : 91 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V.
• Coverage Angle : 100° x 100° *Coverage angle (-6 dB) average between 600 Hz and 12 kHz.
• Directivity Factor (Q) : 7.3 (averaged 1kHz – 16kHz)
• Impedance : 8 ohms
• Crossover Type : 2nd order low-pass, 1st order high-pass, plus conjugate shaping
• Recommended Protective High-Pass : 45 Hz high-pass (24 dB/oct) *For protection against driving below resonant frequency and to keep transformer out of saturation.
• Drivers : LF: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure. | HF: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
• Enclosure : High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
• Grille : Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
• Mounting Hardware : InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
• Outdoor Capability : IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
• Input Connectors : Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
• Safety Agency : ROHS-compliant
• Colors : Black (RAL9004) or white (-WH, RAL9016)
• Dimensions (H x W x D) : 386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation
• Net Weight (each) : 6.2 kg (13.5 lbs)
• Shipping Weight : 13.4 kg (29.5 lbs) pair-packed (for 2 speakers)
• Included Accessories : InvisiBall™ wall-mounting system, 6 mm x 180 mm hex key
