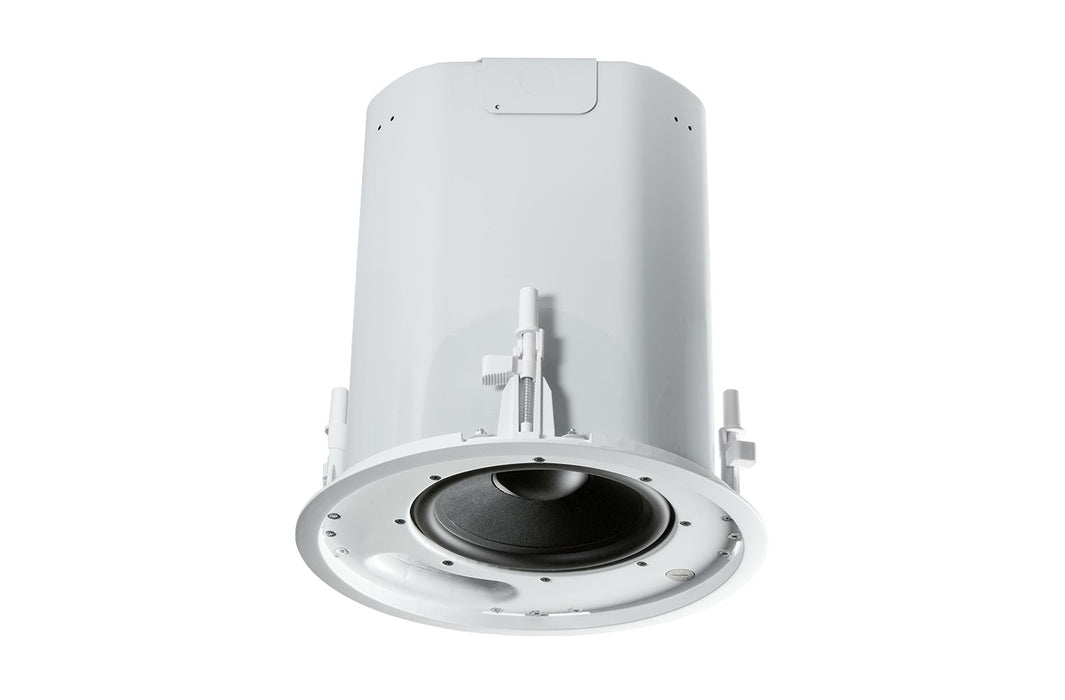

JBL Control 40CS/T High-Impact In-Ceiling Subwoofer (Control40CS/T)

The Control 40CS/T is a direct radiating, high impact, 8" subwoofer with a built-in passive crossover network enabling the Control 40CS/T to be used as part of a subwoofer-satellite system. When combined with the Control 42, the Control 40CS/T offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact. The system can also be used via an active crossover design with the rest of the Control Contractor in-ceiling line for superior bass response and can be operated off a 70V / 100V distributed line or in direct mode.

FEATURES

• Extended Bass Response with Maximum Impact
• Passive Crossover Network for Easy to Install Subwoofer-Satellite Systems
• Switchable 70V/100V or Low-Z
• Elegant design fits any décor

SPECIFICATIONS

• Frequency Range : 32 Hz - 300 Hz
• Power Rating : IEC System Long-Term Ratings (low-Z direct): | 200 Watts Continuous Program Power | 100 Watts Continuous Pink Noise(400W peak), 100 hr
• Sensitivity : 95 dB (near corner), 89 dB (center of ceiling)
• Transformer Taps : 80W, 40W, 20W (& 10W at 70V only)
• Impedance : 8 ohms (in bypass mode)
• Drivers : 200 mm (8 in) subwoofer
• Termination : Screw-down removable locking clip-in connector
• Satellite Outputs : Connectors for 2 or 4 Control 42C satellite speakers
• Included Accessories : C-rings, tile rails, paint shield, cutout template, grille
• Dimensions (Diameter x Depth) : 332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in)
• Transformer Taps : 80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass
• Maximum SPL (1m) : 109 dB (low-impedance, 115 dB peak, center of ceiling) | 115 dB (low-impedance, 121 dB peak near corner) | 108 dB (70V/100V, center of ceiling) | 114 dB (70V/100V near corner)
• Input Connectors : 6 removeable locking 2-pin connectors with screwdown terminals.
• Color : White
• Safety Agency : Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan : formed steel (included "blind-mount")
• Baffle/Rim : ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
• Ceiling Cutout Size : 307 mm Diameter (12.1 in) (cardboard cutout template included)
• Optional Accessories : MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket
