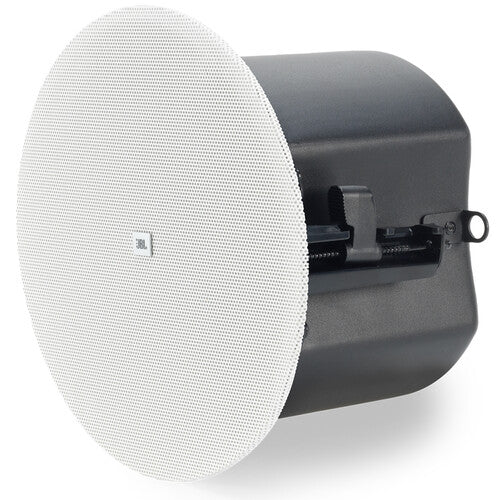

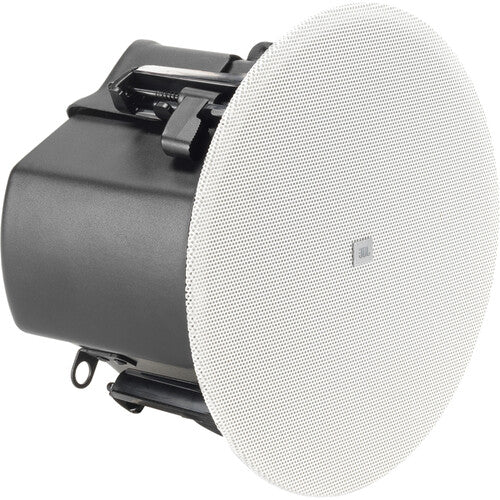

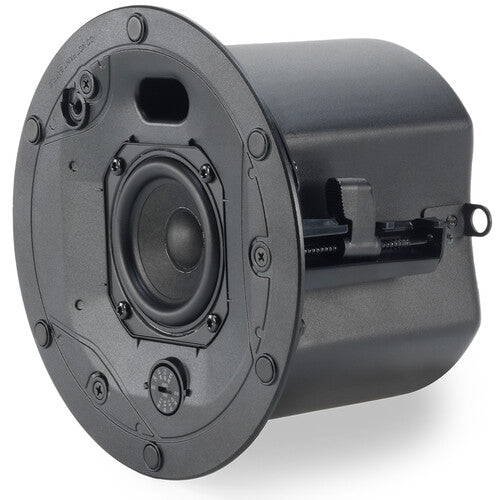

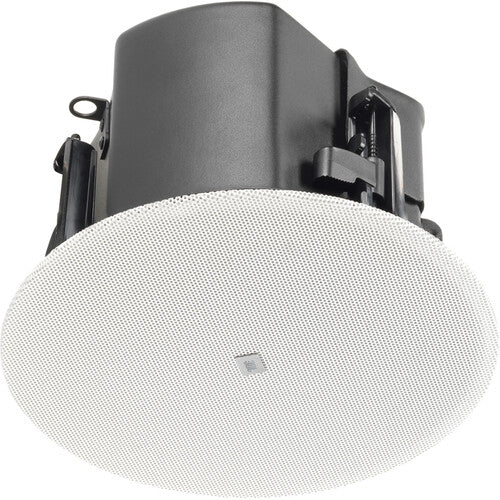

JBL Control 412C/T 3" Full-Range Ceiling Loudspeaker

The JBL Control 412C/T, part of the Control 400 Standard Coverage Series, is a full-range ceiling loudspeaker, featuring a 3” driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 412C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 412C/T supports both 70V/100V and low impedance applications.

SPECIFICATIONS

• Frequency Range (-10 dB)
  68Hz - 17kHz
• Power Capacity
  30W (120W Peak) Cont. Pink Noise (2 hrs) ; 20W (80W Peak) Cont. Pink Noise (100 hrs)
• Sensitivity (1m/1W)
  84dB
• Coverage Angle
  160° conical
• Maximum SPL (1m)
  99 dB continuous pink noise (105 dB peak)
  Nominal Impedance
  8Ω
  Transformer Taps
  70 V = 15 W, 7.5 W, 3.8 W & 1.9 W ; 100 V = 15 W, 7.5 W, 3.8 W
  Drivers
  76 mm (3 in) full range driver with paper cone and SBR surround
  Safety Agency Rating
  Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
  Environmental
  IP rating = IP33 per EN/IEC 60529. Operating temperature = 0° C to 45 °C.
  Optional Accessories
  JBL-MTC-414BG black (RAL9004) round grille ; JBL-MTC-414SG white (RAL9003) square grille ; JBL-MTC-414WG white (RAL9003) weather grille ; JBL-MTC-424NC new construction bracket ; JBL-MTC-424MR mud-ring construction bracket ; JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
  Color
  Stock grille is White (RAL9003), paintable
  Dimensions
  Ceiling Cutout Size
  168 mm (6.6 in)
  Dimensions
  143 mm (5.7 in) H x 203 mm (8.1 in) dia. ; 134 mm (5.4 in) from bottom of ceiling tile to top of backcan
  Net Weight (ea)
  1.75 kg (3.86 lbs)
  Shipping Weight (pair)
  7.92 kg (17.46 lbs)
