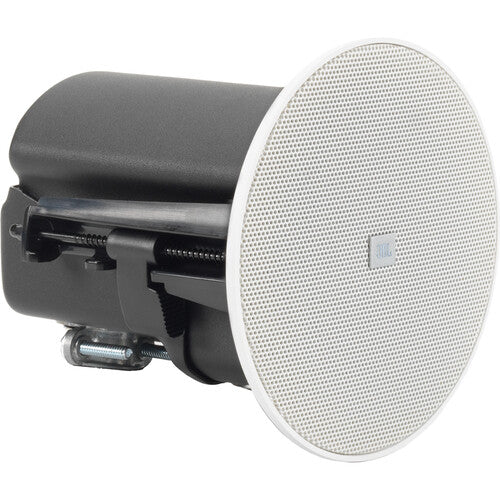

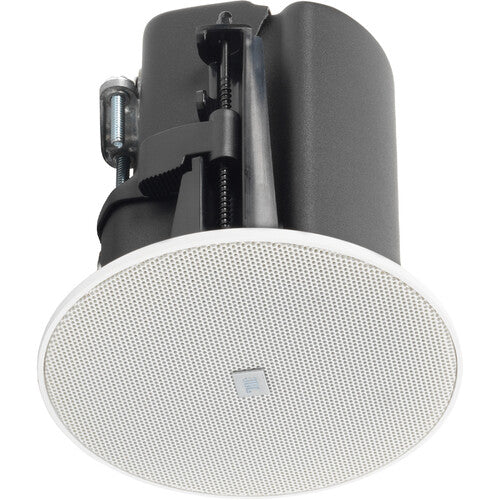

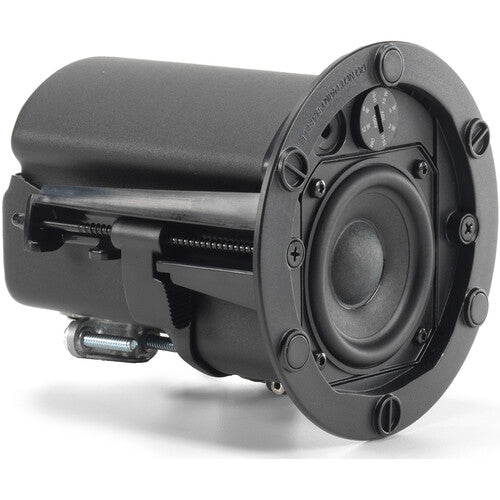

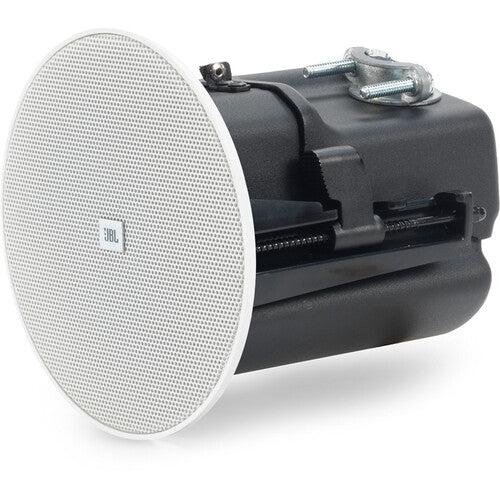

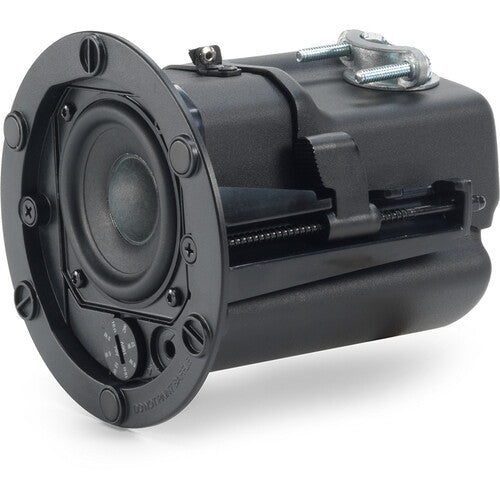

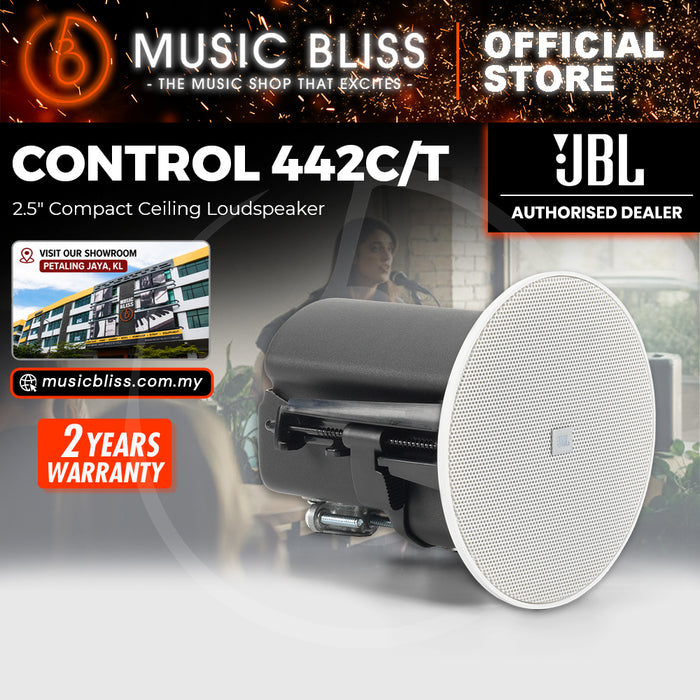

JBL Control 442C/T 2.5" Compact Ceiling Loudspeaker

The JBL Control 442C/T, part of the flagship Control 400 Premium Coverage Series, is a compact ceiling loudspeaker, featuring a 2.5” driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.

All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 442C/T supports both 70V/100V and low impedance applications.

FEATURES

• 63.5 mm (2.5 in) driver
• Integrated enclosure that is ideal for installation in most ceiling plenum spaces

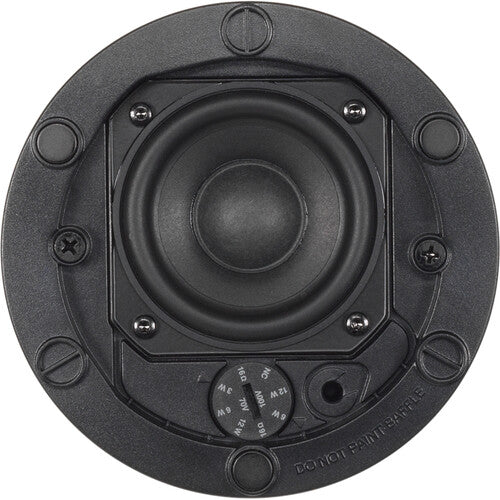

• Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input
• Full-face, easily paintable magnetic grilles

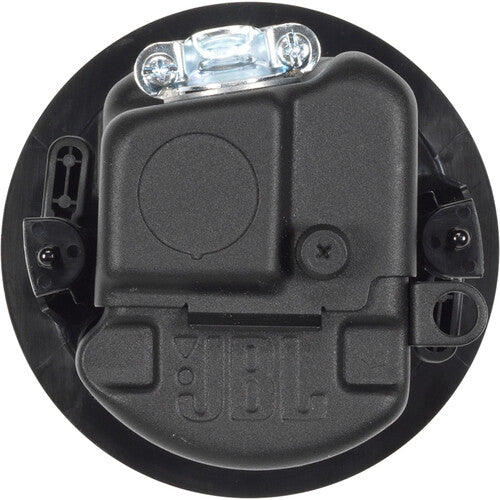

• Top and side cable entry options

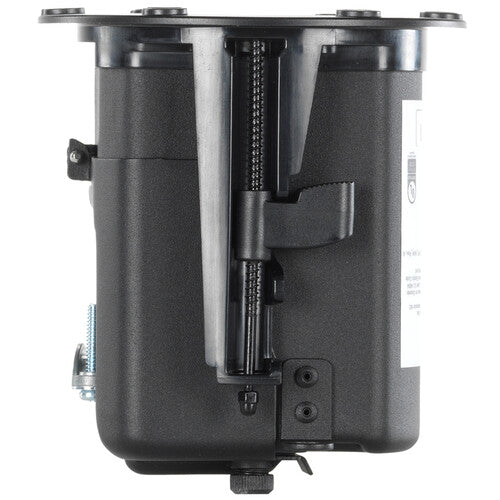

• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated

SPECIFICATIONS

• Frequency Range (-10 dB)
  130Hz - 20kHz
• Power Capacity
  22.5 W (90 W Peak), Cont. Pink Noise (2 hrs.)
  15 W (60 W Peak) Cont. Pink Noise Power (100 hrs.)
• Sensitivity (1m/1W)
  86dB
• Coverage Angle
  160° conical
• Maximum SPL (1m)
  99.5 dB Cont. pink noise (105.5 dB peak)
• Nominal Impedance
  16Ω
• Transformer Taps
  70 V: 12 W, 6 W & 3 W
  100 V: 12 W, 6 W
• Drivers
  60 mm (2.5 in) Full Range driver with paper cone, Rubber surround, CCAW coil
• Ceiling Cutout Size
  104 mm (4.1 in)
• Dimensions
  138 mm (5.4 in) H x 131 mm (5.2 in) dia.
  129 mm (5.1 in) from bottom of ceiling tile to top of backcan
• Safety Agency Rating
  Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental
  IP rating: IP33 per EN/IEC 60529.
  Operating temperature: 0° C to 45 °C.
• Optional Accessories
  JBL-MTC-442BG black (RAL9004) round grille
  JBL-MTC-442SG white (RAL9003) square grille
  JBL-MTC-442NC new construction bracket
  JBL-MTC-442MR mud-ring construction bracket
  JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
• Color
  Stock grille is White (RAL9003), paintable
• Net Weight (ea)
  1.1 kg (2.43 lbs)
• Shipping Weight (pair)
  3.22 kg (7.1 lbs)
